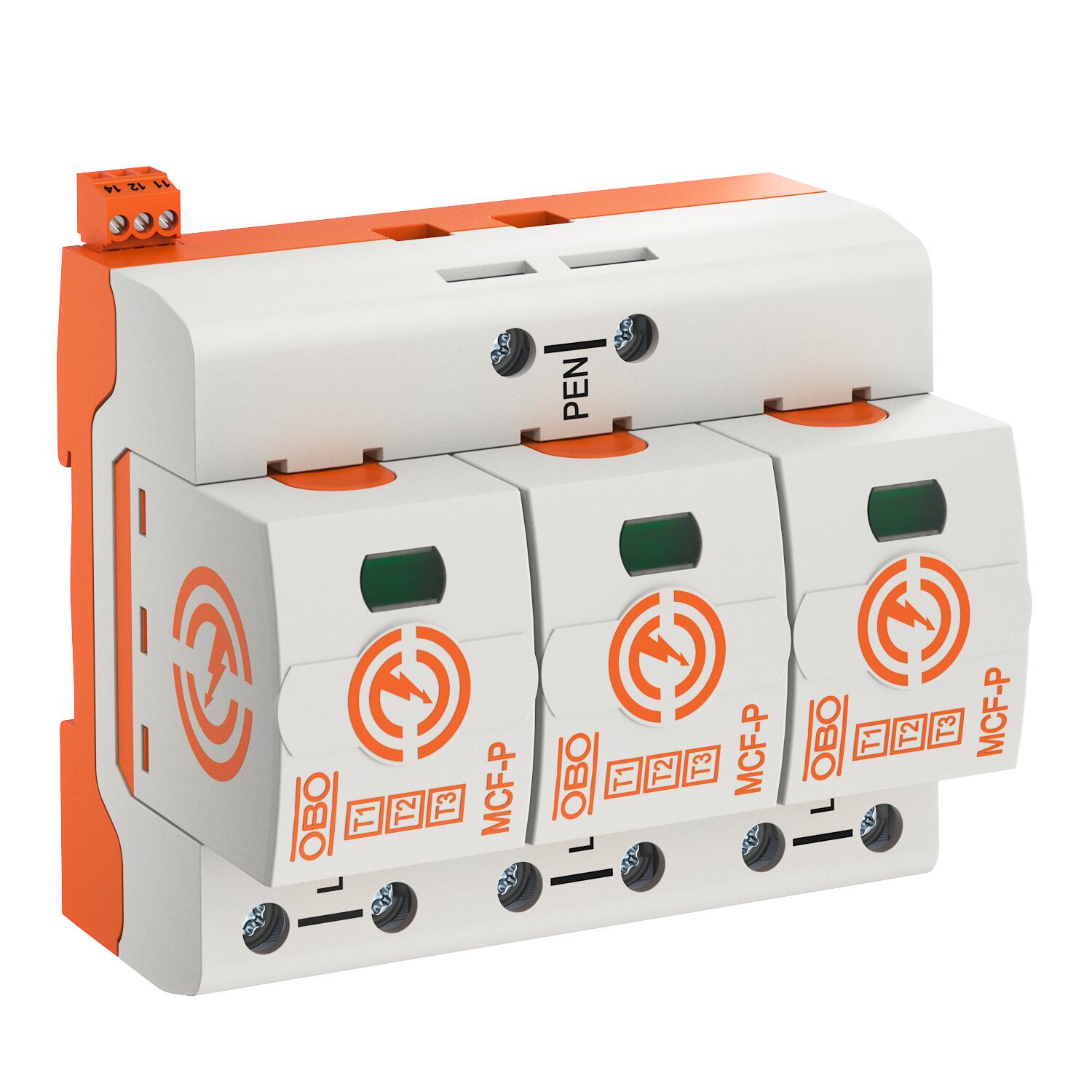

Lightning current arrester MCF-P, 3-pole with RS
Item no. 5096946 | EAN 4012197505172
- Product description
-
Product descriptionLightning current arrester, type 1+2+3
• Lightning current discharge capacity of 35 kA (10/350) per pole
• Protection level < 1.5 kV
• Lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305)
• Follow current quenching Ifi 50 kA
• Complies with the requirements for the use in the pre-meter area according to VDE-AR-N 4100
• Including potential-free changeover contact for remote signalling
Application: industrial plants and buildings with external lightning protection of the classes I to IV.
* Complete = Plug-in arrester and base
-

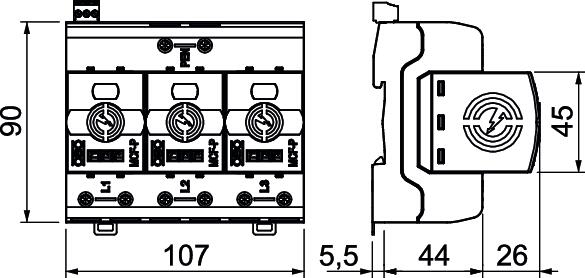

- Technical data
-
Technical data
Blow-out no CO2 Footprint (GWP) Cradle-to-Gate 2,6577 kg CO2e / 1 Piece Conductor cross-section, flexible (fine-wire), max. 2 AWG Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), min. 1,5 mm² Conductor cross-section, flexible (fine-wire), min. 16 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Connection cross-section, FM terminals, max. 1,5 mm² Connection cross-section, FM terminals, max. 16 AWG Connection cross-section, FM terminals, min. 26 AWG Connection cross-section, FM terminals, min. 0,14 mm² DC network form no Dimension 255V FM contacts Changeover Height 90 mm Humidity, max. 95 % Humidity, min. 5 % Installation type DIN rail 35 mm Integrated back-up fuse no IT network form no Length 70 mm Lightning surge current (10/350 μs) 35 kA Lightning surge current (10/350) 105 kA Max. mains-side overcurrent protection 315 A gL/gG Maximum back-up fuse 315 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) [L-N] 50 kA Network form TN-C Nominal discharge current (8/20 µs) 35 kA Nominal discharge current (8/20 µs) [L-N] 35 kA Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 125 A Other network form no Permitted temperature range, max. 70 °C Permitted temperature range, min. -40 °C Pole version 3 Protection level [L-N] ≤1,5 Protection rating IP20 Remote signalling yes Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Suitable for outdoor use no Switching power AC 250 V / 2 A Switching power DC 250 V / 0,1 A Test class, type 1 yes TN network form no TN-C network form yes TN-C-S network form no TN-S network form no Torque 5 Nm TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 440 V TOV voltage [L-N] ‒ withstand mode ‒ 5 s 345 V TT network form no Width 108 mm - All types
- Downloads
-
Mounting instructions Lightning current arrester MCF-P series , 1.19MB , pdf
