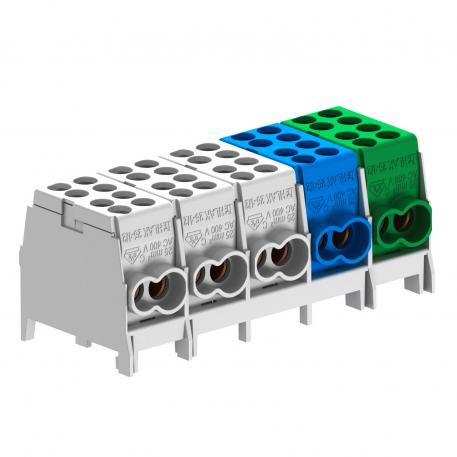

Main branch terminal, 5-pole
Item no. 2009036 | EAN 4012196614332
- Product description
-
Product description5-pin main terminal block, 2 x 16 mm² + 2 x 25 mm² conductor connection cross-sections per pin. With 2 screws per terminal for secure contact pressure. High-resistance quick-action fastening made of galvanised sheet steel for simple mounting on support rails.
Terminal covers are available in the standard conductor colours.
-

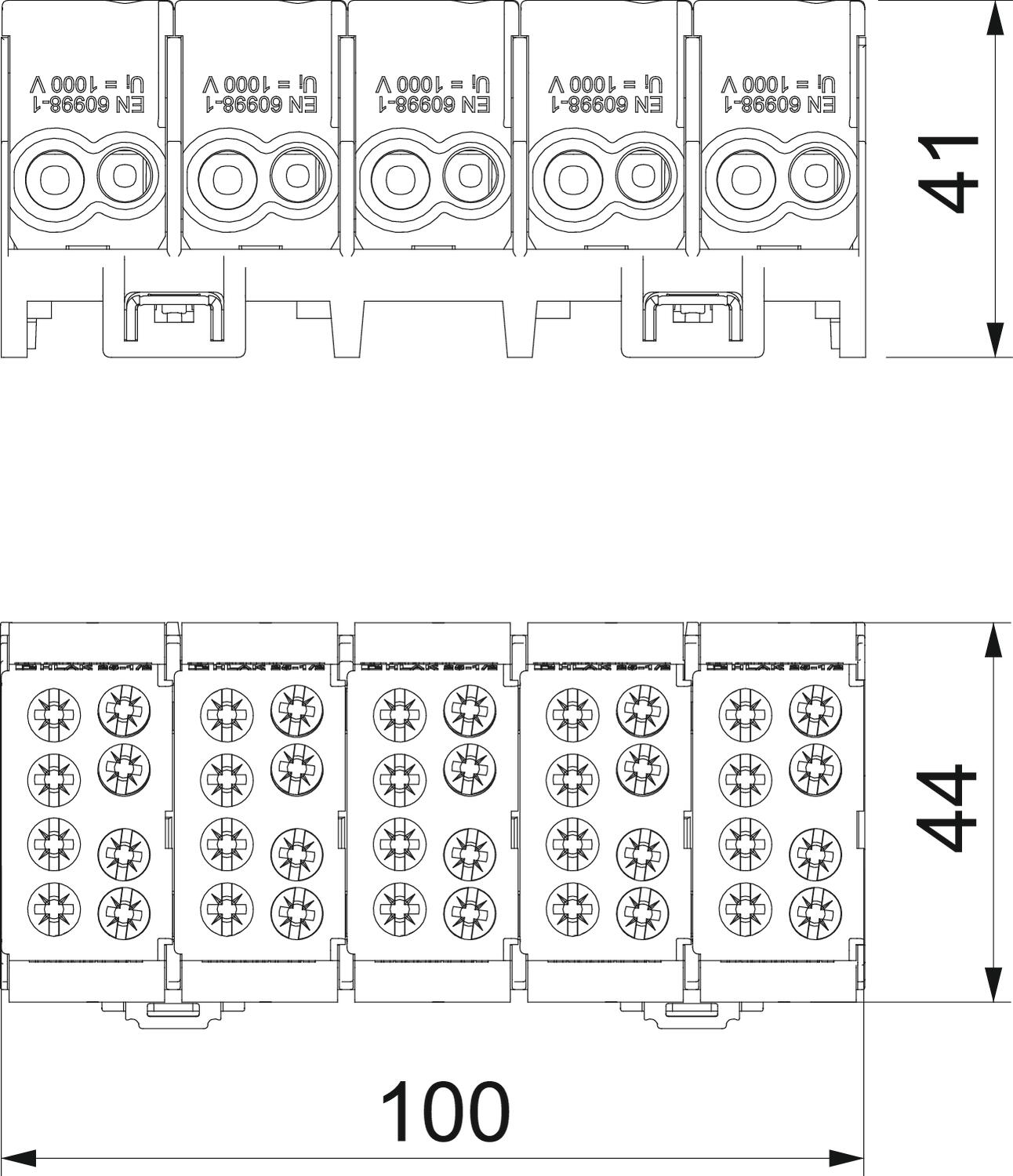

- Technical data
-
Technical data
Ambient temperature 40 °C CO2 Footprint (GWP) Cradle-to-Gate 0,0717 kg CO2e / 1 Piece Connectable conductor cross-section, fine-wire with wire-end ferrule, max. 16 mm² Connectable conductor cross-section, fine-wire with wire-end ferrule, min. 1,5 mm² Connectable conductor cross-section, multi-wire, max. 25 mm² Connectable conductor cross-section, multi-wire, min. 16 mm² Connectable conductor cross-section, single-wire, max. 25 mm² Connectable conductor cross-section, single-wire, min. 1,5 mm² Connection cross-section, multi-wire, max. 25 mm² Connection cross-section, multi-wire, min. 16 mm² Connection position Top/bottom Connection type Bolts Dimension 16/25mm² Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C Halogen-free yes Height 35 mm Impact-resistant yes Insulation material Thermoplast Length 100 mm Max. Cable cross-section 25 mm² Max. Conductor cross-section 25 mm² Max. Measuring operating current Ie 130 A No. of terminals 20 Nominal cross-section, min. 25 mm² Nominal current 130 A Nominal voltage 960 V Number of screwless terminals per pole 4 Permitted temperature range, max. 70 °C Permitted temperature range, min. -25 °C Pole number 5 ROHS-conformant yes Suitable for flexible conductors no Suitable for multi-wire conductors yes Suitable for ribbon conductor connection no Suitable for round cable connection yes Suitable for sector conductor connection yes Suitable for solid conductors yes Transparent no VDE-tested yes Width 47 mm With actuating levers no - All types
