Mini trunking with adhesive film and hinge cover MD12 2000 | 12.5 | 12.5 | Cream; RAL 9001
morepic-1 morepic-2

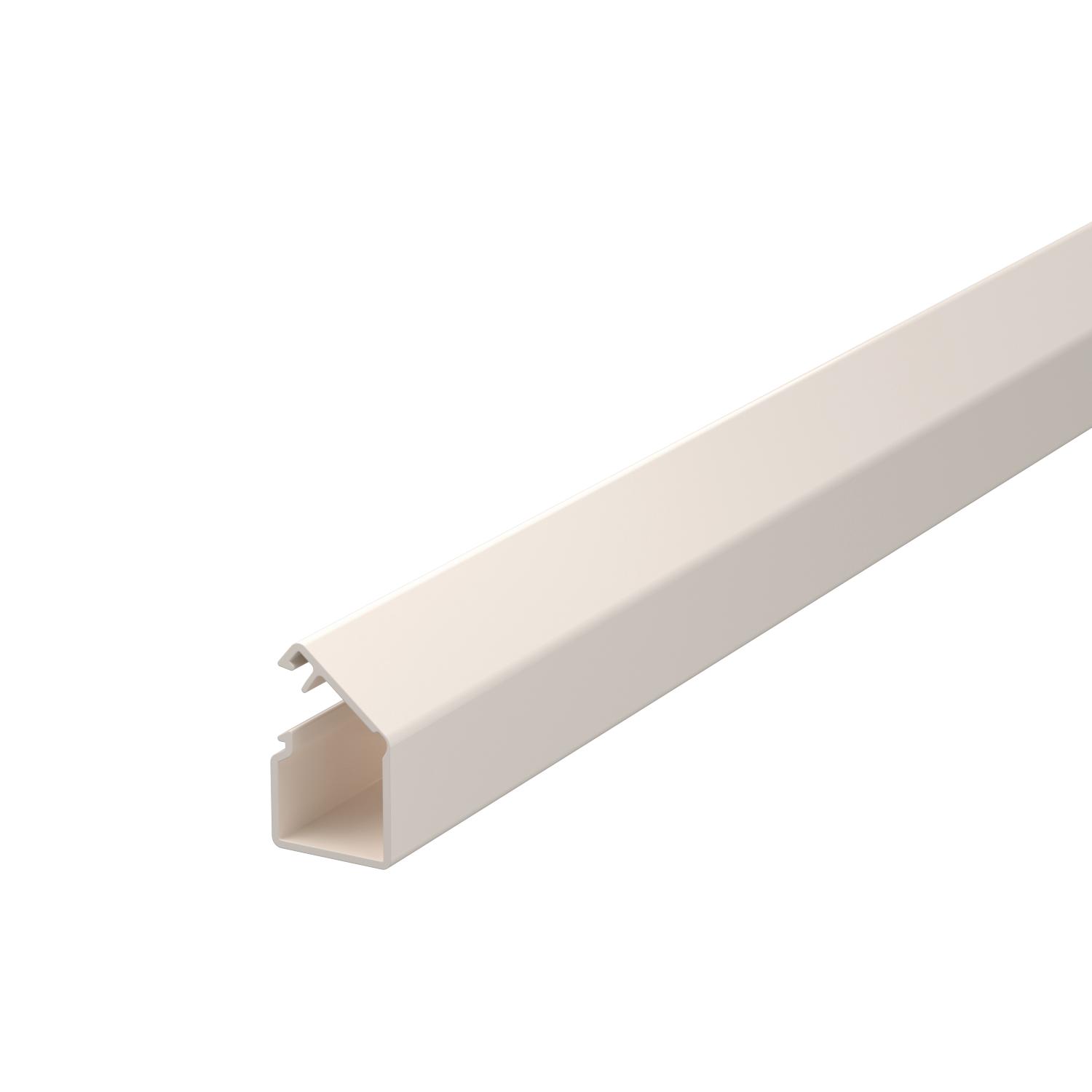

Mini trunking with adhesive film and hinge cover MD12

Item no. 6150179 | EAN 4012196097692

2000 mm
12.5 mm
12.5 mm
Product description
Product description
Mini trunking with adhesive film and hinged cover.
Pulling off the film on the base allows the WDK trunking to be stuck directly on the wall.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK-MD mini trunking with hinged cover
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,1138 kg CO2e / 1 Meter
Colour Cream; RAL 9001
Delivery on a roll no
Dimension 12x12x2000
Duct connector no
Fastening type Self-adhesive
Halogen-free no
Height 12,5 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Protective film no
Usable cross-section 103 mm²
Version, cable trunking cover With film hinge
Width 12,5 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
WDKMD12CW 2000 mm 12.5 mm 12.5 mm Cream; RAL 9001 6150179
2 m
WDKMD12RW 2000 mm 12.5 mm 12.5 mm Pure white; RAL 9010 6150284
2 m
Downloads

Download
Download

Download

EU declaration of conformity WDKMD12CW / 6150179 , 0.10MB , pdf
Download
UK Declaration of Conformity WDKMD12CW / 6150179 , 0.09MB , pdf
Download

Download
Download

Download
Download

No invitation to tender text is available for this product.
