Mini trunking with adhesive film and hinge cover MD17 2000 | 17 | 17 | Cream; RAL 9001
morepic-1 morepic-2

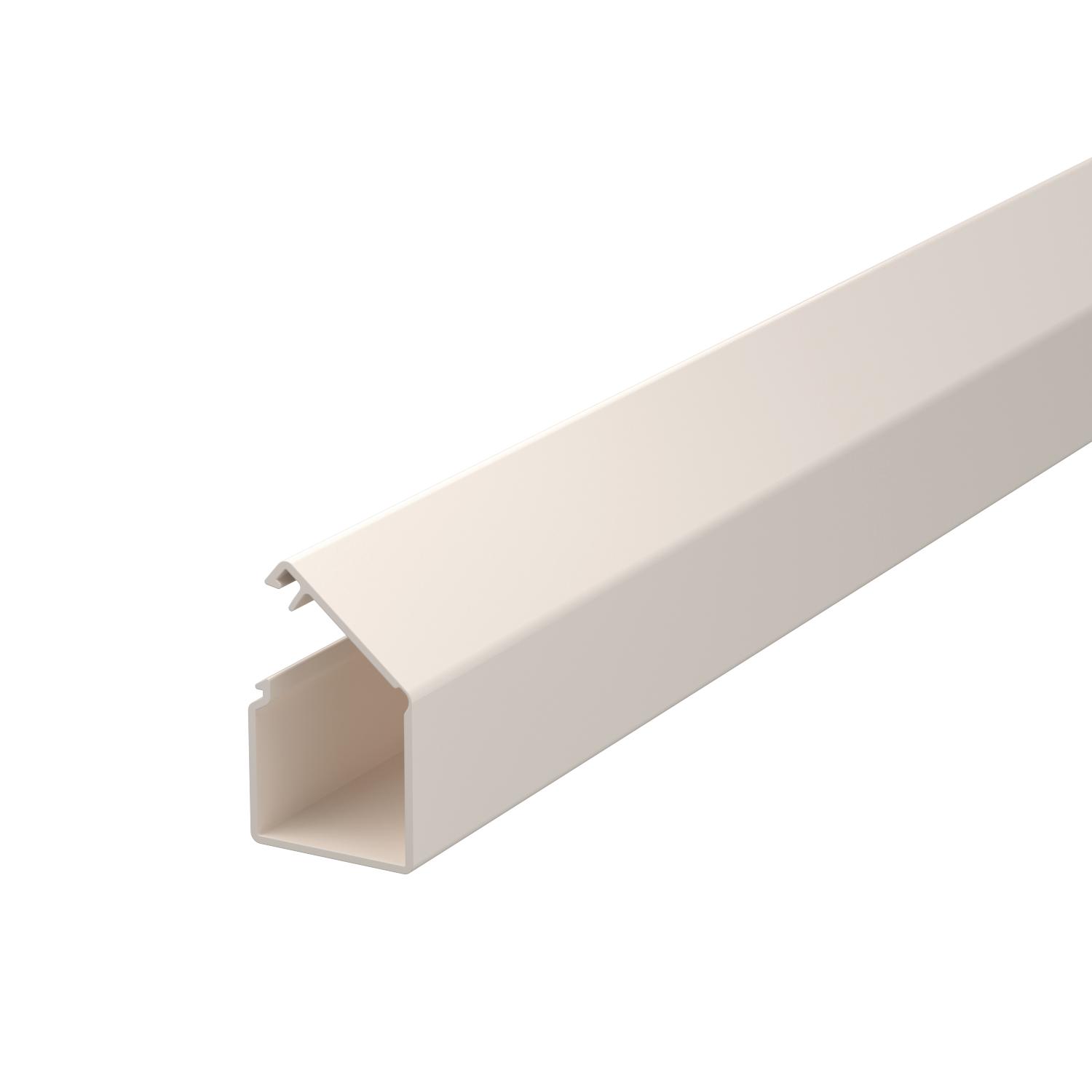

Mini trunking with adhesive film and hinge cover MD17

Item no. 6150187 | EAN 4012196097753

2000 mm
17 mm
17 mm
Product description
Product description
Mini trunking with adhesive film and hinged cover.
Pulling off the film on the base allows the WDK trunking to be stuck directly on the wall.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK-MD mini trunking with hinged cover
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,1732 kg CO2e / 1 Meter
Colour Cream; RAL 9001
Delivery on a roll no
Dimension 17x17x2000
Duct connector no
Fastening type Self-adhesive
Halogen-free no
Height 17 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Protective film no
Usable cross-section 223 mm²
Version, cable trunking cover With film hinge
Width 17 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
WDKMD17CW 2000 mm 17 mm 17 mm Cream; RAL 9001 6150187
2 m
WDKMD17RW 2000 mm 17 mm 17 mm Pure white; RAL 9010 6150292
2 m
