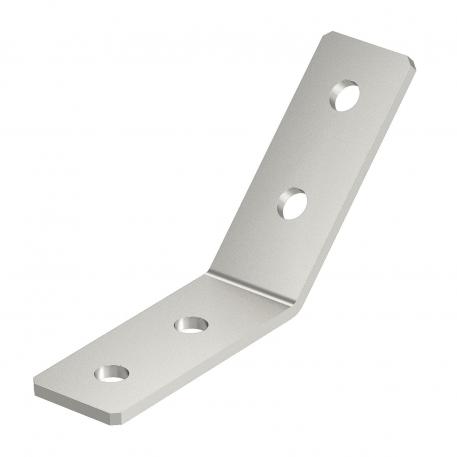

Mounting bracket, 45° with 4 holes A4
Item no. 1124749 | EAN 4012195805281
- Product description
-
Product descriptionMounting bracket with four holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 45°.
-
- Technical data
-
Technical data

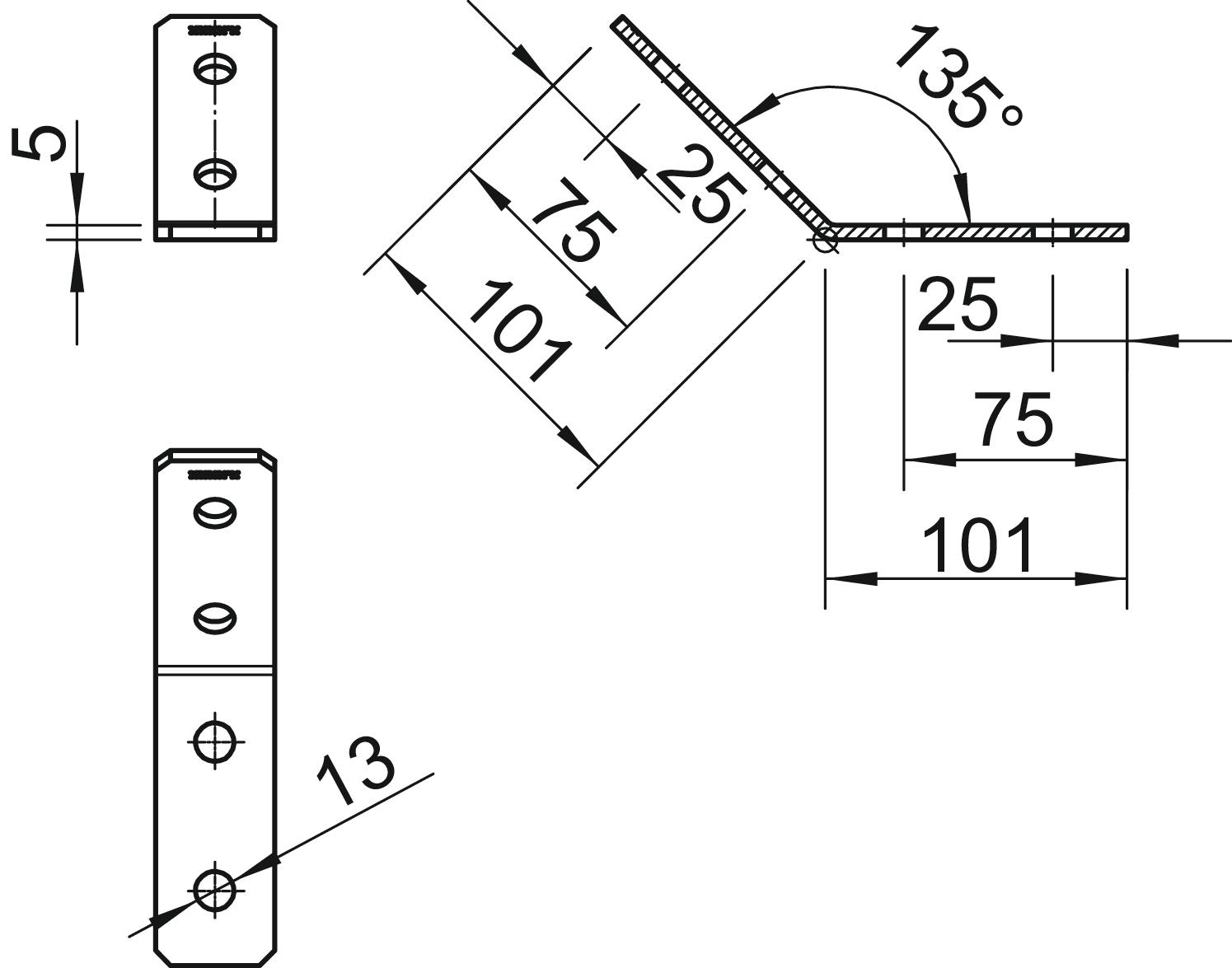

CO2 Footprint (GWP) Cradle-to-Gate 1,589 kg CO2e / 1 Piece Dimension 101x101x40x4 Height 101 mm Hole size 13 Length 101 mm Material Stainless steel 1.4571 Material thickness 4 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Bright, treated Version for 45° angle Width 40 mm With screw accessories no - All types
- Downloads
-
Data sheet GMS 4 VW 45 A4 / 1124749 , 0.19MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity GMS 4 VW 45 A4 / 1124749 , 0.04MB , pdfREACH Declaration of conformity GMS 4 VW 45 A4 / 1124749 , 0.12MB , pdfRoHS Declaration of conformity GMS 4 VW 45 A4 / 1124749 , 0.12MB , pdf
