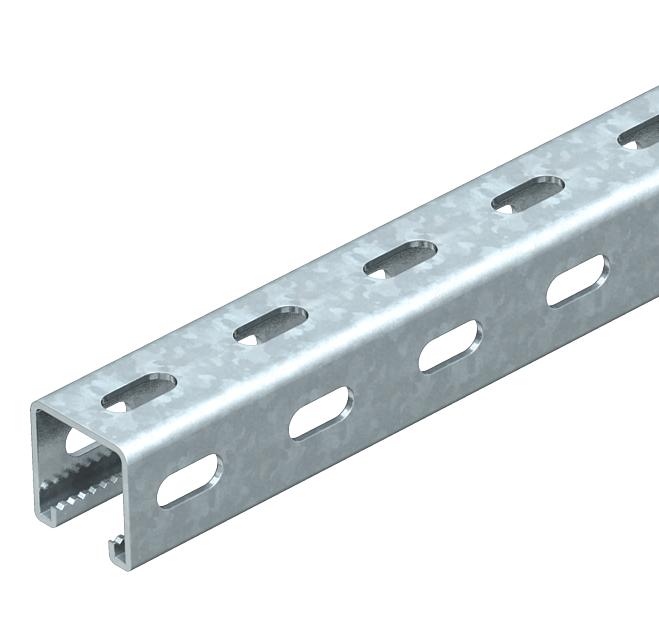

MS4141PP mounting rail, slot 22 mm, FT, perforated
Item no. 1122500 | EAN 4012195356325
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data
Breakable no CO2 Footprint (GWP) Cradle-to-Gate 1,6882 kg CO2e / 1 Piece Dimension 300x41x41 Dimension L 300 mm Drill hole spacing, centre 50 mm Height 41 mm Hole size 11x25 mm Length 300 mm Maintain electrical functions yes Material Steel Material thickness 2,5 mm Profile shape C profile Slot width 22 mm Static value A 2,42 cm² Static value ly 6 cm⁴ Static value lz 6,97 cm⁴ Static value Wy 2,49 cm³ Static value Wz 2,88 cm³ Surface Hot-dip galvanised Type of perforation 3 sides perforated Version for Single profile Width 41 mm With perforation yes With toothing yes - All types
- Downloads
-
Data sheet MS4141PP0300FT / 1122500 , 0.22MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity MS4141PP0300FT / 1122500 , 0.10MB , pdfUK Declaration of Conformity MS4141PP0300FT / 1122500 , 0.09MB , pdfREACH Declaration of conformity MS4141PP0300FT / 1122500 , 0.12MB , pdfRoHS Declaration of conformity MS4141PP0300FT / 1122500 , 0.12MB , pdf
