Profile rail CL2712, slot 12 mm, BK, unperforated

Item no. 1109014 | EAN 4012195041412

Item no. / Types

Length	2000 mm

Width	27 mm

Height	12.5 mm

Material thickness	2 mm

Material	Steel

Surface

Product description

Product description

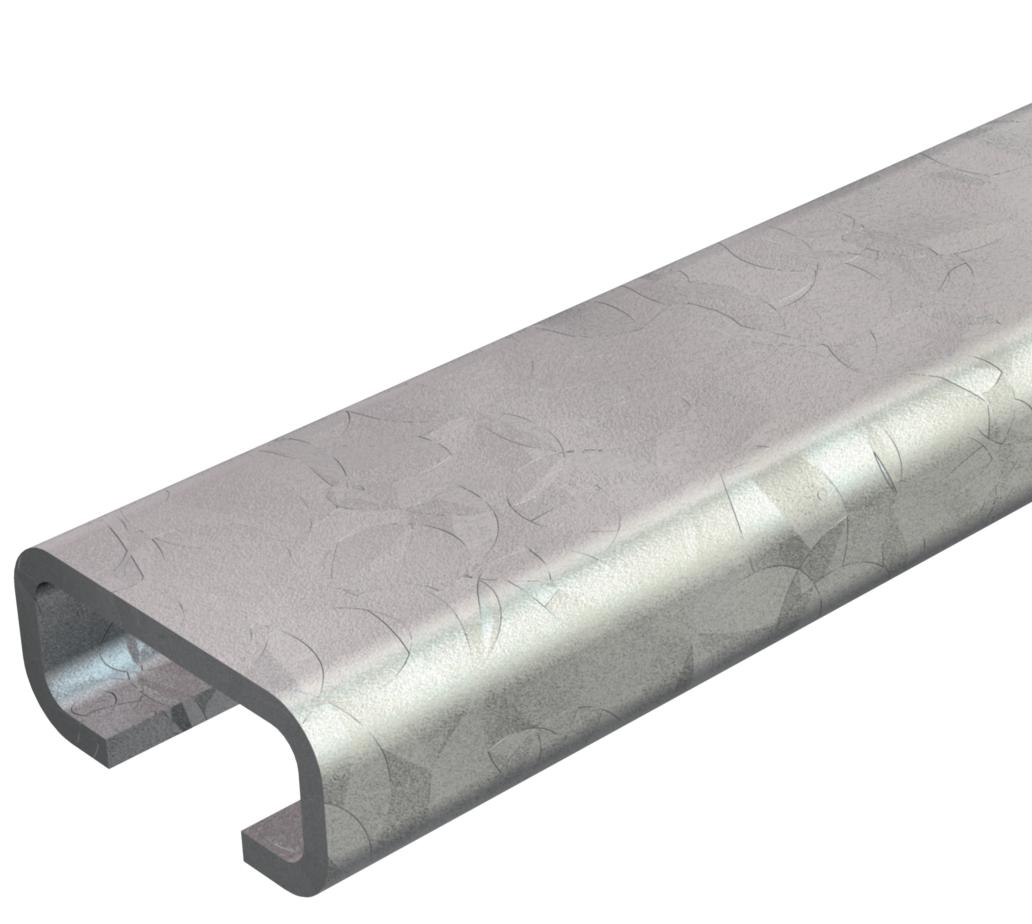

Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.

Technical data

Technical data

Breakable	no
Bundle	20 m
CO2 Footprint (GWP) Cradle-to-Gate	1,5815 kg CO2e / 1 Meter

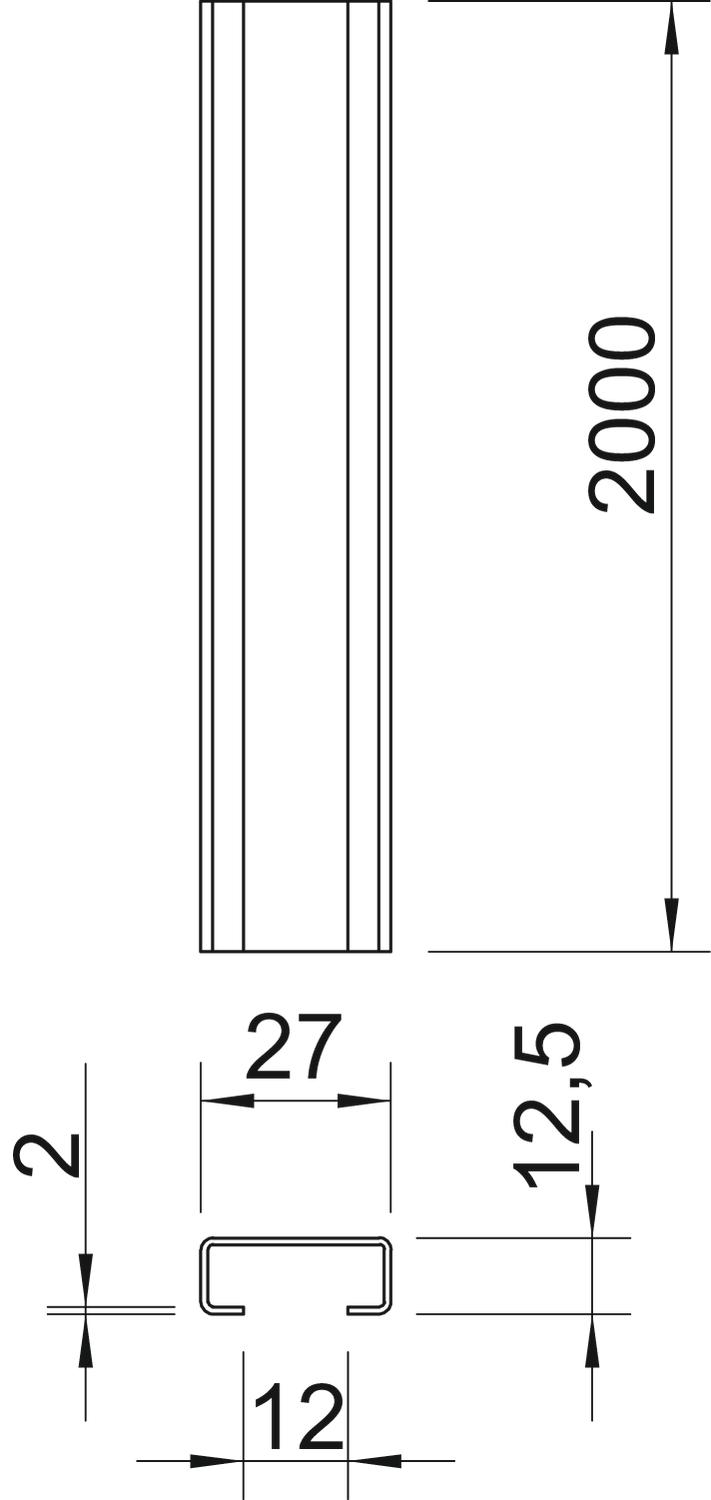

Dimension	2000x27x12,5
Dimension L	2000 mm
Height	12,5 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm

Profile shape	C profile
Static value A	1,08 cm²
Static value lz	0,98 cm⁴
Surface	Bright
Type of perforation	Without
Version for	Single profile
Width	27 mm
With perforation	no
With toothing	no
