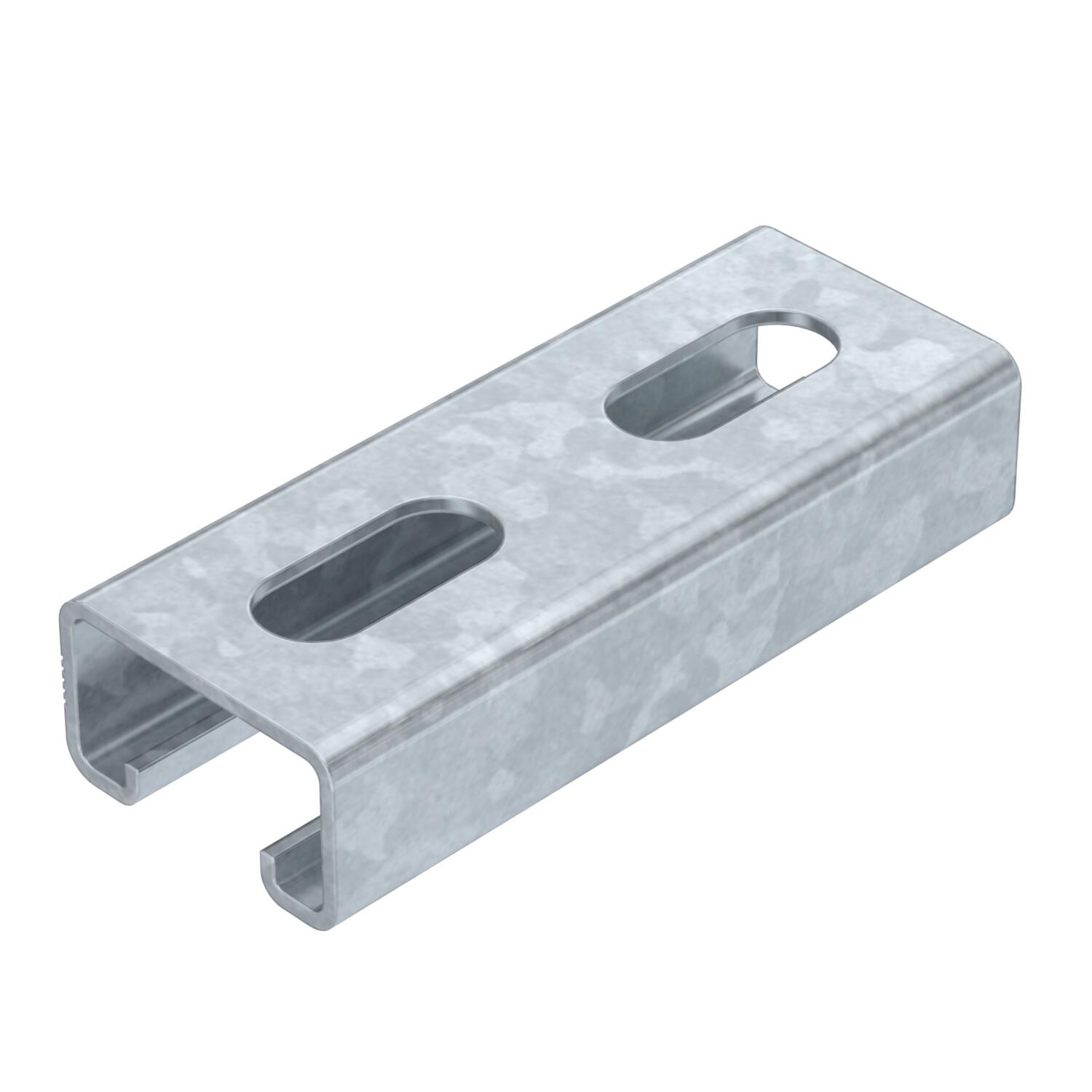

Profile rail, heavy duty, slot width 18 mm, perforated, FT

Item no. 1121850 | EAN 4012197449254

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Material	Steel

Surface	Hot-dip galvanised

Colour

Product description

Product description

Heavy-duty C profile rail for the individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,3598 kg CO2e / 1 Piece
Colour	zinc

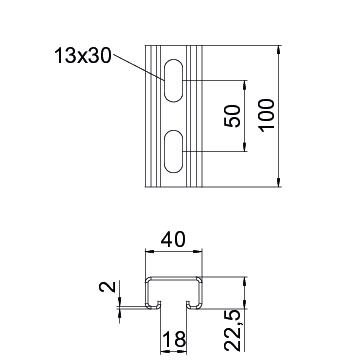

Dimension	100x40x22,5
Dimension L	100 mm
Drill hole spacing, centre	50 mm
Height	22,5 mm
Hole shape (ETIM)	Long slot
Hole size	30x13 mm
Hole width	13 mm
Length	100 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	2 mm

Profile shape	C profile
Slot width	18 mm
Static value A	1,74 cm²
Static value ly	1,86 cm⁴
Static value lz	4,46 cm⁴
Static value Wy	1,05 cm³
Static value Wz	2,23 cm³
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	40 mm
With perforation	yes

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Colour	Item no.	Quantity	SSU
MS4022P0100FT	100 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	zinc	1121850	piece	1 piece
MS4022P0200FT	200 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	zinc	1121852	piece	1 piece
MS4022P0300FT	300 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121854	piece	1 piece
MS4022P0400FT	400 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121856	piece	1 piece
MS4022P0500FT	500 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121858	piece	1 piece
MS4022P0600FT	600 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121861	piece	1 piece
MS4022P0700FT	700 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121865	piece	1 piece
MS4022P0800FT	800 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121867	piece	1 piece
MS4022P0900FT	900 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121869	piece	1 piece
MS4022P1000FT	1000 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121871	m	1 m
MS4022P1100FT	1100 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121873	piece	1 piece
MS4022P1200FT	1200 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121875	piece	1 piece
MS4022P1300FT	1300 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121877	piece	1 piece
MS4022P1400FT	1400 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121879	piece	1 piece
MS4022P1500FT	1500 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121881	piece	1 piece
MS4022P1600FT	1600 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121883	piece	1 piece
MS4022P1700FT	1700 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121885	piece	1 piece
MS4022P1800FT	1800 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121887	piece	1 piece
MS4022P1900FT	1900 mm	40 mm	22.5 mm	2 mm	Steel	Hot-dip galvanised	-	1121889	piece	1 piece
