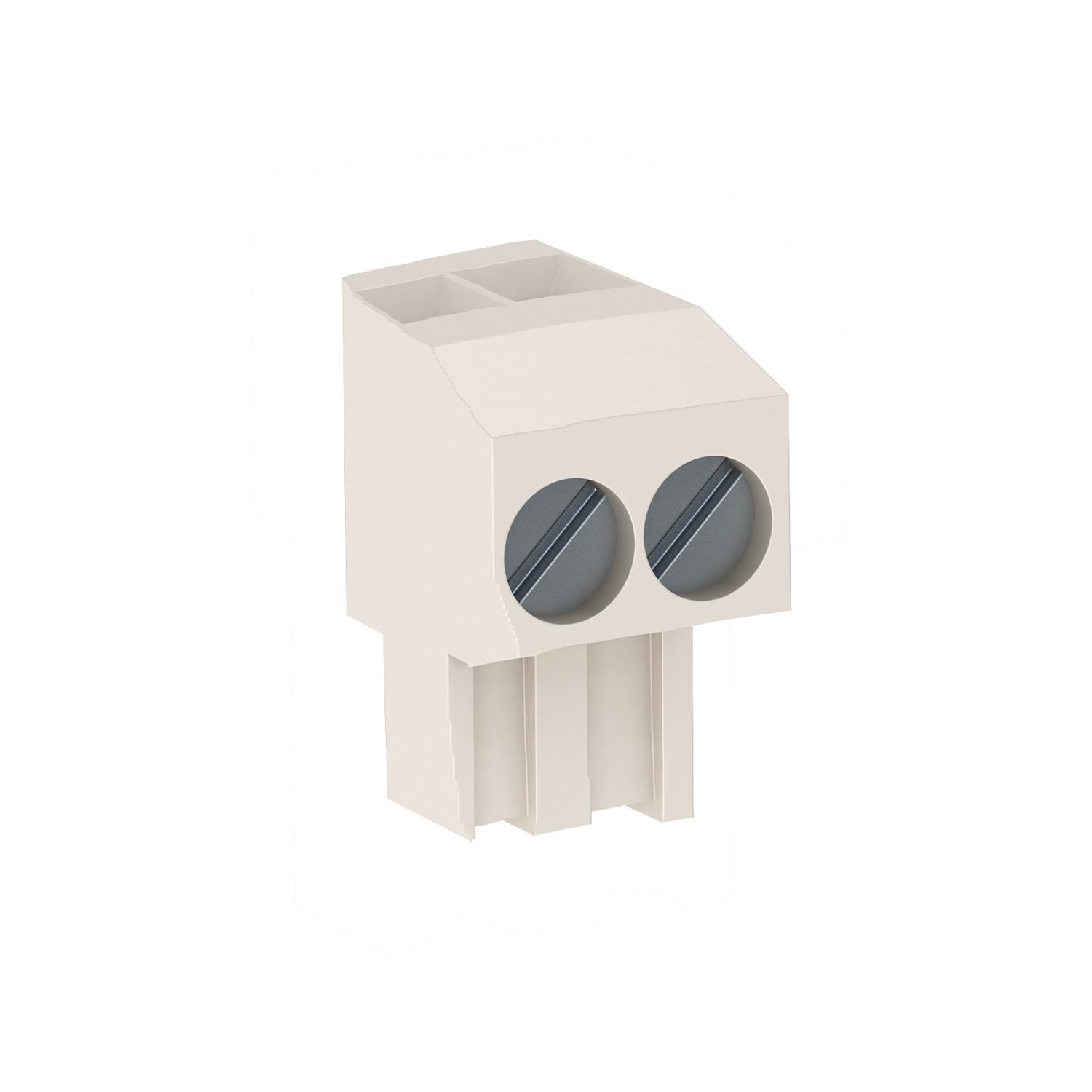

Remote signalling replacement connector for MultiBase
Item no. 5096693 | EAN 4012195813484
- Product description
-
Product descriptionReplacement telephony connector, 2-pole version, for MultiBase base
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,0003 kg CO2e / 1 Piece Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Dimension 3-polig Operating temperature, max. 80 °C Operating temperature, min. -40 °C Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Pole version 2 Protection rating IP20 - All types
- Downloads
-
Data sheet MB-FS / 5096693 , 0.16MB , pdfREACH Declaration of conformity MB-FS / 5096693 , 0.12MB , pdfRoHS Declaration of conformity MB-FS / 5096693 , 0.13MB , pdfTechnical information MultiBase , 0.54MB , pdf
