Straight connector 60, EcoLine, FS 3.5 | 56 | | 2 | zinc
morepic-1 morepic-2

Straight connector 60, EcoLine, FS

Item no. 6067090 | EAN 4012197485306

6067090 / RLVK 60 FS ECO
3.5 mm
56 mm
2 mm
zinc
Product description
Product description

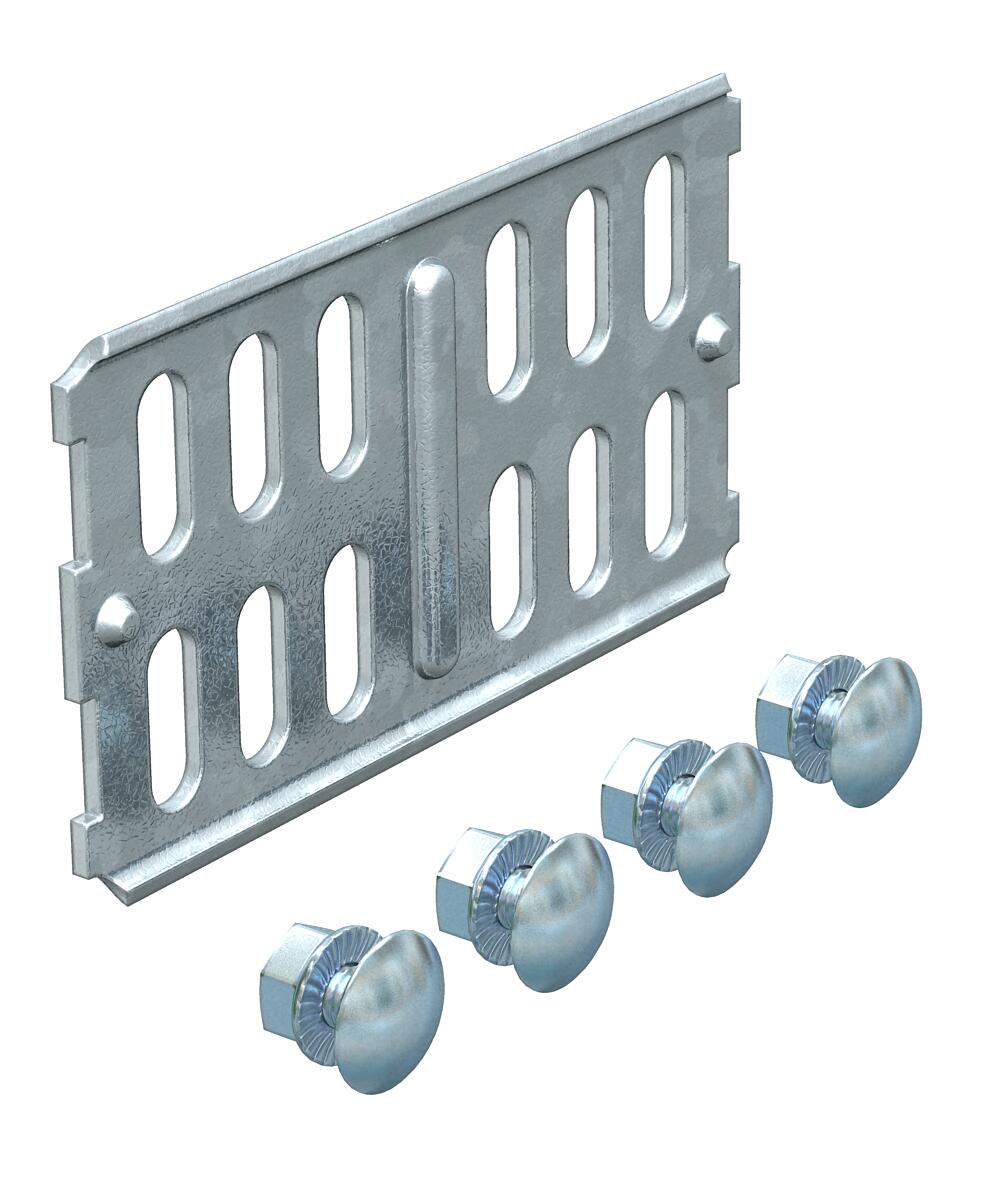

Straight connector made from CO2-reduced steel, for the straight connection of cable trays and fittings with a side height of 60 mm. Including fastening material.

Die Durchgängigkeit des Potentialausgleich ist durch die Verschraubung sichergestellt.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • OBO ECOLine
  • CO₂-reduziertes Material
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
CO2 Footprint (GWP) Cradle-to-Gate 0,1575 kg CO2e / 1 Piece
Colour zinc
Connection type Screw connector

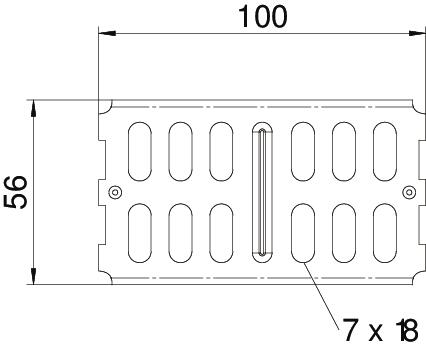

Dimension 60x100
Dimension 200 x 56
Height 56 mm
Height 2 in
Length 100 mm
Maintain electrical functions yes
Material Steel, CO2 reduced
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 2 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for cable tray system height 60 mm
Suitable for mesh cable tray no
Surface Strip galvanized
Version for Straight connector
Width 3,5 mm
All types

All types

Types Width Height Plate thickness Colour Item no. Quantity SSU
RLVK 60 FS ECO 3.5 mm 56 mm 2 mm zinc 6067090
1 piece
