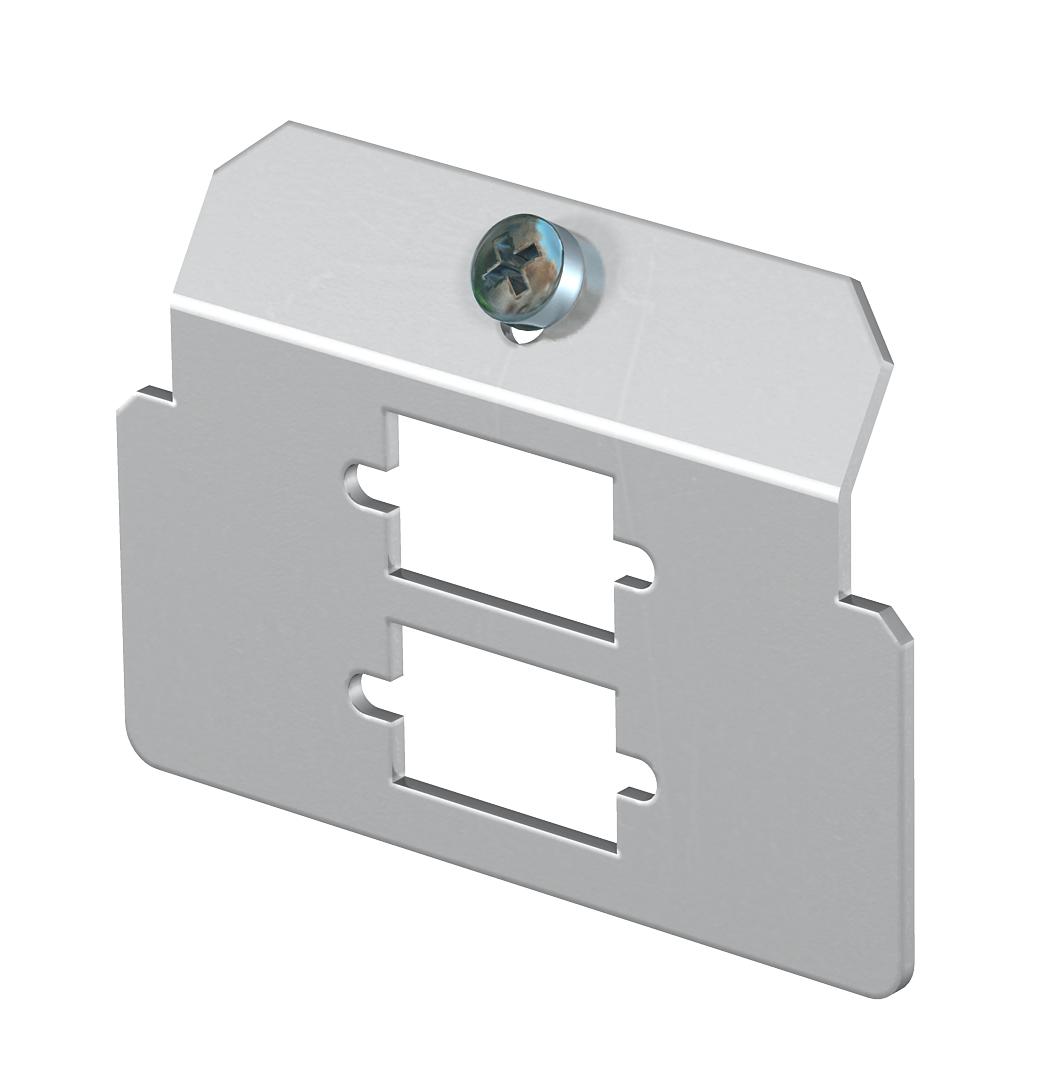

Support plate 2 x type D for mounting support
Item no. 7407790 | EAN 4012195415978
- Product description
-
Product descriptionSupport plate to accept two data, audio or video technology connection sockets, type D-Sub 9.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,3886 kg CO2e / 1 Piece Connection options 2 connection sockets for data technology, audio or video technology, type D-Sub 9 Decouplable no Depth 48,6 mm Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 72 mm Lowerable to be flush-floor no Material Stainless steel 1.4301 Number of installable devices 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no - All types
- Downloads
-
Data sheet MTM 2D / 7407790 , 0.15MB , pdfREACH Declaration of conformity MTM 2D / 7407790 , 0.09MB , pdfRoHS Declaration of conformity MTM 2D / 7407790 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
