Symmetrical floor support, crossbeam 400 46 | 395 | 26

Symmetrical floor support, crossbeam 400

Item no. 6044406 | EAN 4012197332488

Item no. / Types

Length	46 mm

Width

Height	26 mm

Product description

Product description

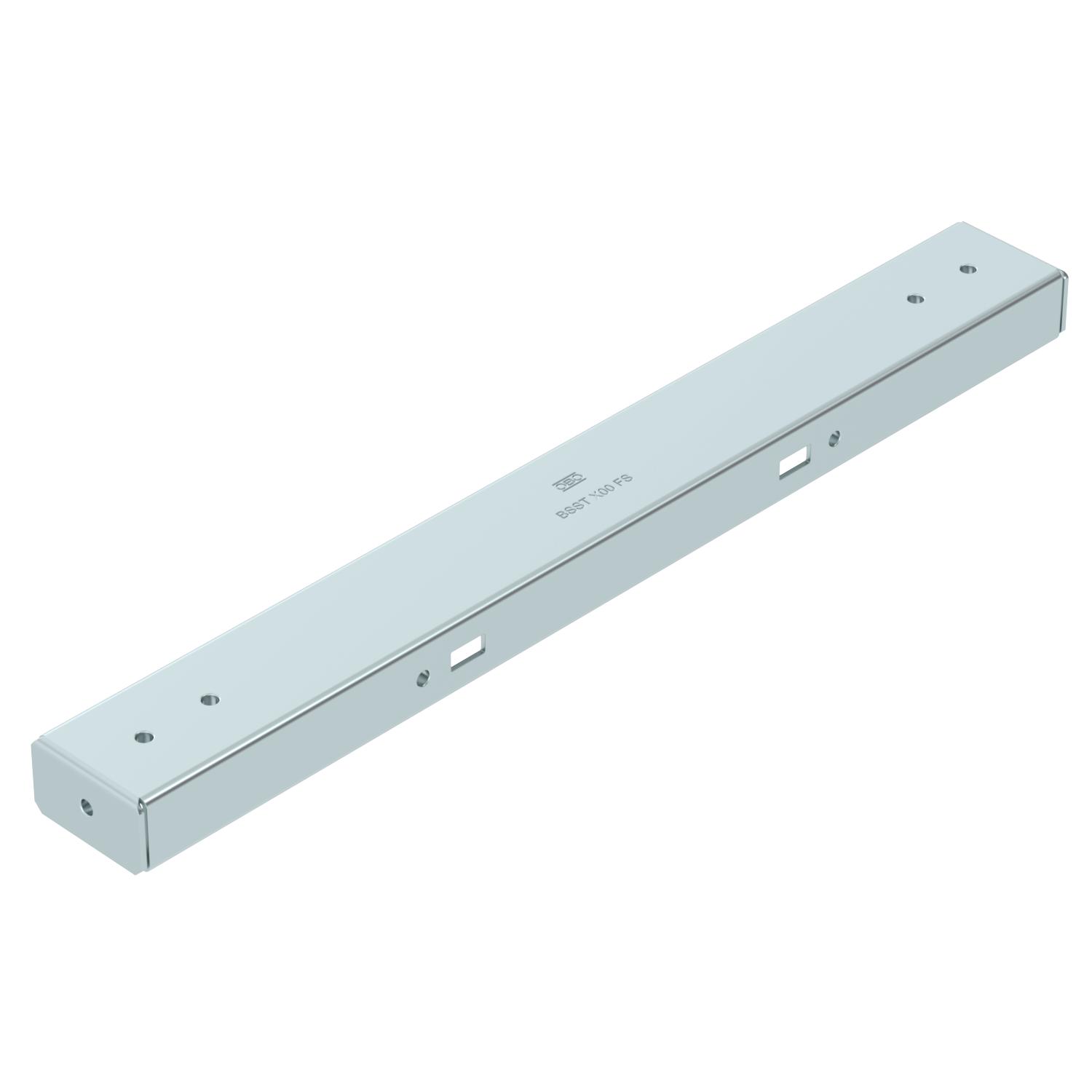

Crossbeam of the symmetrical floor support for the BKRS system, suitable for base type BSSU 190 4060. Can be used for walkable cable trays of width 400 mm. With threaded unions for cut-free mounting of cable trays. Fastening to base with 4x FKS M6 flat-head screws. Fastening material must be ordered separately.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	2,0157 kg CO2e / 1 Piece
Colour	zinc

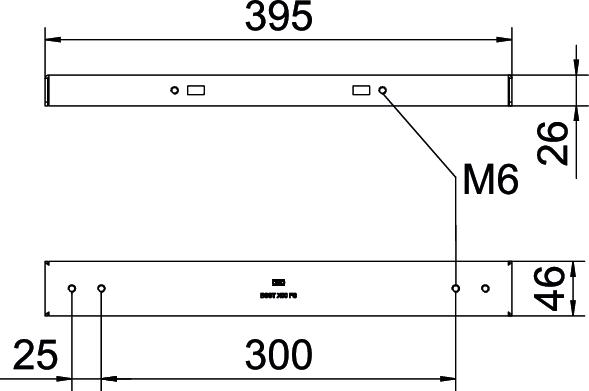

Dimension	B400mm
Dimension B	395 mm
Dimension L	300 mm
Height	26 mm
Length	46 mm
Material	Steel
Rustproof steel, pickled	no

Suitable for cable ladder	no
Suitable for cable support system width, max.	400 mm
Suitable for cable support system width, min.	400 mm
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Tray fastening	Screw-on
Version for	Miscellaneous
Width	395 mm

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
BSST 100 FS	46 mm	95 mm	26 mm	6044400	piece	1 piece
BSST 200 FS	46 mm	195 mm	26 mm	6044402	piece	1 piece
BSST 300 FS	46 mm	295 mm	26 mm	6044404	piece	1 piece
BSST 400 FS	46 mm	395 mm	26 mm	6044406	piece	1 piece
BSST 500 FS	46 mm	495 mm	26 mm	6044408	piece	1 piece
BSST 600 FS	46 mm	595 mm	26 mm	6044410	piece	1 piece
