Trunking, type WDK 100230 2000 | 230 | 100 | Light grey; RAL 7035

Trunking, type WDK 100230

Item no. 6027253 | EAN 4012196668656

Item no. / Types

Length	2000 mm

Width	230 mm

Height	100 mm

Colour

Product description

Product description

Wall installation trunking as trunking base with base perforation and matching trunking cover.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	6,4905 kg CO2e / 1 Meter
Colour	Light grey; RAL 7035
Delivery on a roll	no
Dimension	100x230x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Height	100 mm
Length	2000 mm
Maintain electrical functions	no
Material	Polyvinylchloride

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	113
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	148
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	87
Number of insertable partitions	3
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	19702 mm²
Version, cable trunking cover	Loose
Width	230 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK100230RW	2000 mm	230 mm	100 mm	Pure white; RAL 9010	6191355	m	4 m
WDK100230GR	2000 mm	230 mm	100 mm	Stone grey; RAL 7030	6026311	m	4 m
WDK100230CW	2000 mm	230 mm	100 mm	Cream; RAL 9001	6026338	m	4 m
WDK100230LGR	2000 mm	230 mm	100 mm	Light grey; RAL 7035	6027253	m	4 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
End piece, trunking type WDK 100230	WDK HE100230LGR	6183980	piece	5 piece

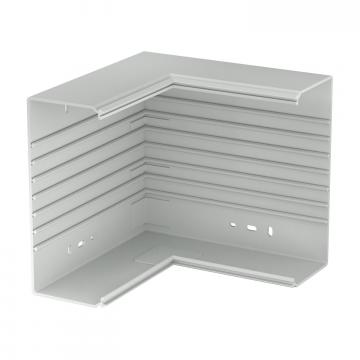

Internal corner cover, trunking type WDK 100230	WDK I100230LGR	6193034	piece	2 piece

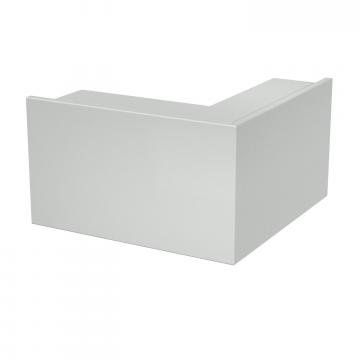

External corner, trunking type WDK 100230	WDK A100230LGR	6024611	piece	1 piece

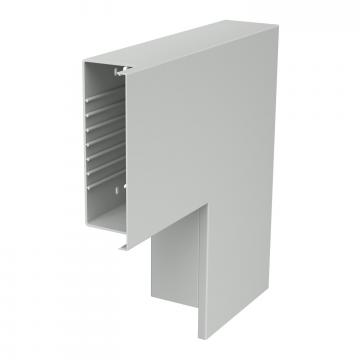

Flat angle, trunking type WDK 100230	WDK F100230LGR	6182365	piece	1 piece
Partition for WDK trunking, trunking height 100 mm	2371 100	6026990	m	2 m
Cover clip for WDK trunking, trunking width 230 mm	2370 230	6023584	piece	20 piece
