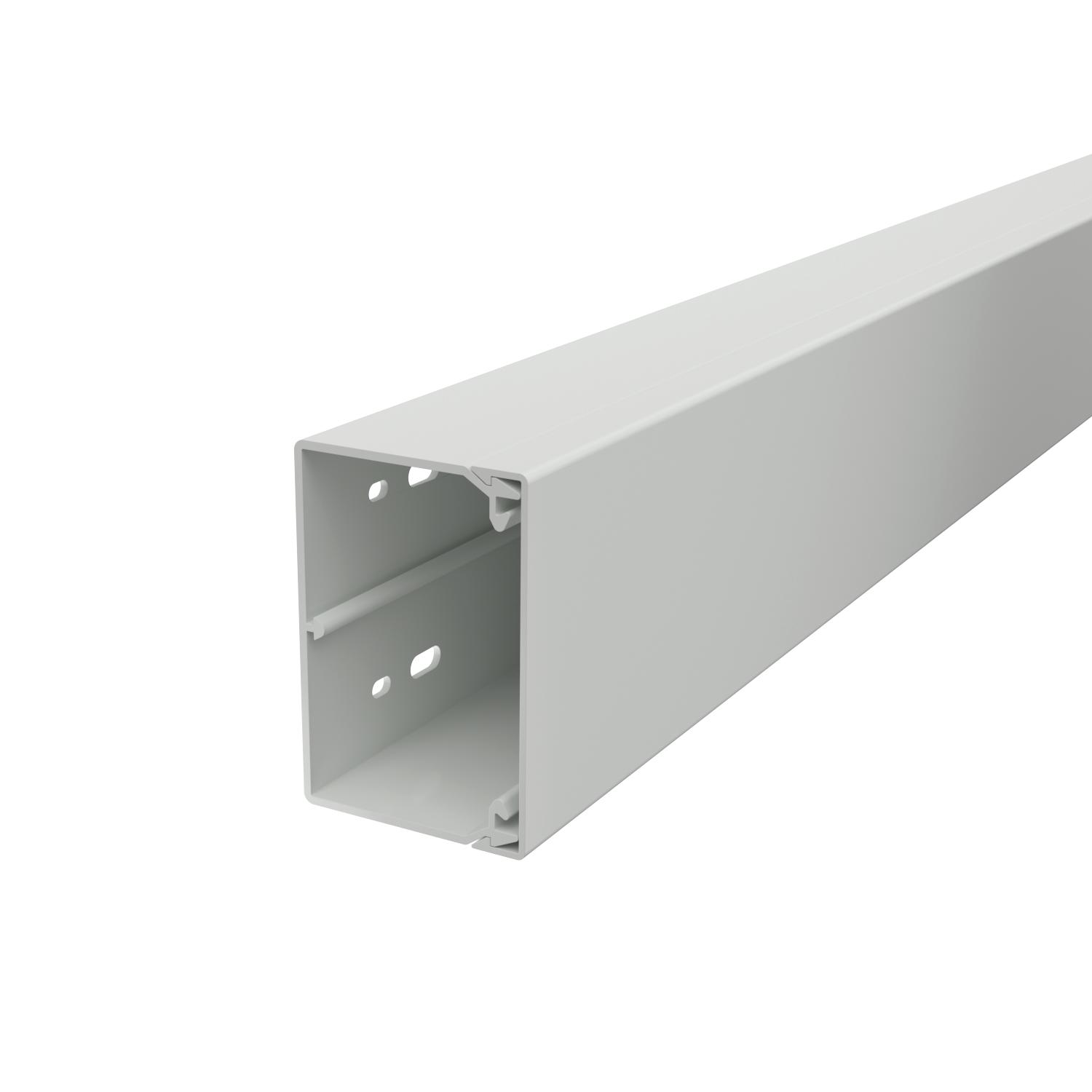

Trunking, type WDKH 60090

Item no. / Types

Length	2000 mm

Width	90 mm

Height	60 mm

Colour

Product description

Product description

Trunking cover and base with base perforation made of halogen-free plastic including cover fixing devices.

During installation, ensure that only halogen-free accessories and fastening materials are used.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	yes
CO2 Footprint (GWP) Cradle-to-Gate	4,7356 kg CO2e / 1 Meter
Colour	Light grey; RAL 7035
Delivery on a roll	no

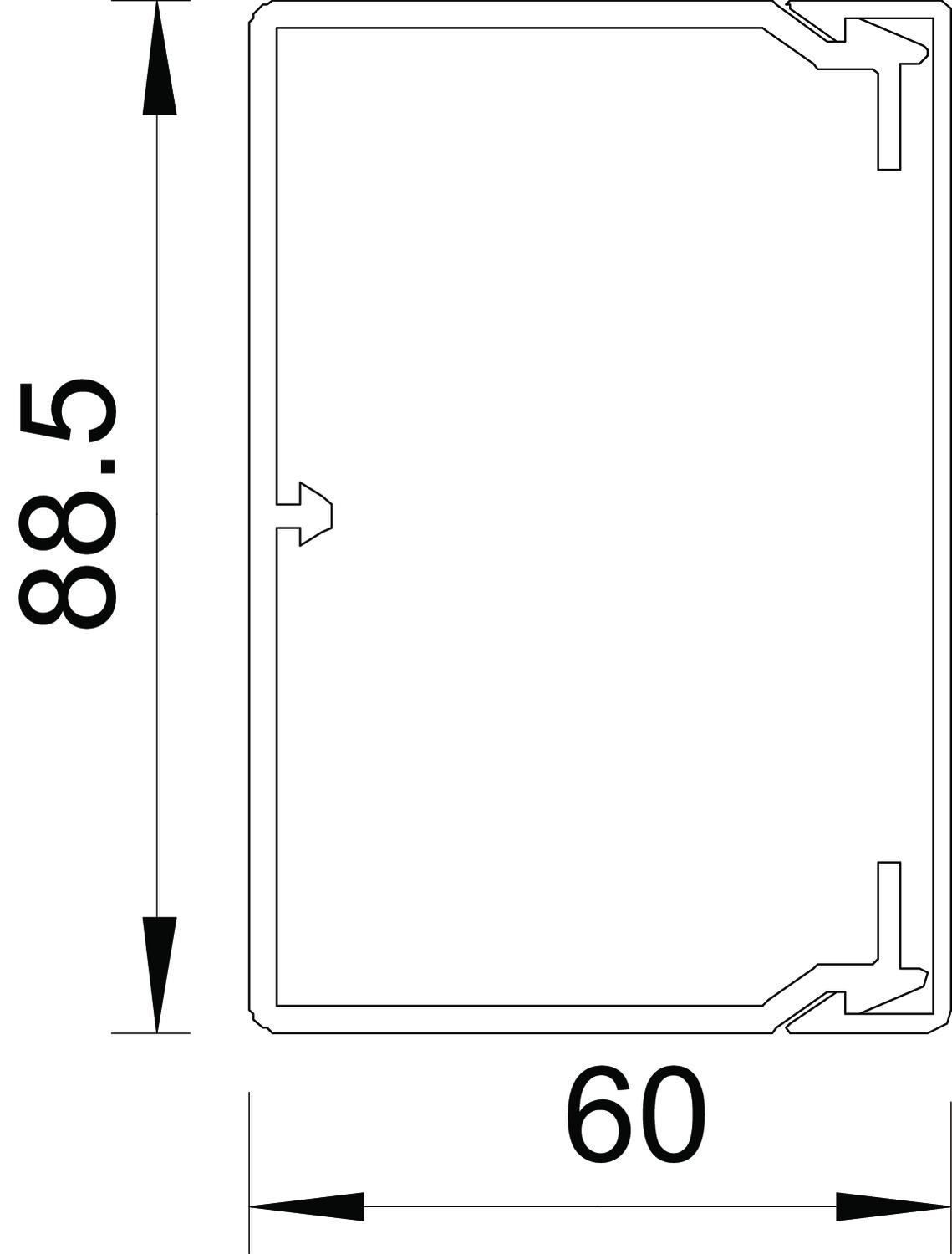

Dimension	60x90x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	60 mm
Length	2000 mm

Maintain electrical functions	no
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	19
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	no
Usable cross-section	4360 mm²
Version, cable trunking cover	Loose
Width	90 mm

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDKH-60090RW	2000 mm	90 mm	60 mm	Pure white; RAL 9010	6175415	m	24 m
WDKH-60090LGR	2000 mm	90 mm	60 mm	Light grey; RAL 7035	6175469	m	24 m

Accessories

Products	Types	Item no.	Quantity	SSU

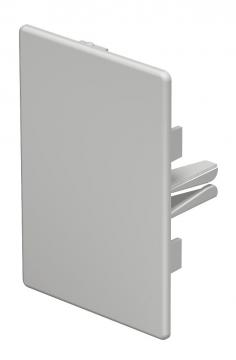

End piece, trunking type WDKH 60090	WDKH-E60090LGR	6175940	piece	10 piece

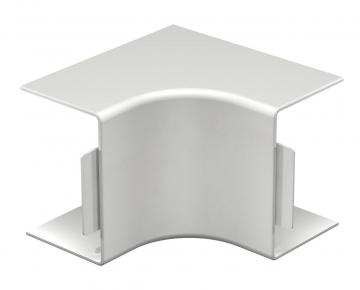

Internal corner cover, trunking type WDKH 60090	WDKH-I60090LGR	6175976	piece	2 piece

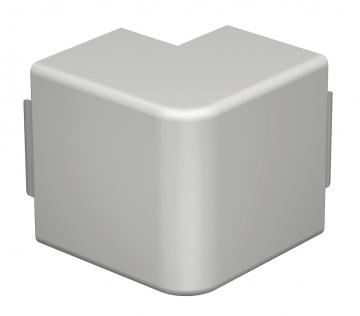

External corner cover, trunking type WDKH 60090	WDKH-A60090LGR	6176012	piece	2 piece

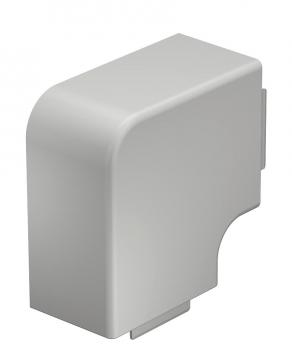

Flat angle cover, trunking type WDKH 60090	WDKH-F60090LGR	6176048	piece	2 piece
Partition, halogen-free, for trunking height 60 mm	WDKH-TW60LGR	6175504	m	2 m
Cover clip for WDKH trunking, trunking width 90 mm	OTK H90	6176125	piece	10 piece
