UDHOME-ONE floor socket, without floor covering recess, BS socket, decorative plate: angelhair
Item no. 7368241 | EAN 4012197382414
- Product description
-

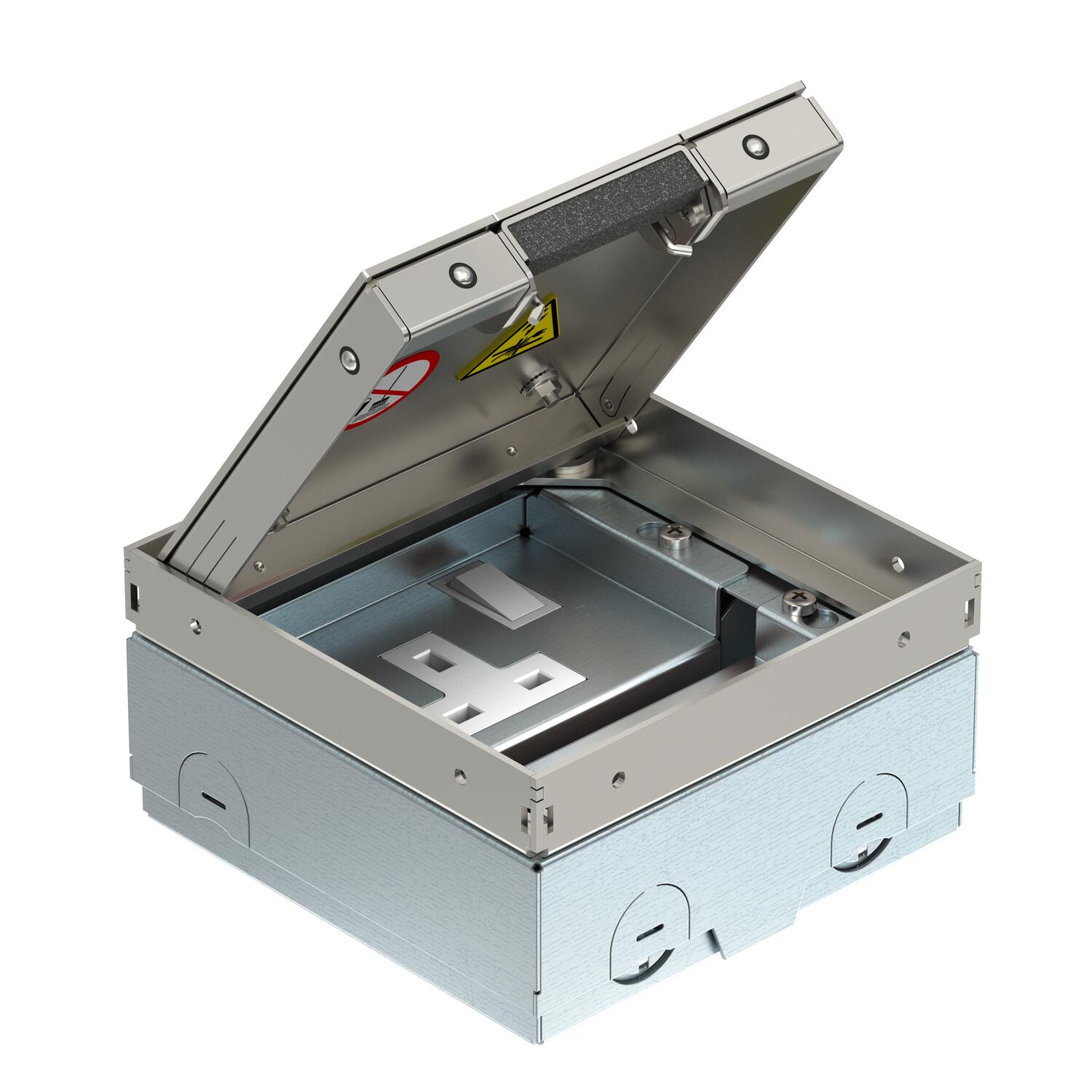

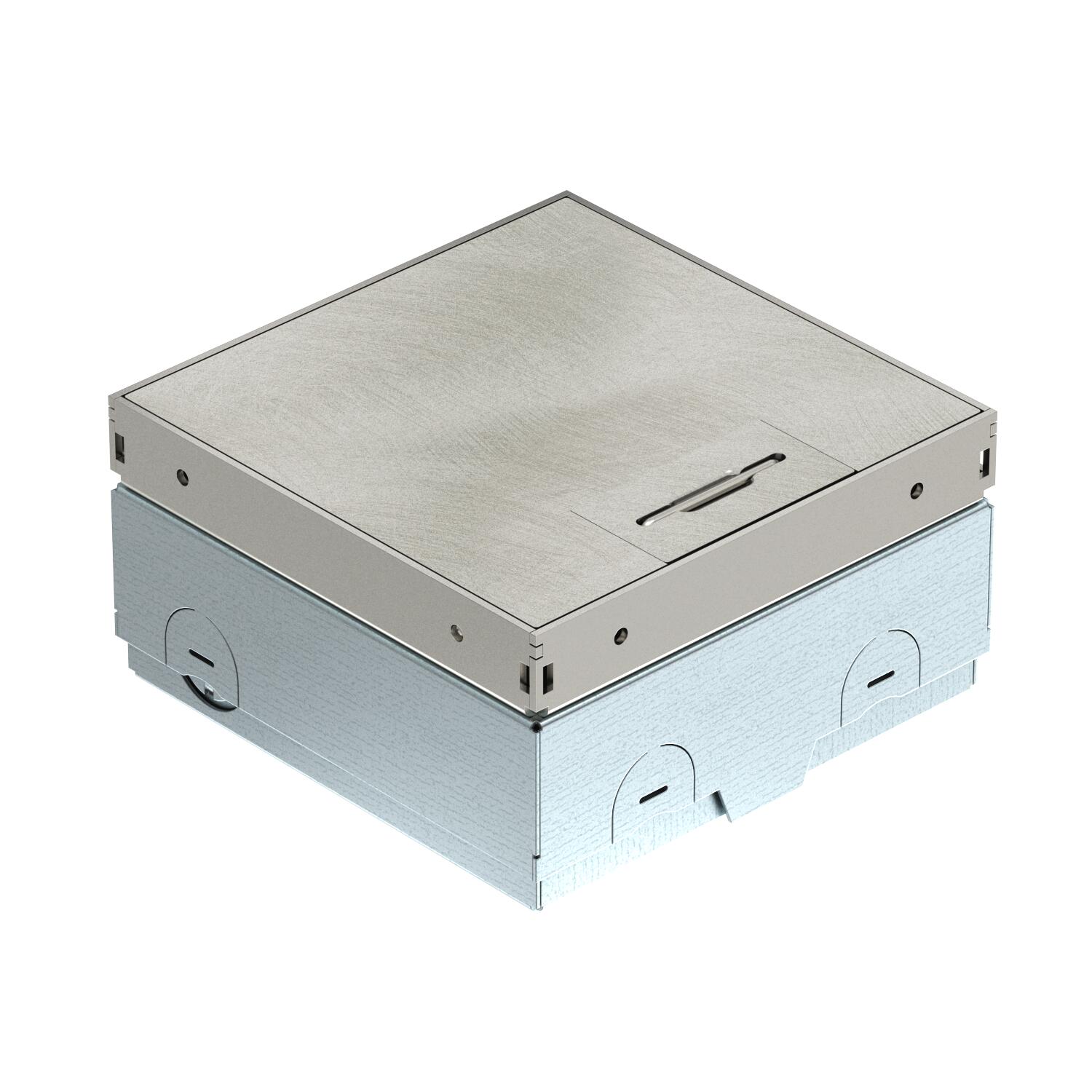

Product descriptionSquare floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with decorative plate angelhair. A switched BS socket as well as a data technology support for 2 data sockets of type LJU6C are included in the delivery.
-
- Technical data
-
Technical data

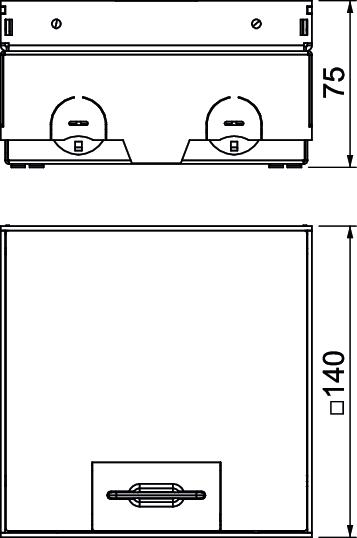

Application when unused 6.101.1 Dry floor care Application when used 6.101.1 Dry floor care Cable outlet version Swivellable cord outlet CO2 Footprint (GWP) Cradle-to-Gate 11,1388 kg CO2e / 1 Piece Device support to accept mounting boxes no Dimension 140x140x75 Equipment Single BS socket Floor care Dry Floor covering protection frame no Floor height, max. 105 mm Floor height, min. 75 mm Heavy-duty version no Height 75 mm Length 140 mm Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Suitable for wet care no Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N Width 140 mm With floor covering recess no - All types
- Downloads
-
Data sheet UDHOME-ONE V1 BS / 7368241 , 0.22MB , pdf
