US 7 support A4
Item no. 6338858 | EAN 4012196803637
- Product description
-

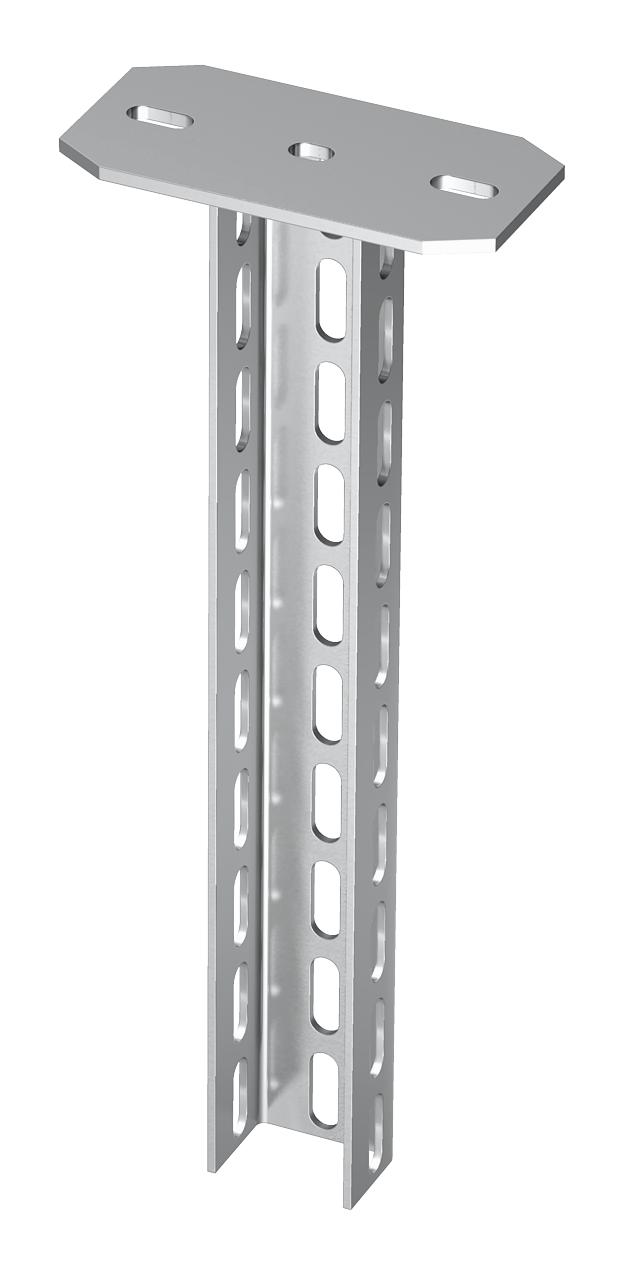

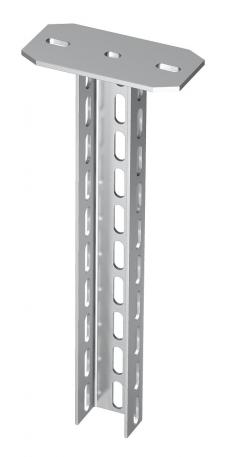

Product descriptionSuspended support (U profile) with welded head plate.
For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 12,0441 kg CO2e / 1 Piece Colour stainless steel Dimension 70x50x300 Height 50 mm Length 300 mm Maintain electrical functions no Material Stainless steel 1.4571 Material thickness 4 mm Maximum tensile load 11 kN Surface Bright, treated Version for U profile Width 70 mm Technical data
Load diagram, U support, type US 7 K VA
-
Bending of the end of the suspended support at permitted bracket load
-
Permitted bracket load in kN without man load
-
Bracket length in mm
-
Load curves with support lengths in mm
-
- All types
-
All types
- Downloads
-
Data sheet US 7 K 30 A4 / 6338858 , 0.28MB , pdfEU declaration of conformity US 7 K 30 A4 / 6338858 , 0.10MB , pdfUK Declaration of Conformity US 7 K 30 A4 / 6338858 , 0.09MB , pdfREACH Declaration of conformity US 7 K 30 A4 / 6338858 , 0.12MB , pdfRoHS Declaration of conformity US 7 K 30 A4 / 6338858 , 0.13MB , pdfEnvironmental Product Declaration (EPD) US 7 K 30 A4 / 6338858 , 1.48MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
