UZD250-4 SO junction and branch box
Item no. 7410010 | EAN 4012197408756
- Product description
-

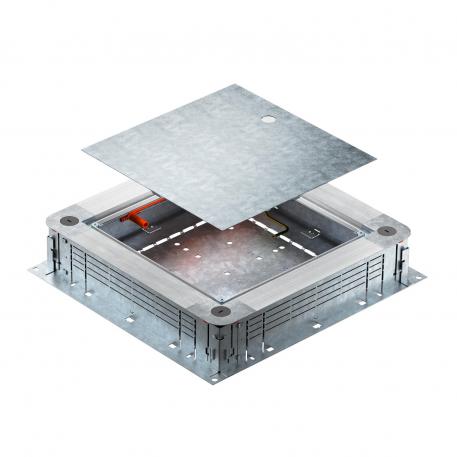

Product descriptionJunction and branch box for screed-covered underfloor installation duct with sheet steel side walls. For mounting of installation units in the mounting cover (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 115–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed draw-off edge. With noise decoupling option after screed laying and can also be used with system accessories for heavy-duty applications. Insertion of cables with the 2-part EÜK duct.
-
- Technical data
-
Technical data

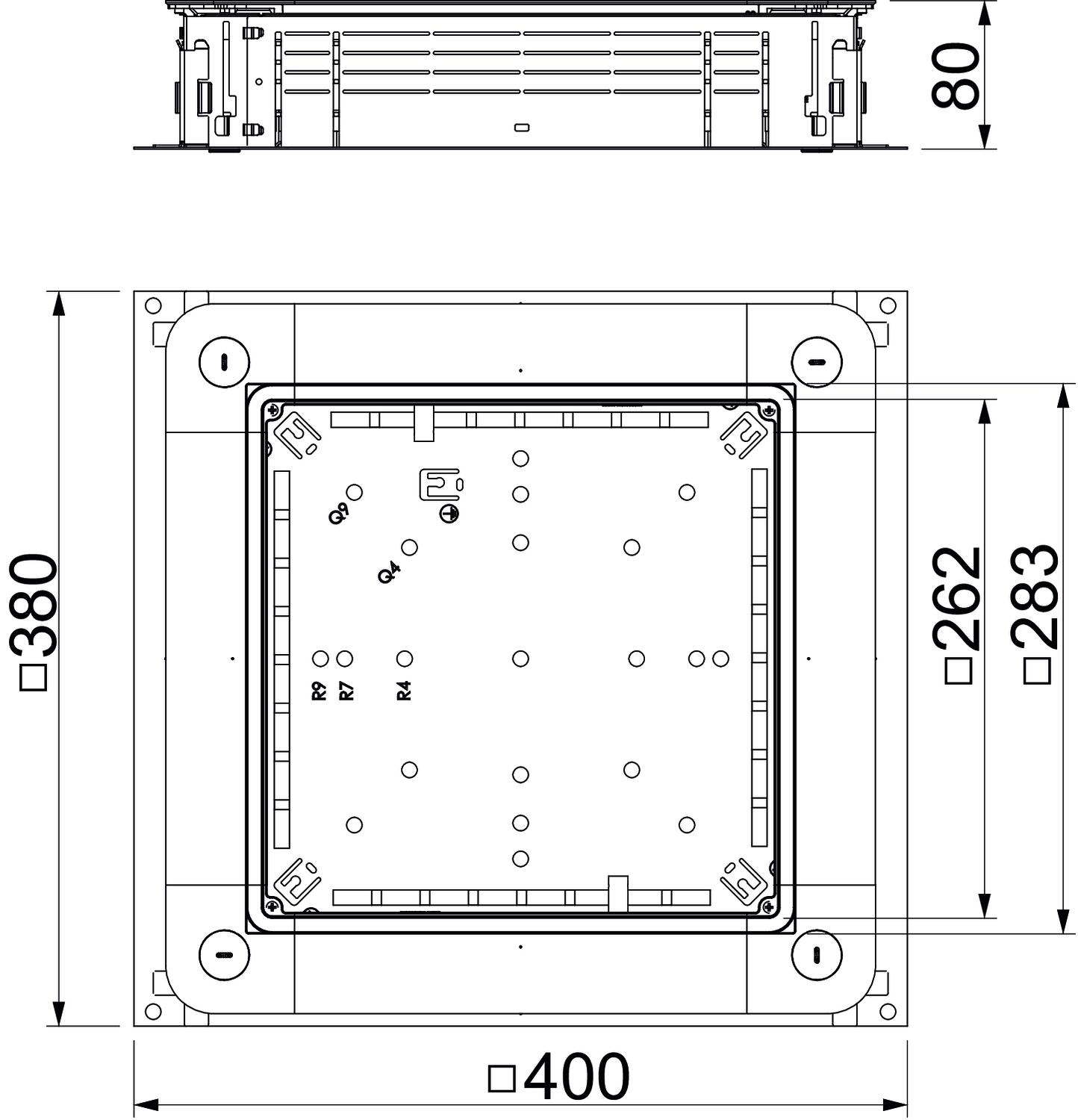

Cover version Universal Decouplable yes Dimension 400x380x80 Dimension a 262 mm Dimension A 380 mm Dimension b 283 mm Dimension B 400 mm Duct height, min. 28 mm Floor plate yes For pipe connection no Height 80 mm Height-adjustment range, max. 160 mm Height-adjustment range, min. 115 mm Installation opening for flush-mount unit Square Installation opening for on-floor tank no Length 380 mm Material Steel Minimum screed height 115 Nominal size 250 mm Number of installable devices 1 Protection rating (IP) when used IP20 Screed height, max. 160 mm Screed height, min. 115 mm Seal installation option yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Surface Strip galvanized Trunking height, max. 58 mm Trunking width, max. 250 mm Trunking width, min. 190 mm Width 400 mm - All types
-
All types
- Downloads
-
Data sheet UZD250-4 SO / 7410010 , 0.33MB , pdfEU declaration of conformity UZD250-4 SO / 7410010 , 0.11MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdf
