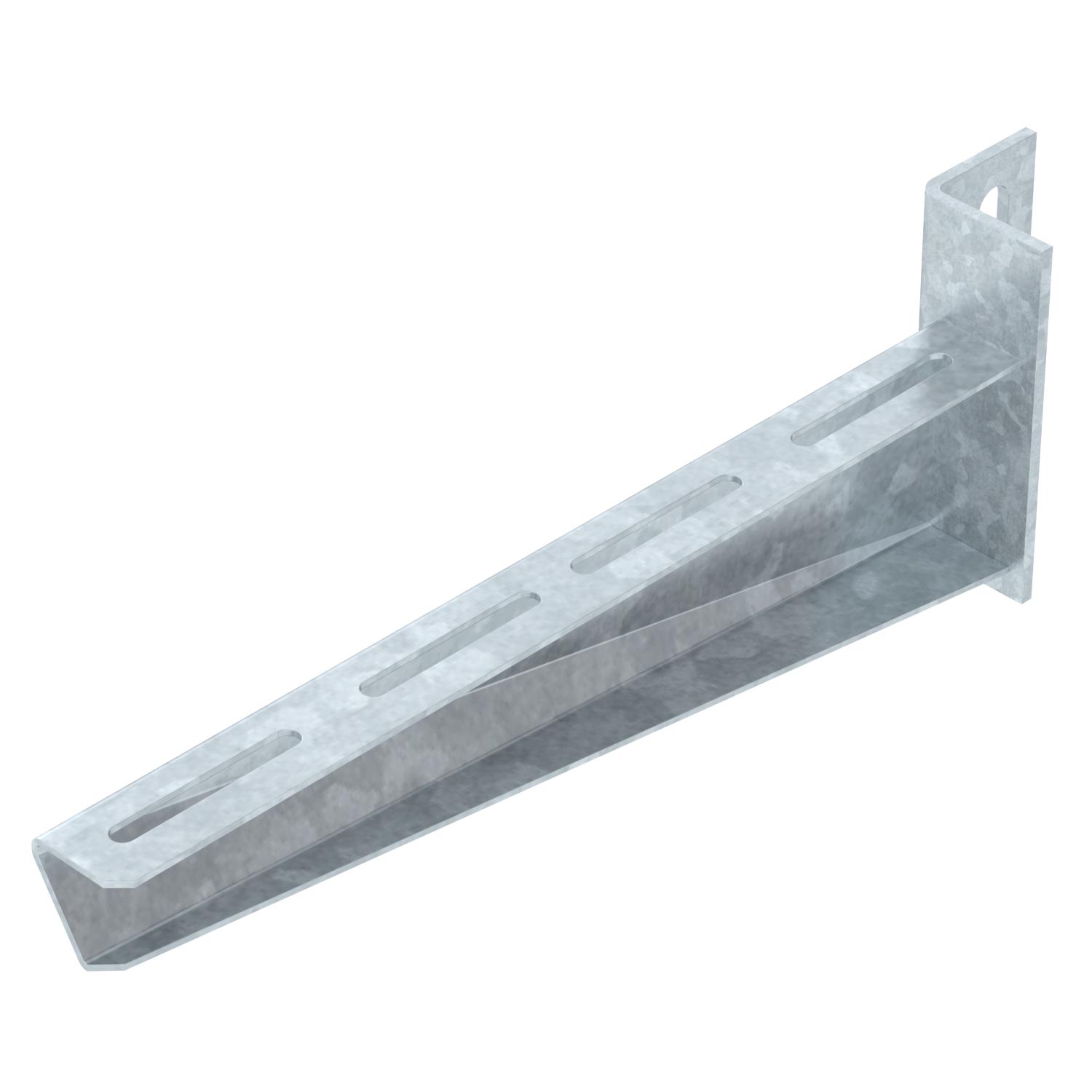

Wall and support bracket, angle head
Item no. 6419857 | EAN 4012197386863
- Product description
-
Product descriptionHeavy-duty wall and support bracket with welded angle head plate, for fastening to walls or structures.
-
- Technical data
-
Technical data

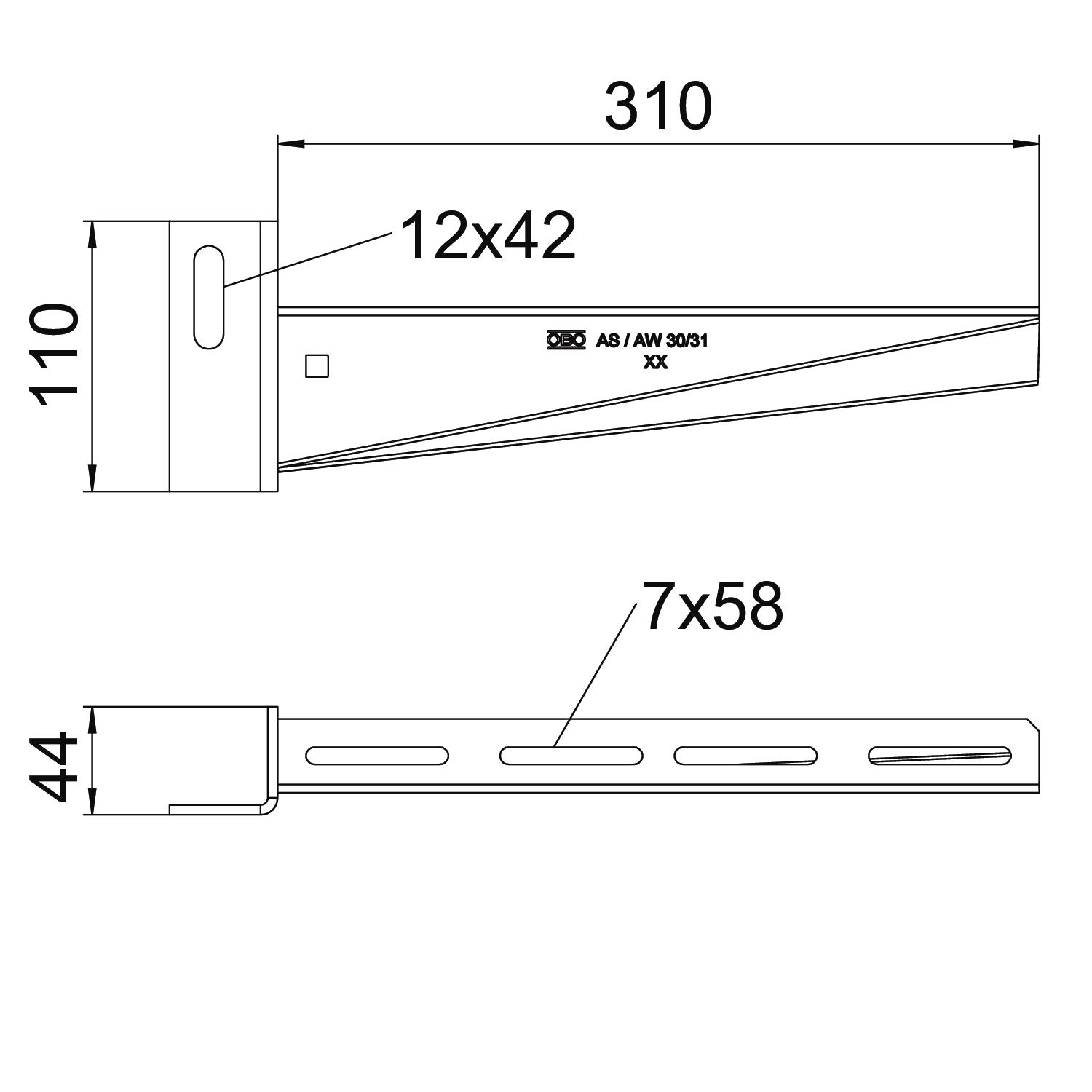

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 1,6558 kg CO2e / 1 Piece Colour zinc Dimension B310mm Dimension A 44 mm Dimension B 310 mm Dimension H 110 mm Height 110 mm Length 44 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 310 mm - All types
- Downloads
-
Data sheet AW 30 31 WK FT / 6419857 , 0.17MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AW 30 31 WK FT / 6419857 , 0.11MB , pdfUK Declaration of Conformity AW 30 31 WK FT / 6419857 , 0.09MB , pdfREACH Declaration of conformity AW 30 31 WK FT / 6419857 , 0.12MB , pdfRoHS Declaration of conformity AW 30 31 WK FT / 6419857 , 0.13MB , pdfEnvironmental Product Declaration (EPD) AW 30 31 WK FT / 6419857 , 1.48MB , pdf
