Wall and support bracket AW 30 FT SOMY
Item no. 7192060 | EAN 4012196017898
- Product description
-
Product descriptionMedium-duty wall and support bracket with welded head plate.

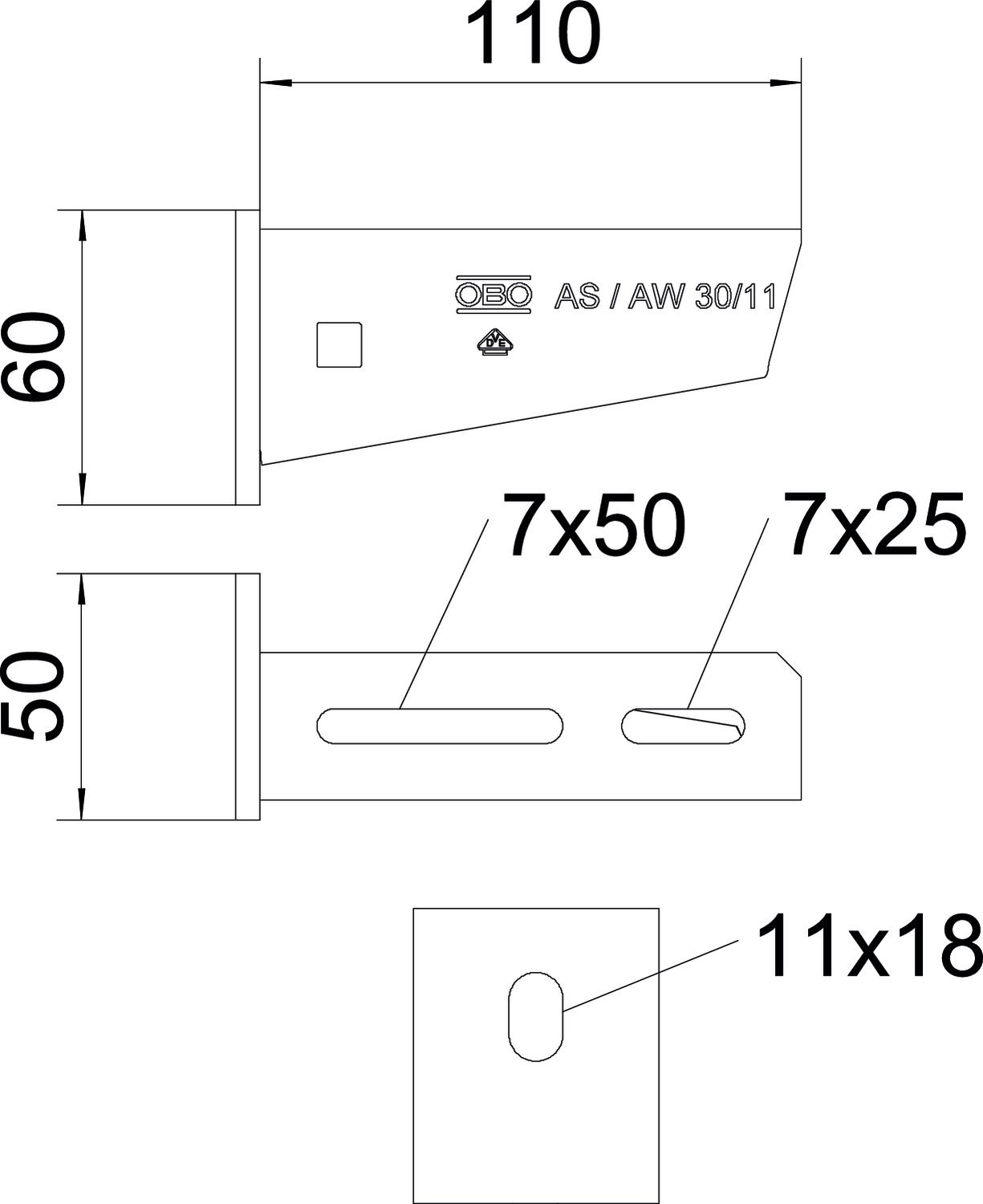

The brackets of width 110-160 mm have a fastening hole of 11 x 18 mm, those of width 210-610 mm are equipped with a fastening hole of 13 x 20 mm. When mounting the bracket on U supports up to a width of 400 mm, a truss-head bolt or a hexagonal bolt is used, depending on the profile, to fasten the support bracket. For bracket widths of 500 mm or more, the bracket is fastened through both struts of the U support using hexagonal bolts. Appropriate spacers are to be used, depending on the profile. The surface coating is a coating created in a single-dip method with extra-high zinc thicknesses.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 3,9961 kg CO2e / 1 Piece Colour zinc Dimension B610mm Dimension A 50 mm Dimension B 610 mm Dimension H 100 mm F in kN 3 kN Height 100 mm Hole diameter 13 mm Length 50 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised 85 µm Version for Wall and support bracket Width 610 mm Technical data
Load diagram, bracket, type AW 30
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
