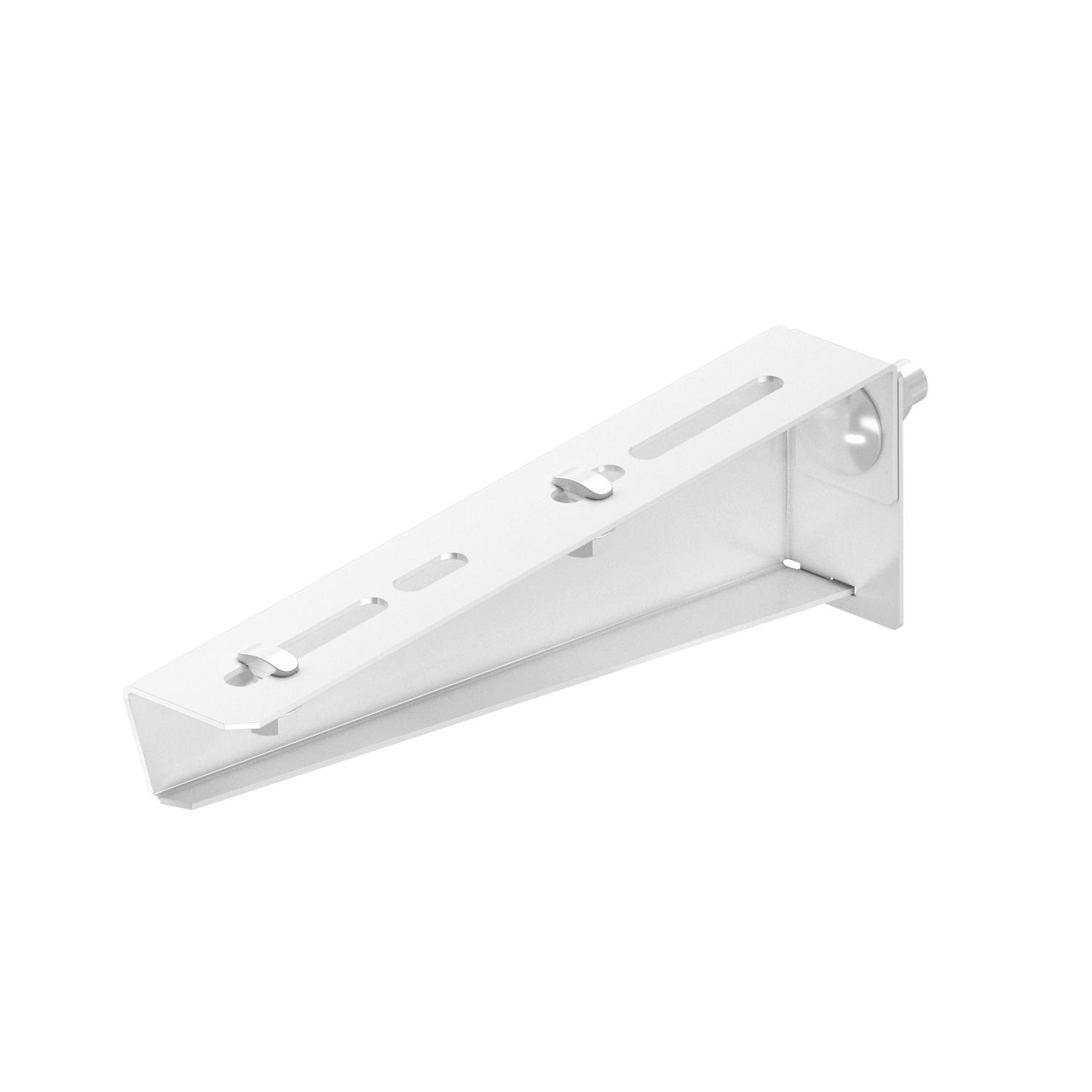

Wall and support bracket MWA 12
Item no. 6424620 | EAN 4012196649860
- Product description
-
Product descriptionLight-duty wall and support bracket.
Including truss-head bolt M10 x 25 for fastening to
U supports.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0068 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Dimension B200mm Dimension A 32,5 mm Dimension B 210 mm Dimension H 65 mm Dimension L 210 mm F in kN 1,2 kN Height 65 mm Hole diameter 11 mm Length 32,5 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface PES50 - Polyester/epoxy Version for Wall and support bracket Width 210 mm Technical data
Load diagram, bracket, type MWA 12
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet MWA 12 21SFSK RW / 6424620 , 0.32MB , pdfEU declaration of conformity MWA 12 21SFSK RW / 6424620 , 0.11MB , pdfUK Declaration of Conformity MWA 12 21SFSK RW / 6424620 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
