Magic PV Flat Glue

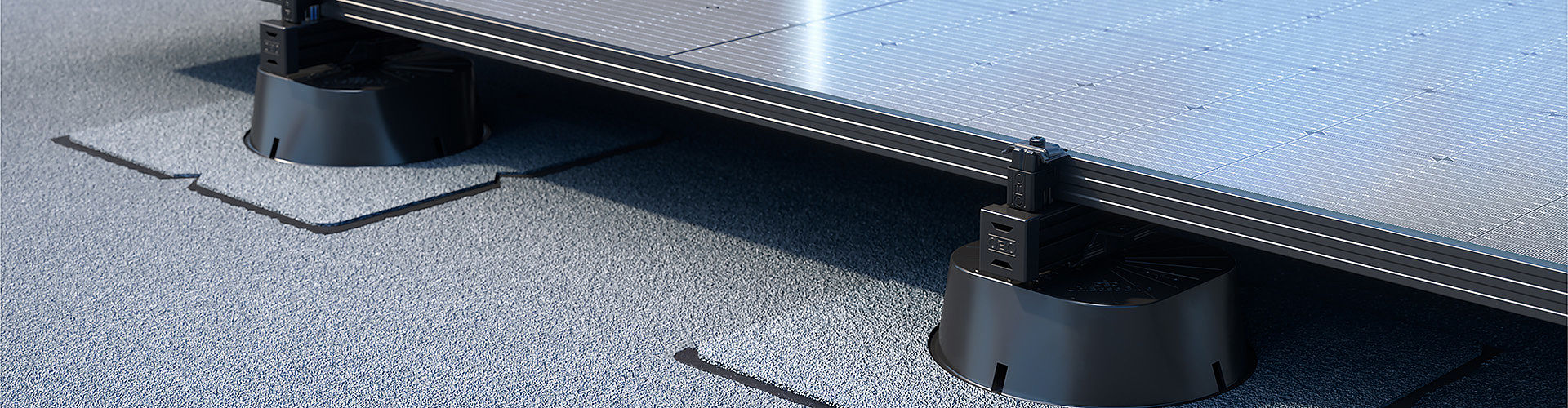

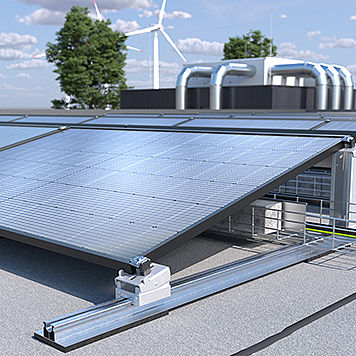

The Magic PV Flat Glue universal basecan be used as a ballast-free PV mounting system at a maximum angle of 5° (corresponding to approx. 8%) on bitumen waterproofing and at a maximum angle of 10° (corresponding to approx. 17%) on plastic roofing membranes. Use on pitched roofs with a slope of 5° or more is only possible following consultation with OBO and a static analysis. In line with the OBO standard, it is mounted parallel to the roof. A stand-off design may also be possible after consultation with OBO. A static analysis should be performed first in this case as well. For specific project requirements, our Technical Office will be happy to help and provide assistance during planning, and also work closely with you to find just the right solution for your needs.
Magic PV Flat Glue is suitable for roof membranes with bitumen or plastic membrane roofing (FPO). Installation is quick and easy – the universal base is joined to the existing roof seal with seamless welds via a sleeve available separately. True to the OBO system philosophy, Magic PV Flat Glue can also be combined with other OBO products – for example, the adapter for installing mesh cable trays.
Product highlights

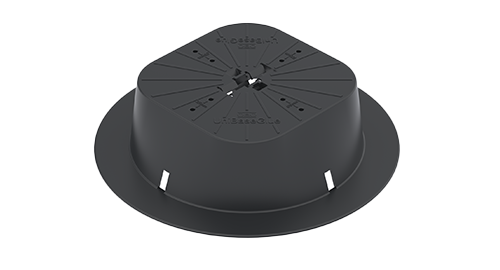

Universal stand Magic PV Flat Glue for glueing
- High-quality plastic type ASA ensures maximum service life outdoors
- Can also be used within the PV system as an installation system for optional cable management
- Easy installation: It is joined to the roof seal with seamless welds using a sleeve
- Can also be used as a cable management solution for PV systems
- Ballast-free solution for all flat roofs with a max. slope of 5°, suitable for roof membranes with bitumen or plastic membrane roofing

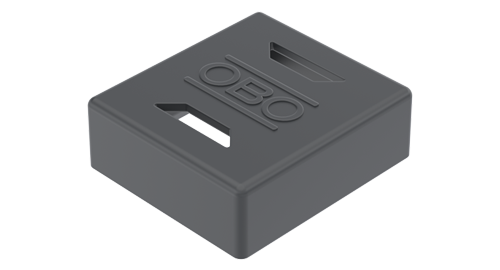

End cap for support profile
- Black version for seamless and attractive adaptation to the black version of the corresponding support profile
- Integrated perforations enable water drainage and prevent water collecting inside the support profile
- Aesthetic finish of the support profile – for example, to conceal unsightly cut edges

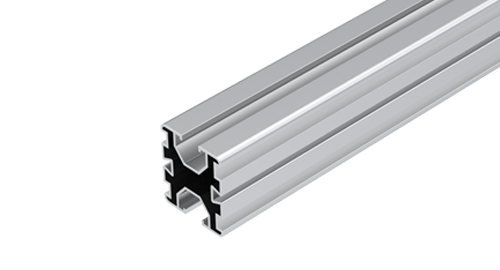

Support profile for flat- and pitched-roof systems
- Plain version for all roofs without specific aesthetic requirements
- Double-sided 10 mm-wide grooves – for example, for sliding nuts, universal and/or earthing clamps
- Other lateral grooves – for example, for straight and/or cross-connectors

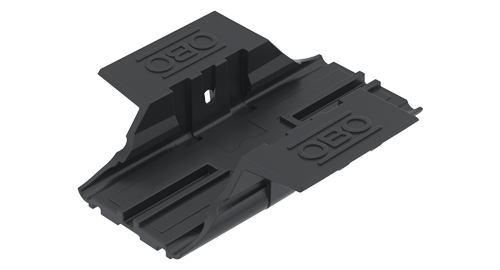

Adapter for TP 45 support profile
- Toolless mounting of adapter with the universal stand
- Toolless mounting of the mounting rail with the adapter
- Integrated anti-slip support surface
- Toolless dismantling of mounting profile
- Simple alignment of the mounting profile

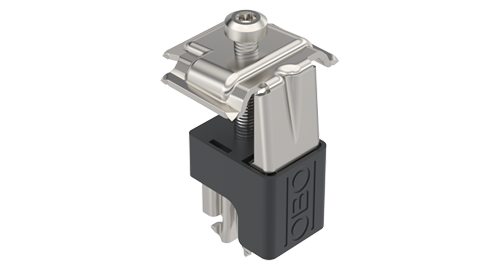

Universal clamp for flat- and pitched-roof systems
- Plain version for optimal combination with plain support profile
- Clamping range for module fastening from 30 to 50 mm
- Can be rotated by 90° after engaging in the mounting rail groove
- Can be used as an intermediate or end clamp
- Specific geometry at the corners of the upper part for equipotential bonding to the solar module
- A plastic housing guides the upper part and prevents it from twisting incorrectly during mounting.
- The upper part remains in its upper position until the solar module is fixed in place.
- It can be clicked onto the provided mounting feet (flat-roof system) and into the mounting rail groove (pitched-roof system)
- The plastic housing functions as a support surface to position the panels correctly
- Long service life thanks to the use of high-quality stainless steel.

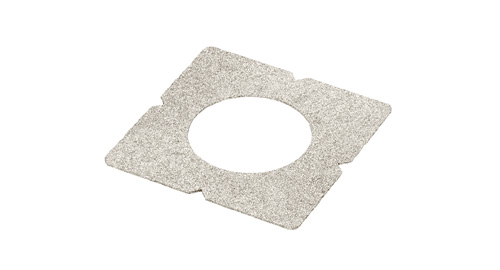

Fastening sleeve UniBase Glue Bit
- Bitumen fastening sleeve for glueing the UniBase Glue universal stand.
- Suitable for flat roofs with a bitumen seal.
- Can be used for roof slopes up to 3°
