Universal stand UniBase Glue for glueing

Universal stand UniBase Glue for glueing

Name: Universal stand UniBase Glue for glueing
Brand: OBO Bettermann
SKU: 5403395

Item no. 5403395 | EAN 4012197378035

Product description

Product description

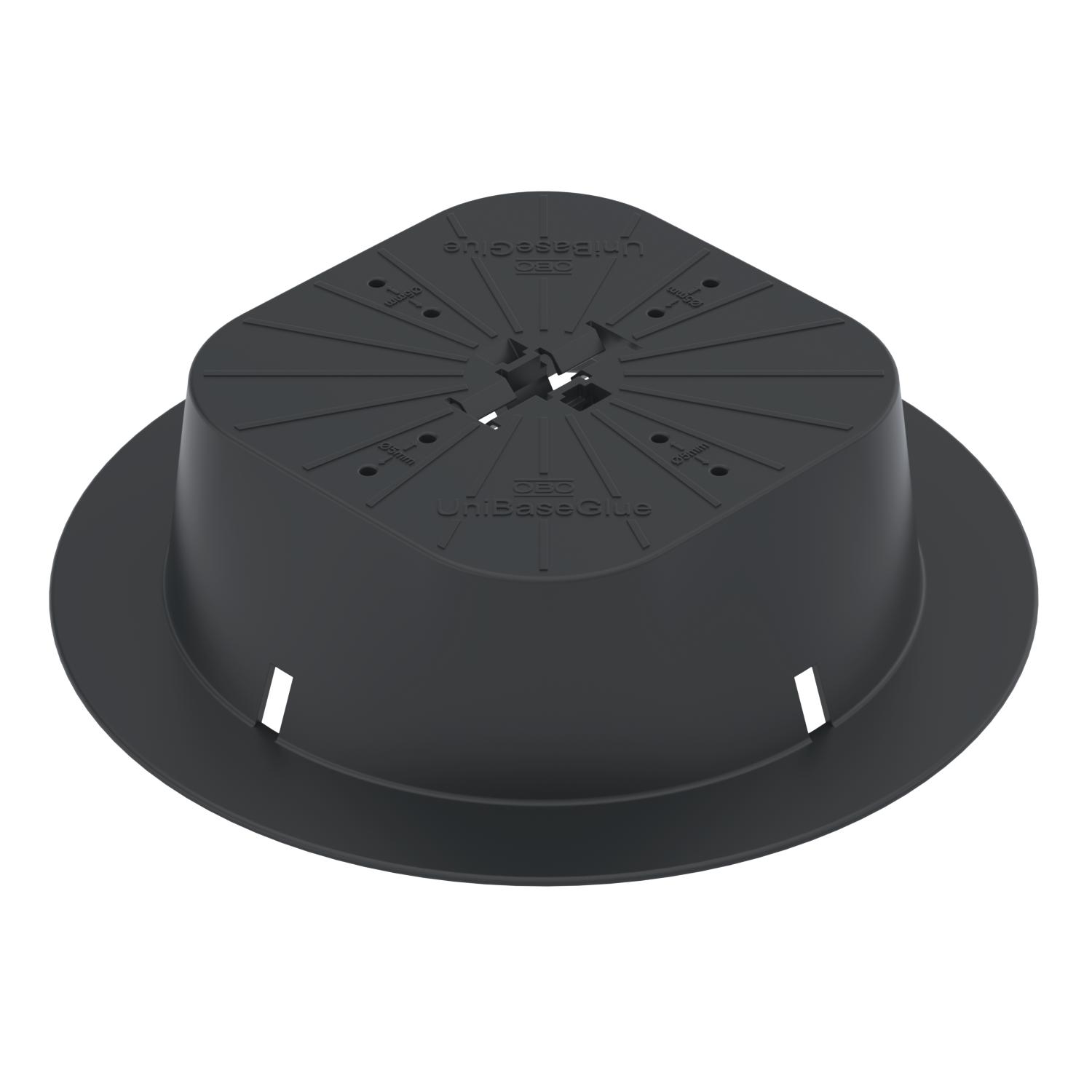

Universal stand for gluing on flat roofs. Can be used for routing cables with cable trays or mesh cable trays in conjunction with 165 MBG HGRM roof conductor holders. Gluing collar must be selected according to the substrate.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0088 kg CO2e / 1 Piece
Colour	Black

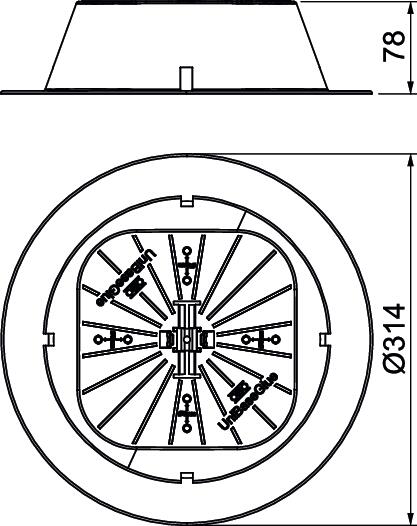

Diameter	314 mm
Fit	5 mm

Height	78 mm
Length	314 mm
Material	Acrylnitrile-styrene-acrylester
Width	314 mm

All types

All types

Types		Item no.	Quantity	SSU
UniBase Glue		5403395	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Adapter for TP 45 support profile	UniBase TMP	5403397	piece	1 piece

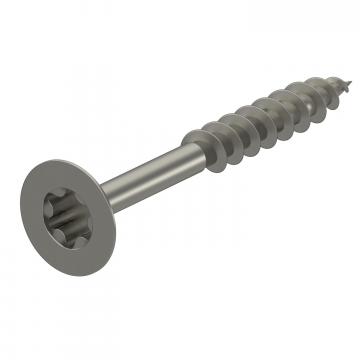

Chipboard screw, with Torx, countersunk head, stainless steel	OTSC 6,0x40 A4	3191082	piece	100 piece

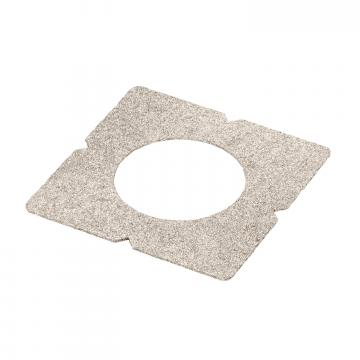

Fastening sleeve UniBase Glue Bit	UniBase Glue Bit	5403410	piece	1 piece

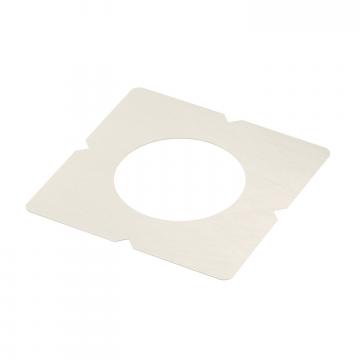

Fastening sleeve UniBase Glue FPO	UniBase Glue FPO	5403412	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886	piece	50 piece
Flat conductor adapter for roof conductor holder, type 165/MBG	165 MBG HFL	5218885	piece	12 piece
Chipboard screw, with Torx, panhead, stainless steel	OTSP 6,0x40 A4	3191032	piece	100 piece
