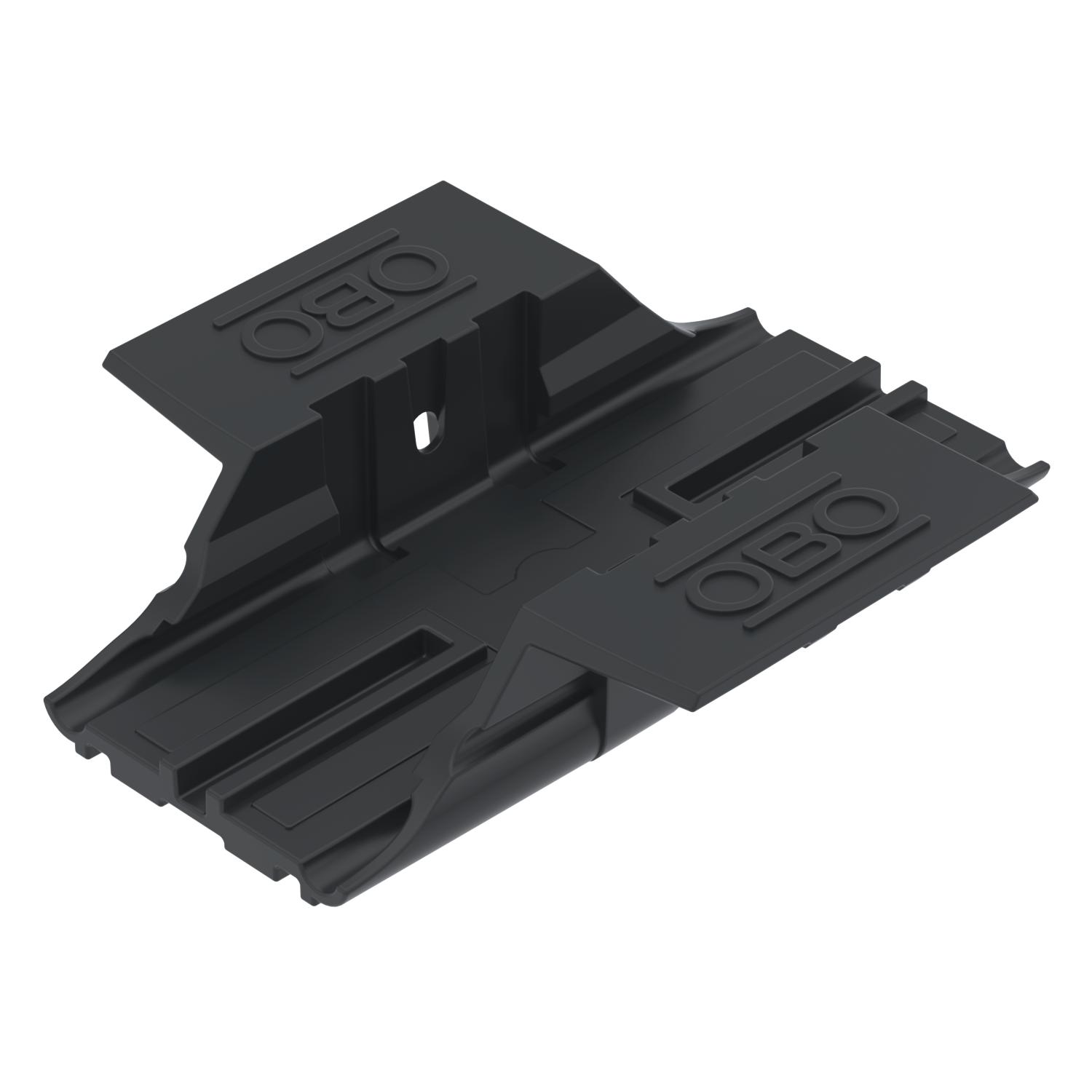

Adapter for TP 45 support profile
Item no. 5403397 | EAN 4012197368241
- Product description
-
Product descriptionAdapter for TP 45 support profile, for mounting on UniBase universal stand. Toolless mounting through snapping. With side holes for optional screwing and with base perforation for locking screw. Toolless mounting and dismantling of the support profile possible. With non-slip support surface. Depending on the installation, an additional screw-in fuse is possible with the UniBase.
-
- Technical data
-
Technical data

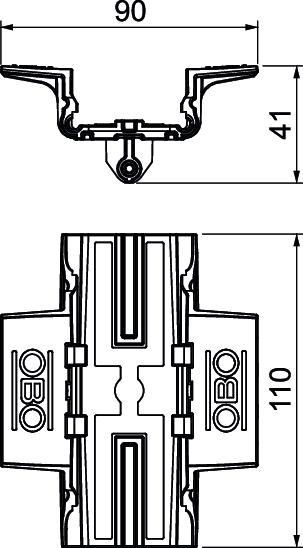

Accessories yes CO2 Footprint (GWP) Cradle-to-Gate 0,0148 kg CO2e / 1 Piece Colour Black Height 42 mm Length 110 mm Material Acrylnitrile-styrene-acrylester Spare part no Width 90 mm - All types
- Downloads
-
Data sheet UniBase TMP / 5403397 , 0.14MB , pdfREACH Declaration of conformity UniBase TMP / 5403397 , 0.12MB , pdfRoHS Declaration of conformity UniBase TMP / 5403397 , 0.13MB , pdfMounting instructions PV mounting systems Magic PV Flat Glue , 3.57MB , pdfMounting instructions PV mounting systems Magic PV Flat Pro , 5.26MB , pdf
