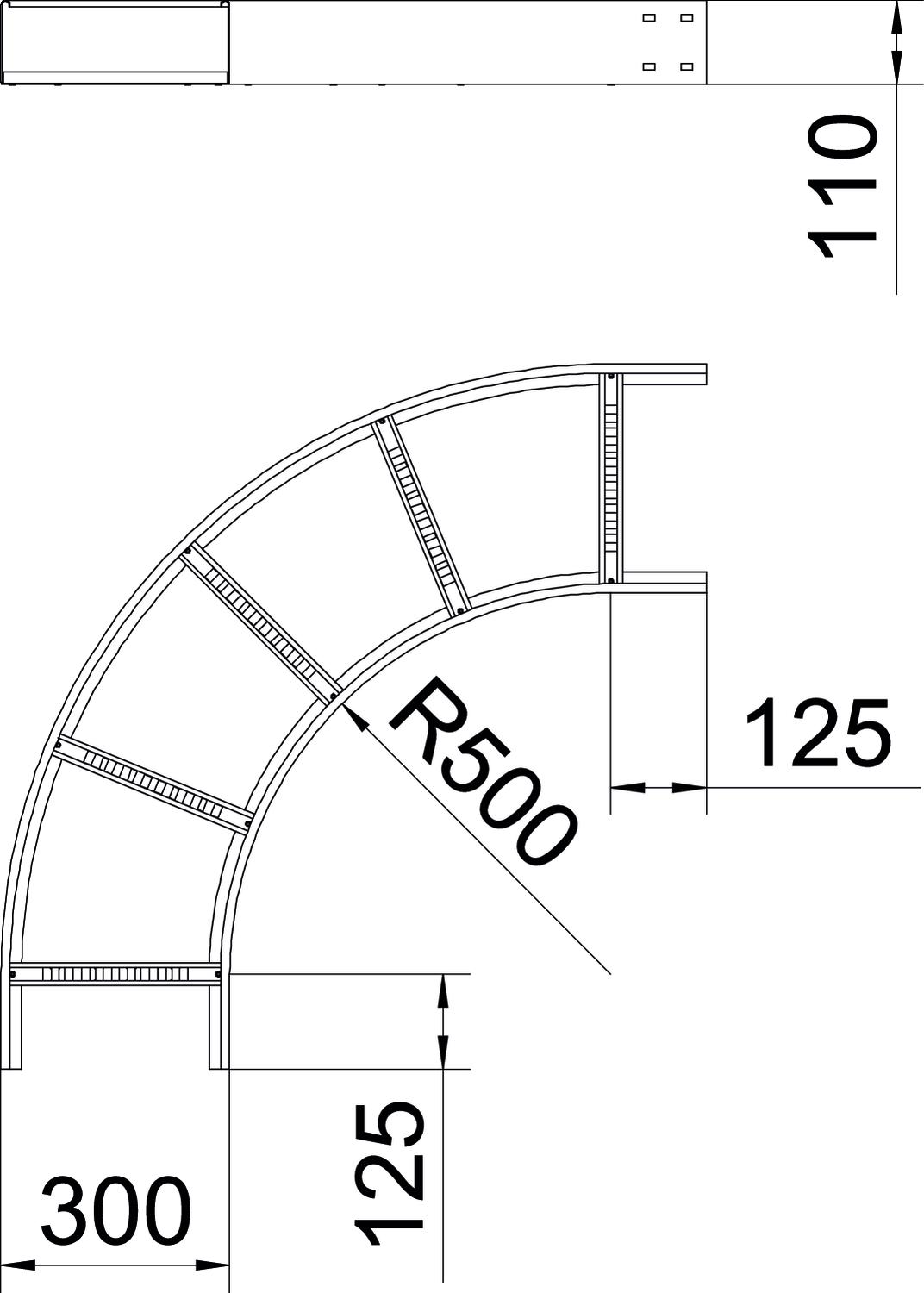

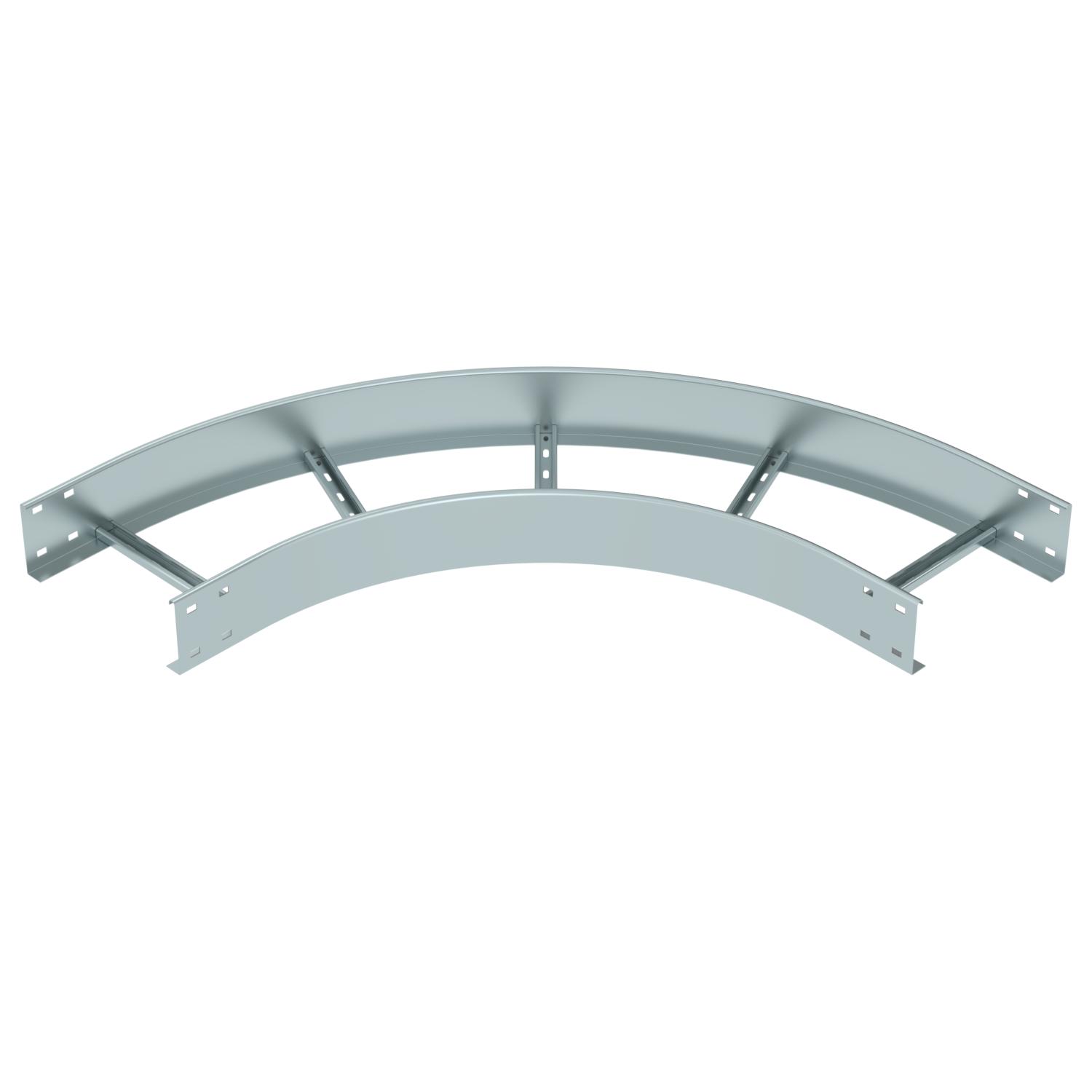

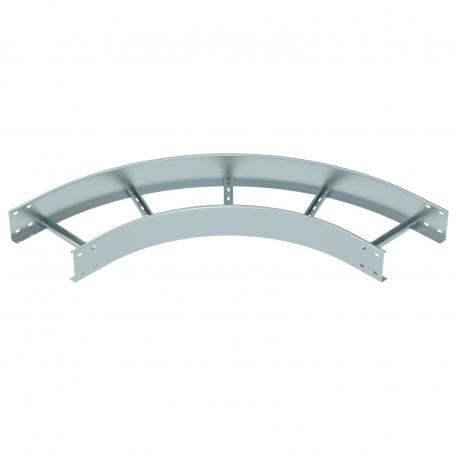

90° bend 110 FS
Item no. 6217684 | EAN 4012196685110
- Product description
-
Product description90° bend, horizontal, for all wide span cable ladders of 110 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 15,3606 kg CO2e / 1 Piece Colour zinc Dimension 110x300 Dimension B 300 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 110 FS 6216545 10 piece - Downloads
-
Data sheet LB 90 1130 R5 FS / 6217684 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LB 90 1130 R5 FS / 6217684 , 0.10MB , pdfUK Declaration of Conformity LB 90 1130 R5 FS / 6217684 , 0.09MB , pdfREACH Declaration of conformity LB 90 1130 R5 FS / 6217684 , 0.12MB , pdfRoHS Declaration of conformity LB 90 1130 R5 FS / 6217684 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
