90° bend 15 FT, shipbuilding
Item no. 7061145 | EAN 4012196223879
- Product description
-

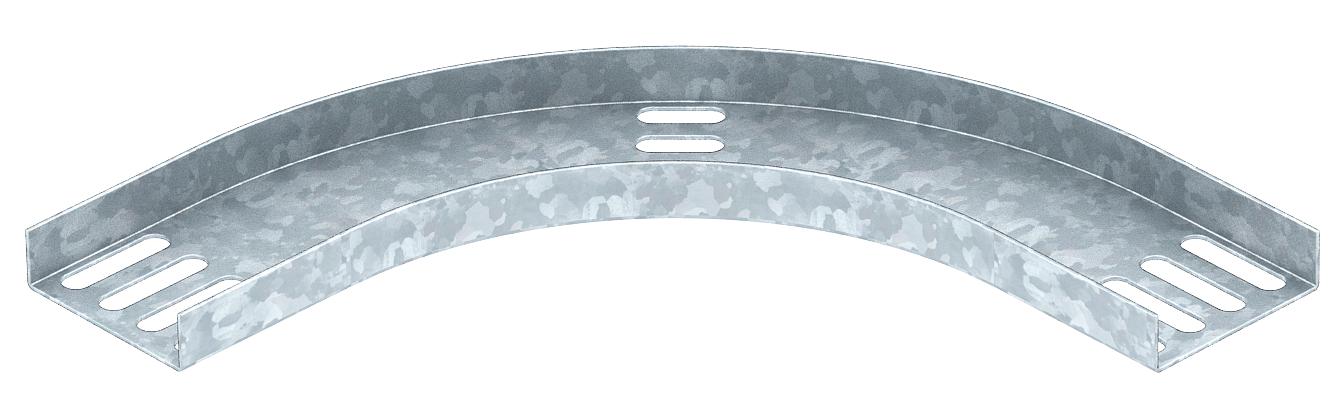

Product description90° horizontal bend, for all ship construction cable tray types, produced according to the marine standard VG 88900-2.
-
- Technical data
-
Technical data

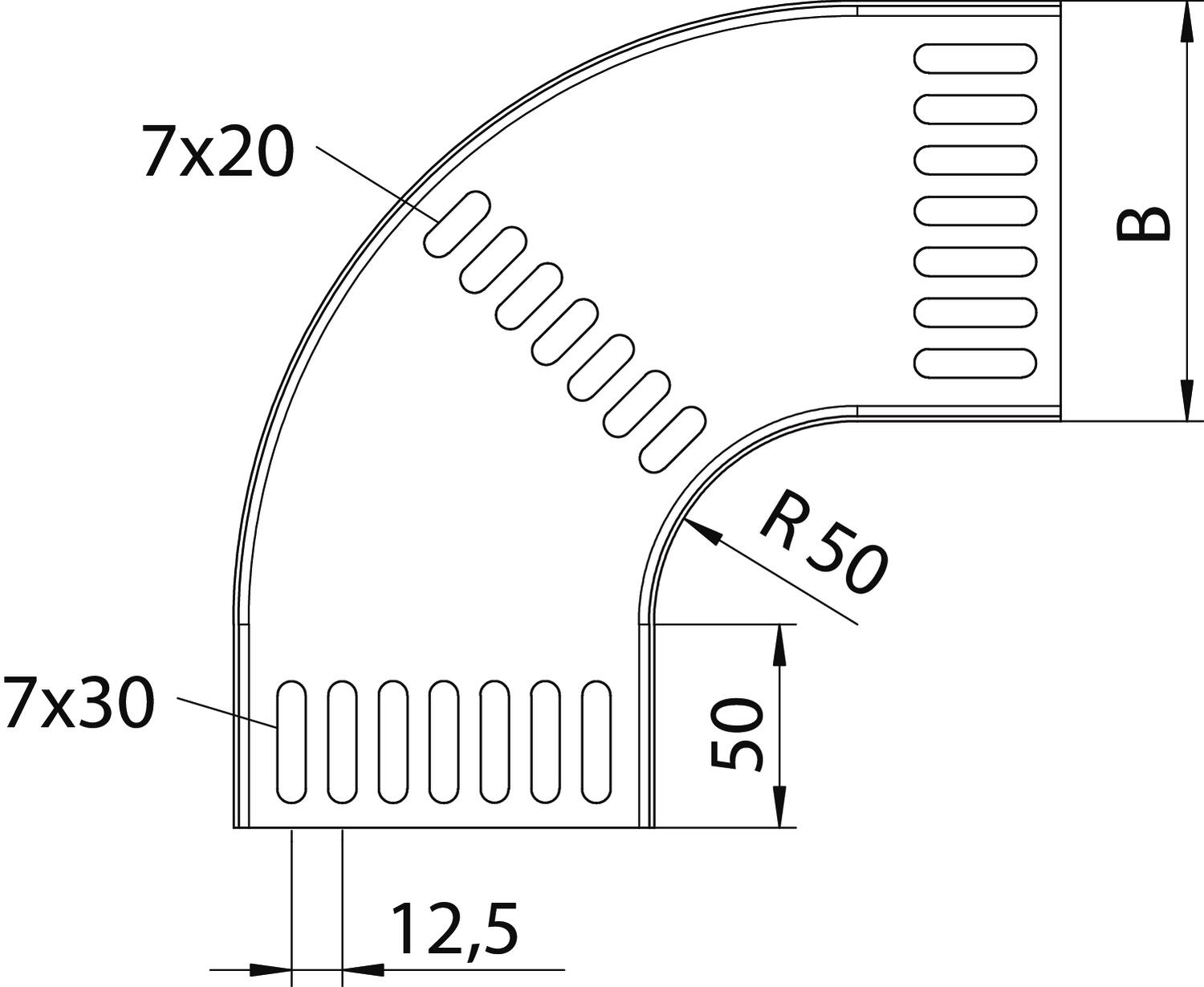

Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 0,6136 kg CO2e / 1 Piece Colour zinc Connector version Without connectors Dimension B50mm Dimension B 51 mm Height 15 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern yes Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Bend, rigid Type of connector, cable support system Screwed Wide-span version no Width 51 mm - All types
- Downloads
-
Data sheet MKRB 90 15 050FT / 7061145 , 0.17MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity MKRB 90 15 050FT / 7061145 , 0.11MB , pdfREACH Declaration of conformity MKRB 90 15 050FT / 7061145 , 0.12MB , pdfRoHS Declaration of conformity MKRB 90 15 050FT / 7061145 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
