90° bend 60 FS

Item no. 6225039 | EAN 4012197441524

1.5 mm
Product description
Product description

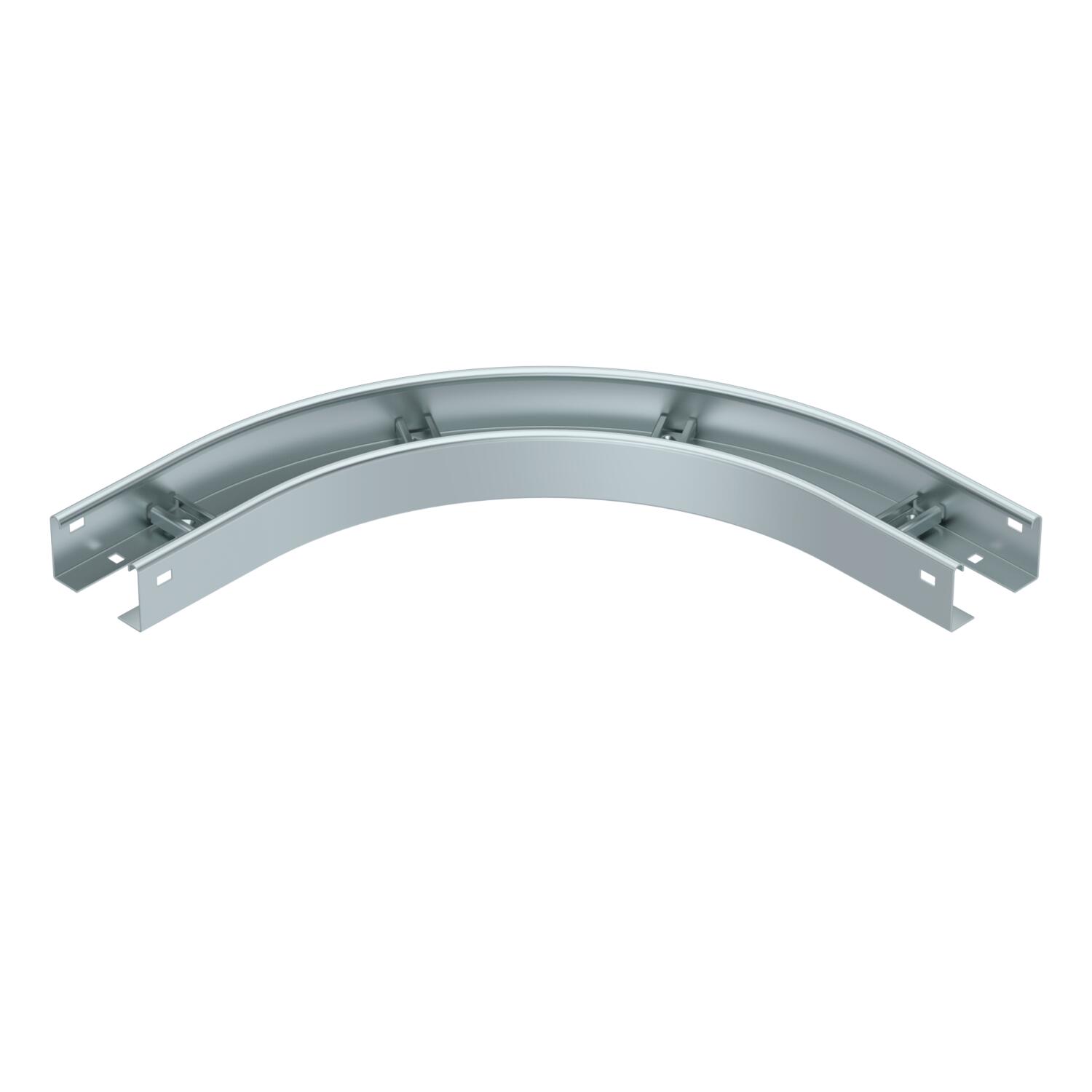

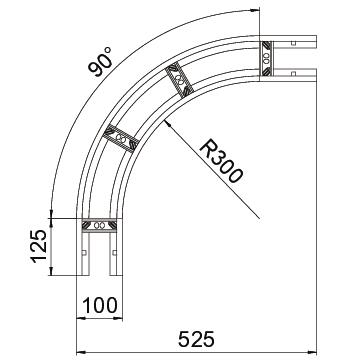

90° horizontal bend, with welded-on rung, for all cable ladder types with a 60 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • CO₂ footprint (PCF)
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
CO2 Footprint (GWP) Cradle-to-Gate 5,255 kg CO2e / 1 Piece
Colour zinc
Connector version Without connectors
Dimension 60x100
Height 60 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Strip galvanized
Version of the rungs Profile perforated
Wide-span version no
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LB 90 610 R3 FS - 1.5 mm 6225039
1 piece
LB 90 620 R3 FS 200 mm 1.5 mm 6225042
1 piece
LB 90 630 R3 FS 300 mm 1.5 mm 6225044
1 piece
LB 90 640 R3 FS 400 mm 1.5 mm 6225046
1 piece
LB 90 650 R3 FS 500 mm 1.5 mm 6225048
1 piece
LB 90 660 R3 FS 600 mm 1.5 mm 6225050
1 piece
