90° bend 60 FT | 1.5
morepic-1 morepic-2

90° bend 60 FT

Item no. 6225059 | EAN 4012197441494

1.5 mm
Product description
Product description

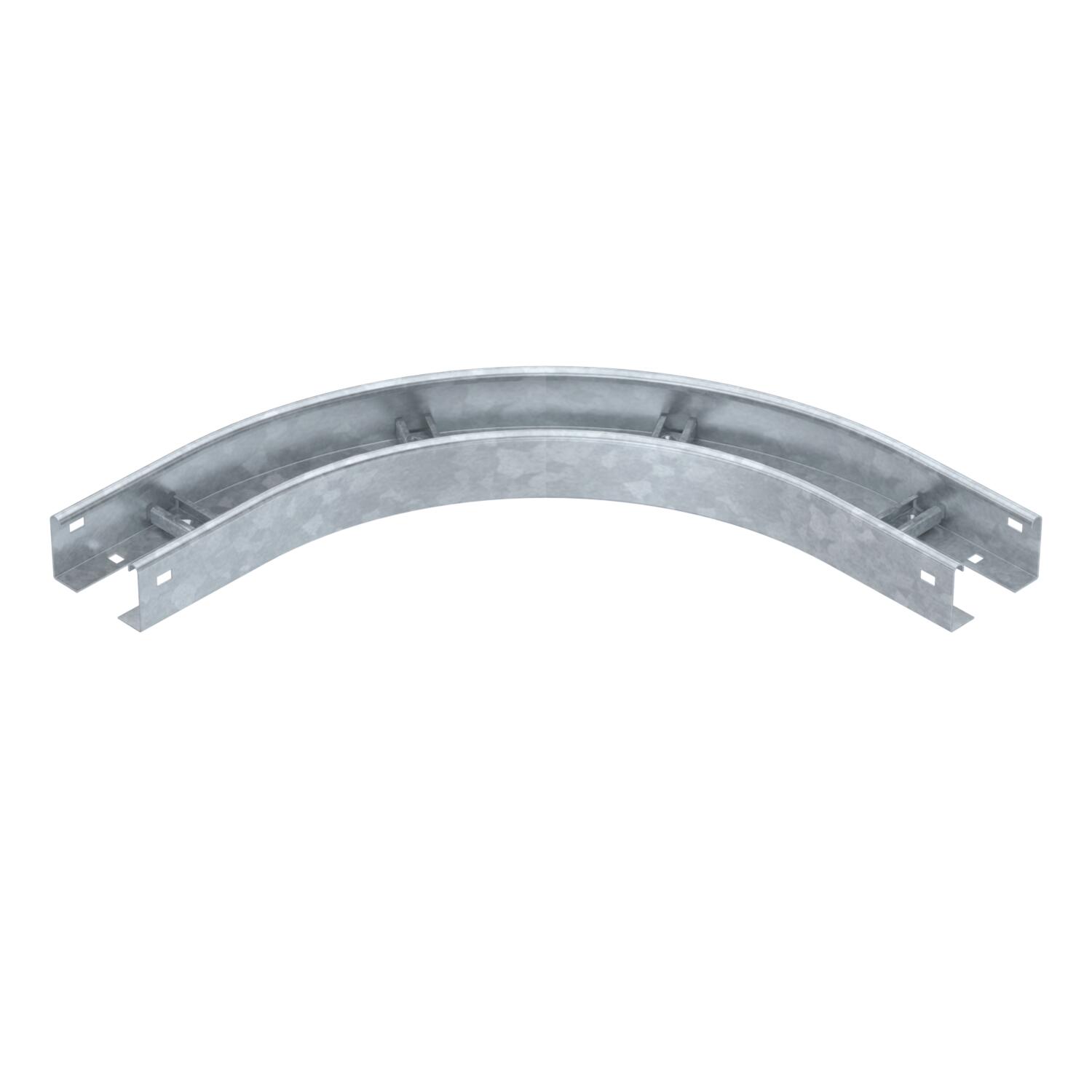

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • CO₂ footprint (PCF)
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
CO2 Footprint (GWP) Cradle-to-Gate 5,2038 kg CO2e / 1 Piece
Colour zinc
Connector version Without connectors

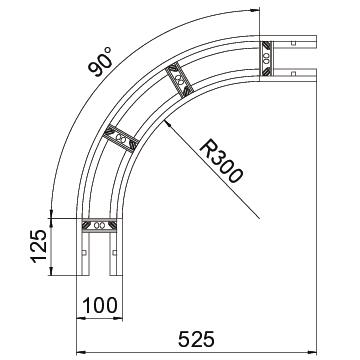

Dimension 60x100
Height 60 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile perforated
Wide-span version no
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LB 90 610 R3 FT - 1.5 mm 6225059
1 piece
LB 90 620 R3 FT 200 mm 1.5 mm 6225062
1 piece
LB 90 630 R3 FT 300 mm 1.5 mm 6225064
1 piece
LB 90 640 R3 FT 400 mm 1.5 mm 6225066
1 piece
LB 90 650 R3 FT 500 mm 1.5 mm 6225068
1 piece
LB 90 660 R3 FT 600 mm 1.5 mm 6225070
1 piece
Downloads

Download

Download
Download

EU declaration of conformity LB 90 610 R3 FT / 6225059 , 0.10MB , pdf
Download
UK Declaration of Conformity LB 90 610 R3 FT / 6225059 , 0.09MB , pdf
Download

Download

LB 90 610 R3 FT / 6225059
