A2 barrier strip connector
Item no. 6067970 | EAN 4012195694724
- Product description
-
Product description

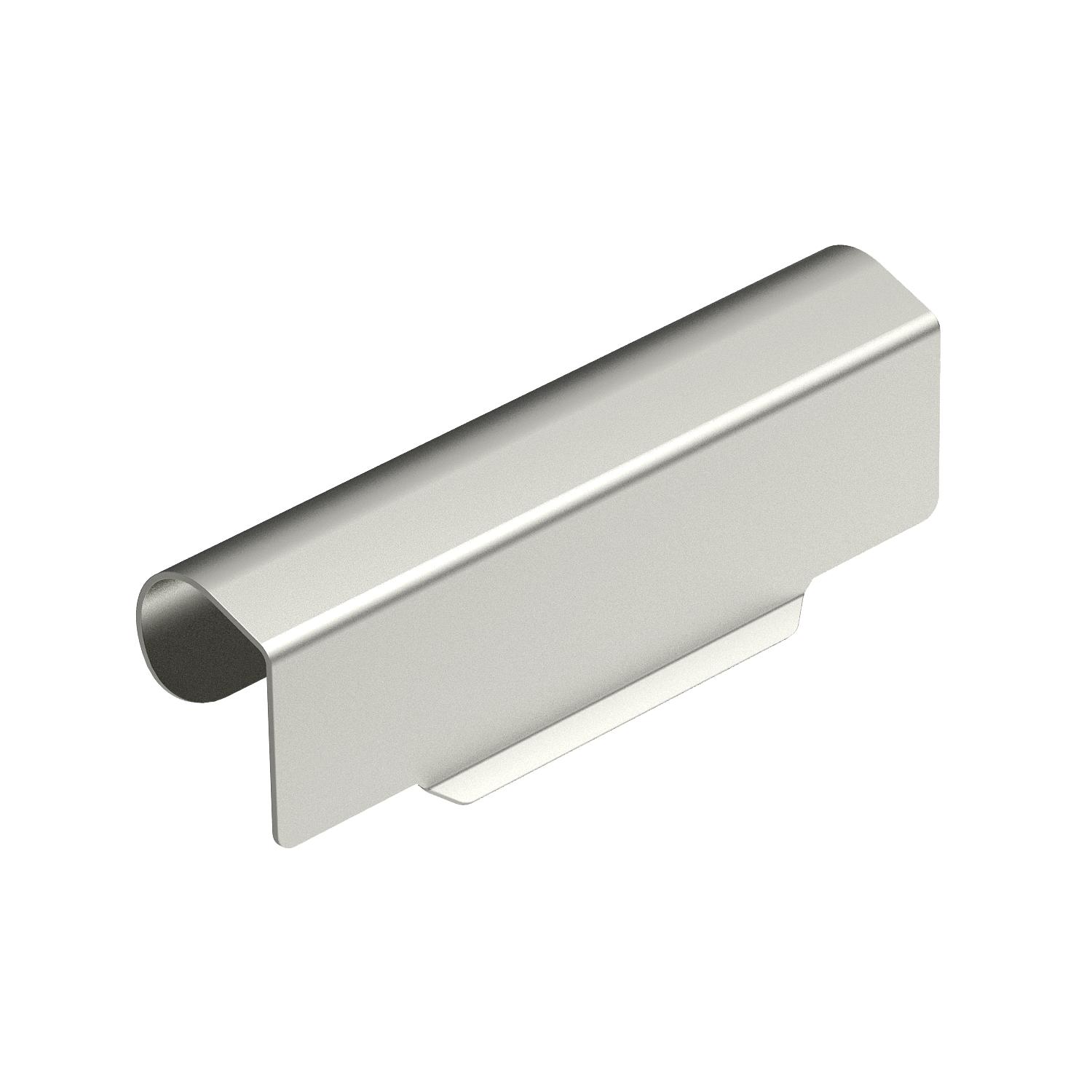

Separating retainer connector for screwless connection of the TSG separating retainer in all side heights.
-
- Technical data
-
Technical data
Fastening type Clamp fastening Maintain electrical functions no Material Stainless steel Plate thickness 0,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Surface Bright, treated Dimensions

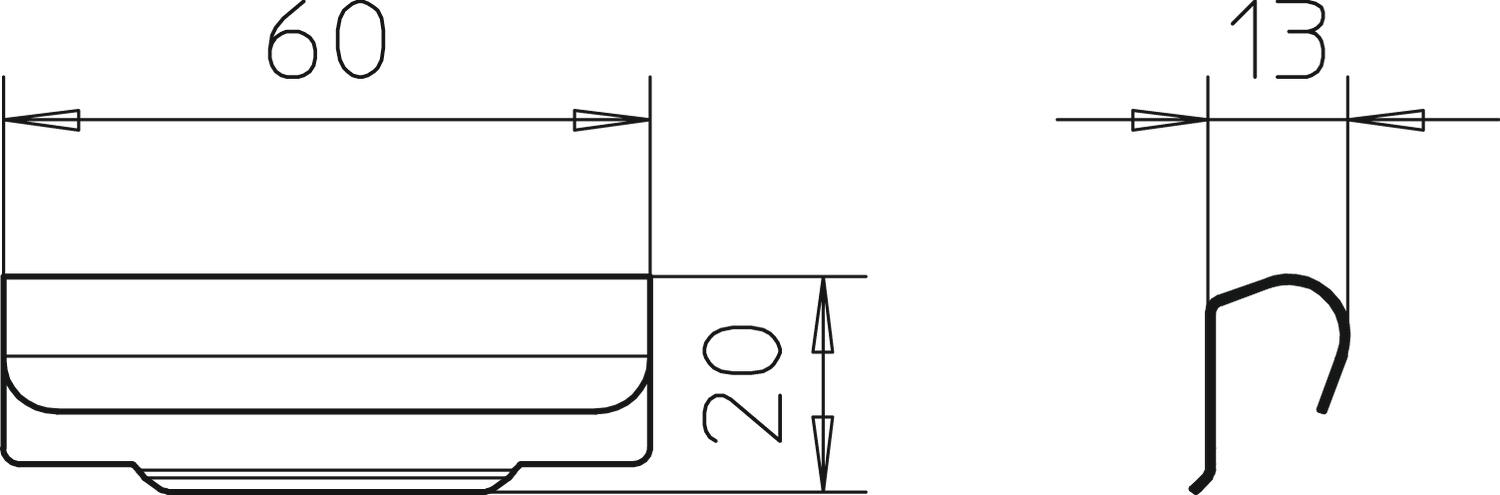

Height 15 mm Length 60 mm Width 20 mm - All types
- Downloads
-
Data sheet TSGV A2 / 6067970 , 0.32MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity TSGV A2 / 6067970 , 0.15MB , pdfUK Declaration of Conformity TSGV A2 / 6067970 , 0.14MB , pdfREACH Declaration of conformity TSGV A2 / 6067970 , 0.12MB , pdfRoHS Declaration of conformity TSGV A2 / 6067970 , 0.12MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 0.31MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.22MB , pdf
