Accessory mounting box BRK GD, single
Item no. 6133577 | EAN 4012196716753
- Product description
-

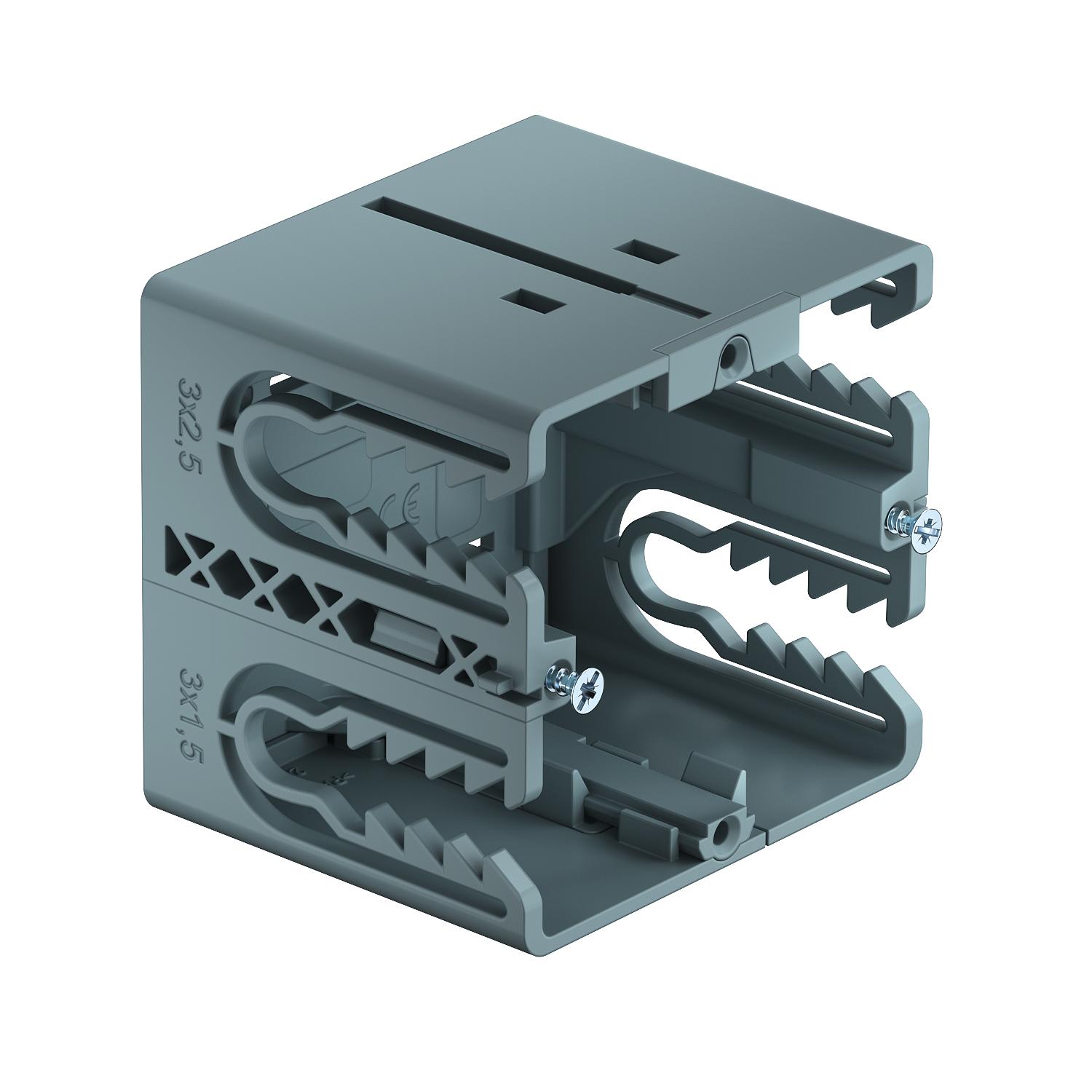

Product descriptionSingle Signa accessory mounting box for the connection of power and data technology in the trunking systems Signa Base/Signa Style. Easy refitting to data socket.
Toolless mounting through a fastening lock and time-saving cable connection.
-
- Technical data
-
Technical data

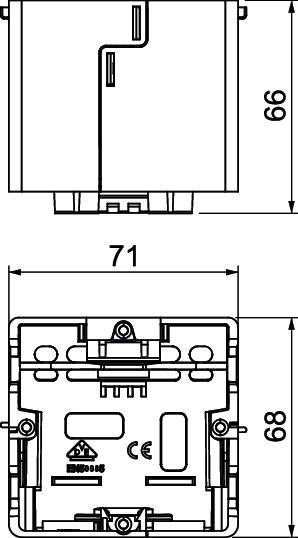

Accessory mounting type Bolts Box mounting type Rear wall CO2 Footprint (GWP) Cradle-to-Gate 0,3173 kg CO2e / 1 Piece Colour Blue grey; RAL 7031 Device type With support ring/support clamp Dimension 66x68x71 Fastening track Other Halogen-free yes Height 66 mm Length 71 mm Material Polyamide Number of units 1 Strain relief option yes Version for Closed Width 68 mm With connection compartment yes - All types
- Downloads
-
Data sheet BRK GD gr / 6133577 , 0.20MB , pdfEU declaration of conformity BRK GD gr / 6133577 , 0.10MB , pdfREACH Declaration of conformity BRK GD gr / 6133577 , 0.12MB , pdfRoHS Declaration of conformity BRK GD gr / 6133577 , 0.12MB , pdfMounting instructions Accessory mounting box BRK GD , 9.03MB , pdfNo invitation to tender text is available for this product.
