Adapter for PV module mounting, trapezoidal roof
Item no. 5901904 | EAN 4012197463236
- Product description
-

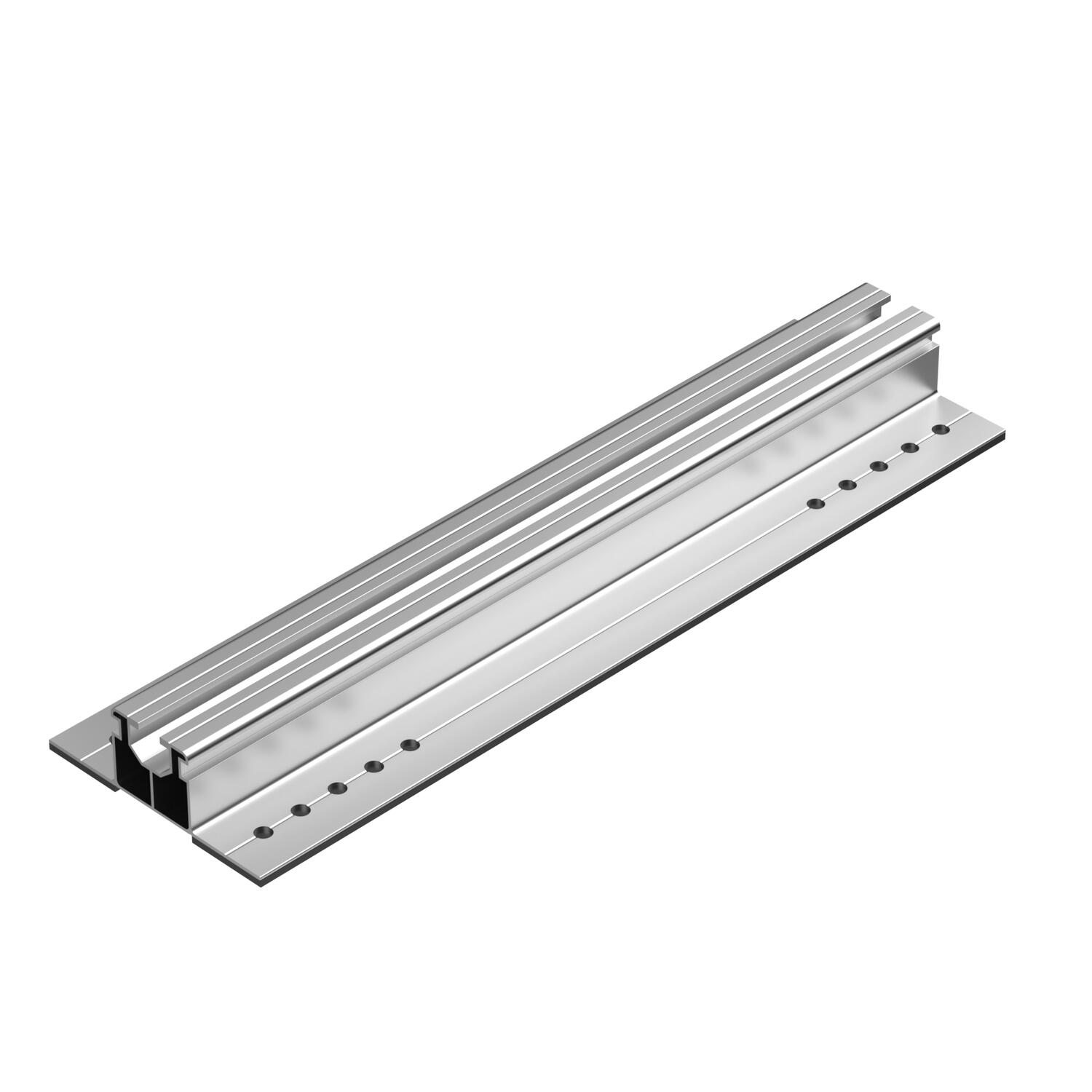

Product descriptionShort profile rail for mounting PV modules on trapezoidal roofs. Suitable for the universal terminal type KLU. With pre-mounted slip-resistant sealing mat, including fastening material.
- Technical data
-
Technical data

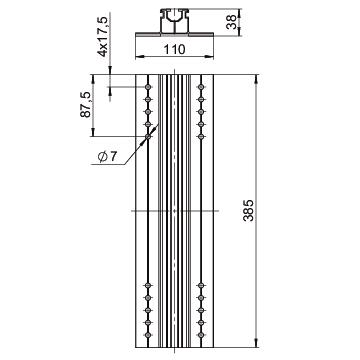

Accessories yes Cable duct optional no Cable duct, integrated no Dimension 110x35x385 Height 38 mm Length 385 mm Material Aluminium Section modulus Sx 3680 mm³ Section modulus Sy 3760 mm³ Spare part no Suitable for a type of renewable energy generation Photovoltaics Surface Bright Width 110 mm - All types
- Downloads
-
Data sheet ADU TPD ALU / 5901904 , 0.18MB , pdfNo invitation to tender text is available for this product.
