Adapter plate for cable support system
Item no. 6290456 | EAN 4012196427451
- Product description
-
Product description

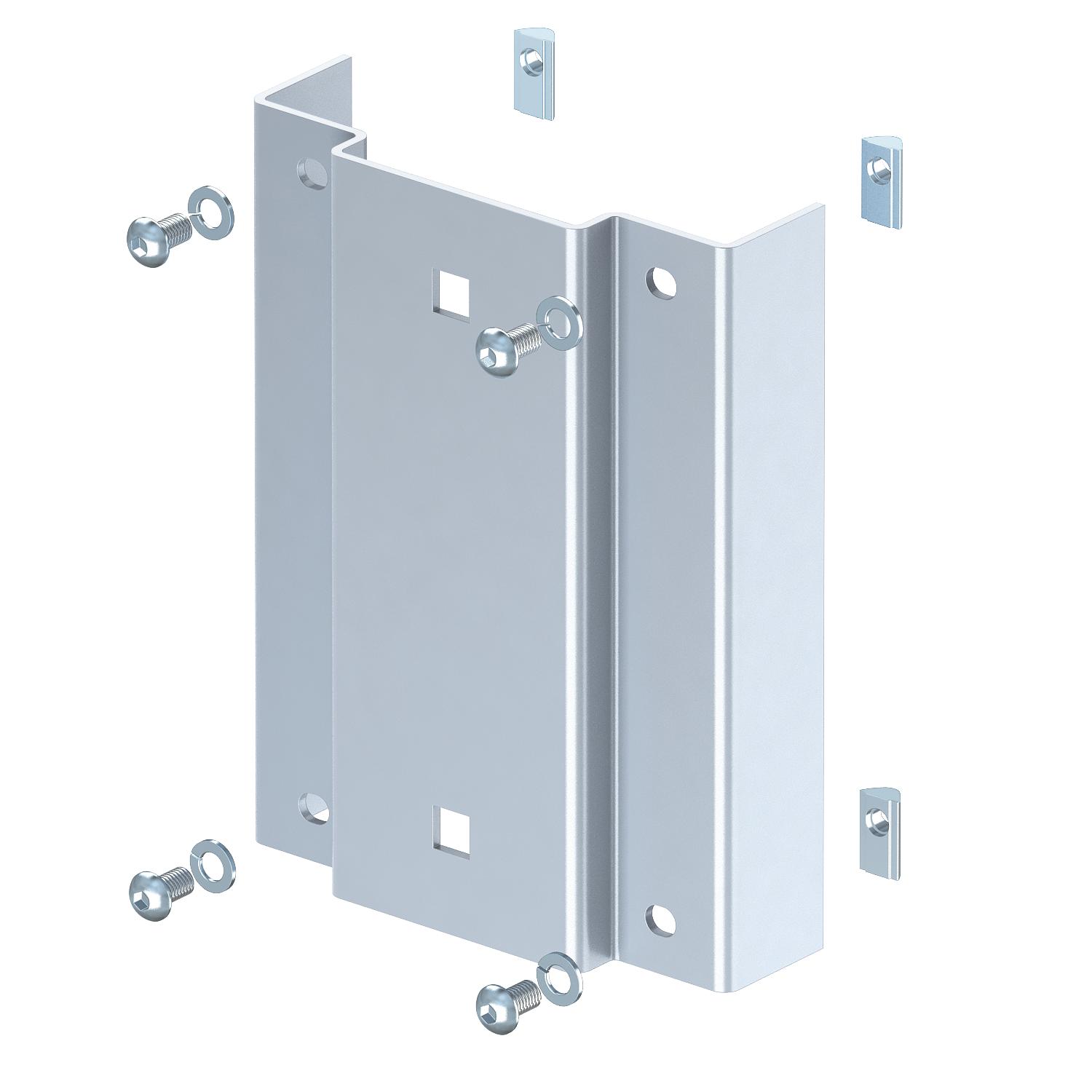

Adapter plate for mounting of a bracket for a cable support system to the ISS industrial service pole. Mounting instructions are included. Please observe the maximum load values. The bracket was tested with the adapter plate on the pole profile. The installation engineer must choose the ideal fastening system to match the substrate.
-
- Technical data
-
Technical data
Colour White aluminium; RAL 9006 Dimension 166x216x56 Fastening type Screw fastening Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Rustproof steel, pickled no Version for Vertical Dimensions

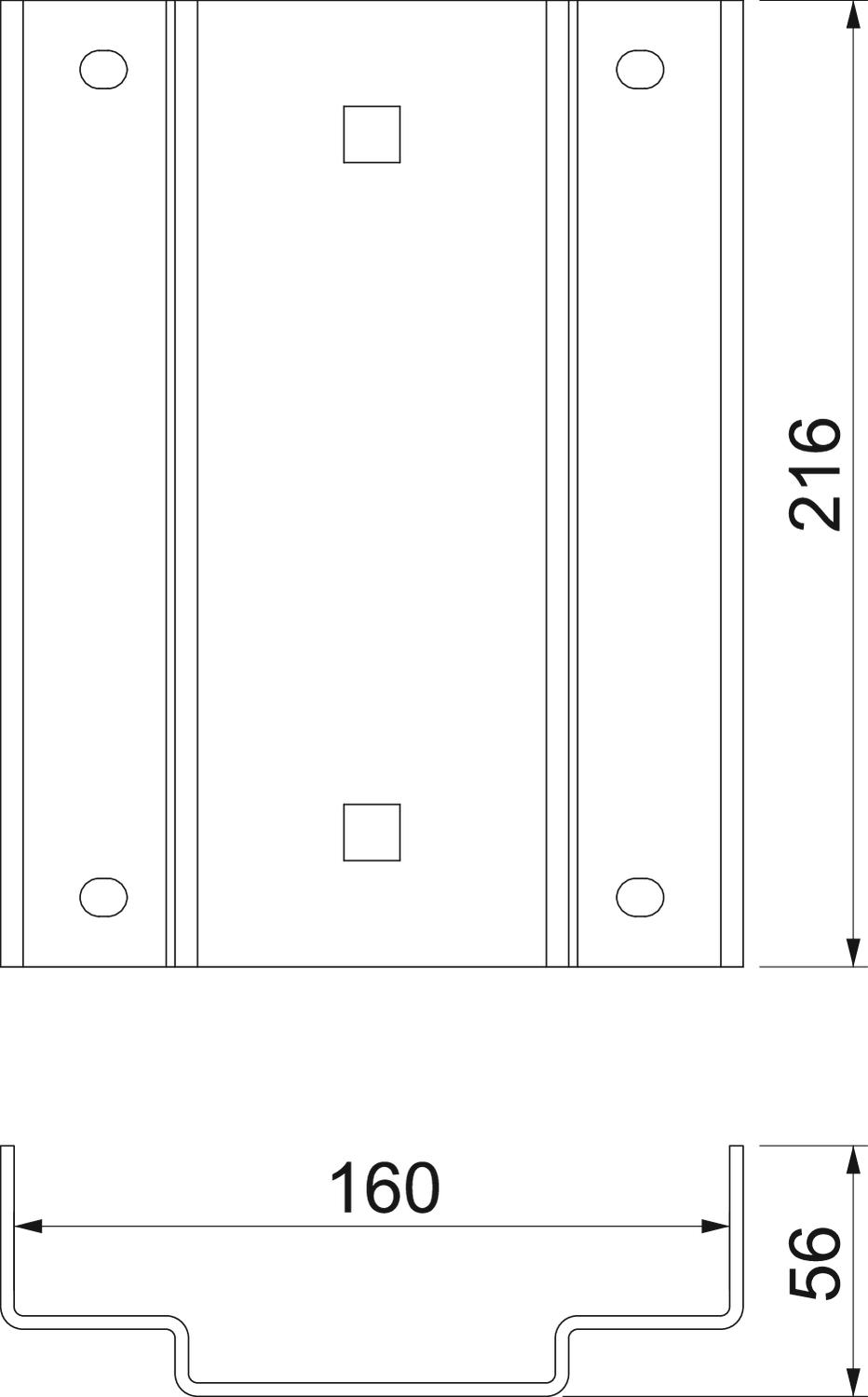

Height 56 mm Length 216 mm Width 166 mm Width 166 in - All types
- Downloads
-
Data sheet ISS160160APKTS / 6290456 , 0.36MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ISS160160APKTS / 6290456 , 0.13MB , pdfUK Declaration of Conformity ISS160160APKTS / 6290456 , 0.14MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdf
