Add-on tee 110 FS 200

morepic-1

morepic-2

Add-on tee 110 FS

Item no. 6098405 | EAN 4012196352395

Item no. / Types

Width

Product description

Product description

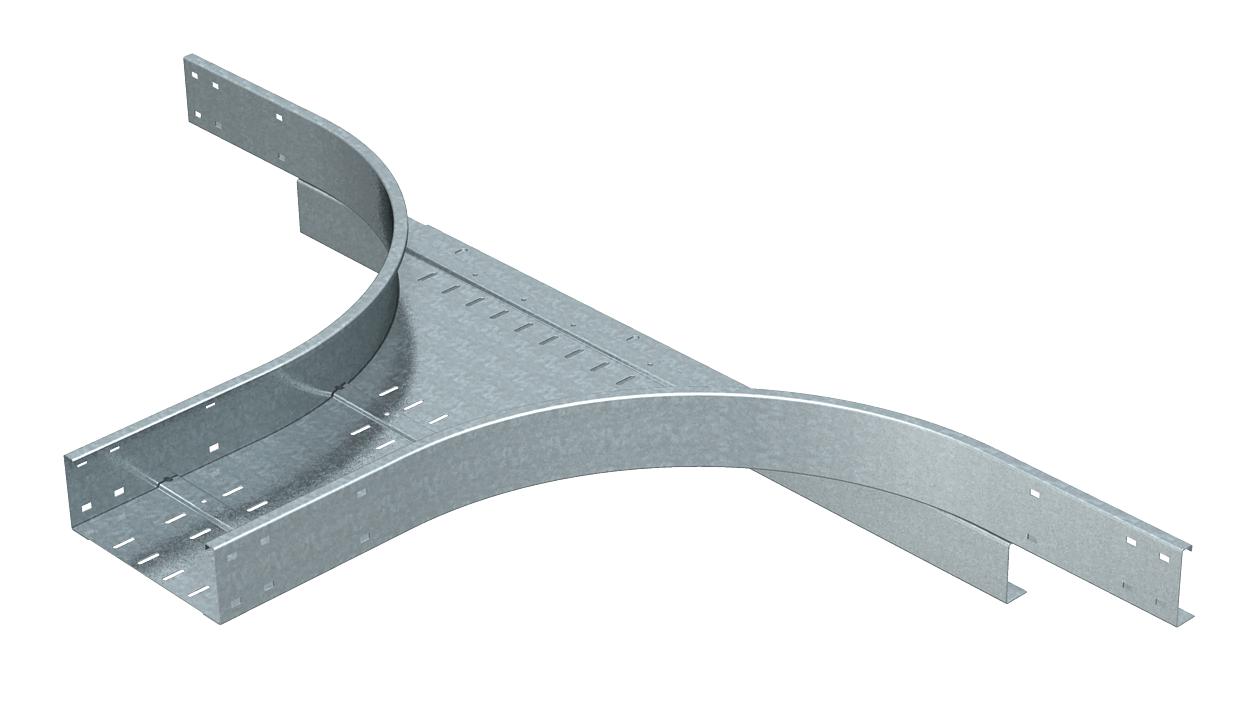

Add-on tee for horizontal use. For all wide span cable trays of 110 mm side height.

Technical data

Technical data

Connector version	Without connectors
Dimension	110x200
Material	Steel
Plate thickness	2 mm

Rustproof steel, pickled	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Wide-span version	yes

Dimensions

Dimension B	200 mm
Height	110 mm

Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
WRAA 120 FS	200 mm	6098405	piece	1 piece
WRAA 130 FS	300 mm	6098409	piece	1 piece
WRAA 140 FS	400 mm	6098413	piece	1 piece
WRAA 150 FS	500 mm	6098417	piece	1 piece
WRAA 160 FS	600 mm	6098421	piece	1 piece

Downloads

Data sheet WRAA 120 FS / 6098405 , 0.32MB , pdf

Declaration of conformity WRAA 120 FS / 6098405 , 0.16MB , pdf

REACH Declaration of conformity WRAA 120 FS / 6098405 , 0.12MB , pdf

Download

RoHS Declaration of conformity WRAA 120 FS / 6098405 , 0.12MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Product graphic WRAA 120 FS / 6098405, 44.80 kB, jpg

Scale drawing WRAA 120 FS / 6098405, 107.88 kB, jpg

WRAA 120 FS / 6098405

6098405_KSTP1.stp, 456.86 kB

Anbau-Abzweigstück WRAA 120 FS.rfa, 428.00 kB
