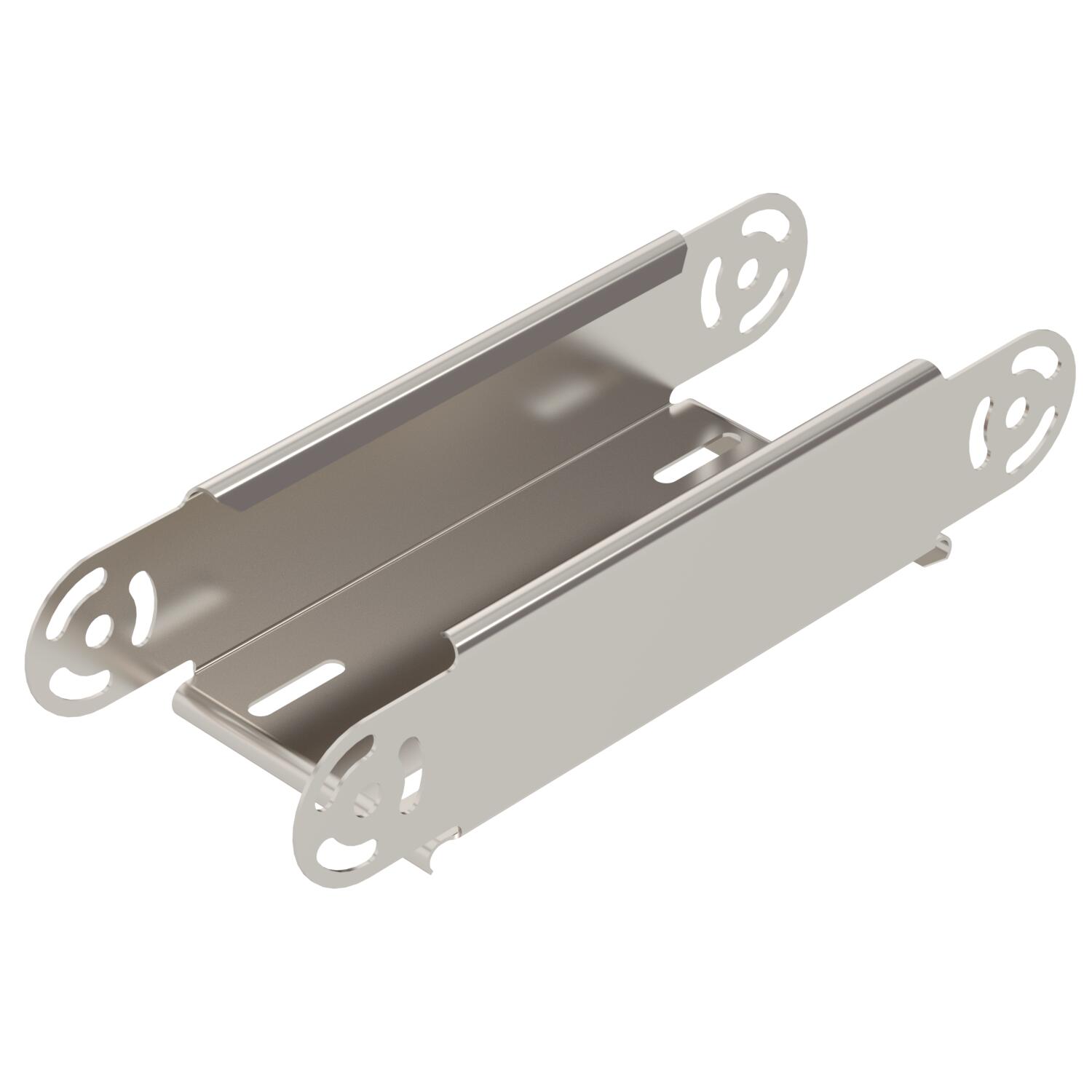

Adjustable bend element, vertical 60 A2
Item no. 7075651 | EAN 4012196804139
- Product description
-
Product descriptionAdjustable vertical bend element, for all cable tray types with a side height of 60 mm.
RGV 60 adjustable connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling CO2 Footprint (GWP) Cradle-to-Gate 3,9133 kg CO2e / 1 Piece Colour stainless steel Connector version Without connectors Dimension 60x100 Dimension B 100 mm Height 60 mm Maintain electrical functions no Material Stainless steel 1.4301 Mounting perforation in base no NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Bright, treated Type Adjustable bend element Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
All types
- Downloads
-
Data sheet RGBEV 610 A2 / 7075651 , 0.19MB , pdfEU declaration of conformity RGBEV 610 A2 / 7075651 , 0.10MB , pdfUK Declaration of Conformity RGBEV 610 A2 / 7075651 , 0.09MB , pdfREACH Declaration of conformity RGBEV 610 A2 / 7075651 , 0.12MB , pdfRoHS Declaration of conformity RGBEV 610 A2 / 7075651 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
