Air-termination rod fastening for metal roofs

Item no. 5403336 | EAN 4012197459741

Product description
Product description

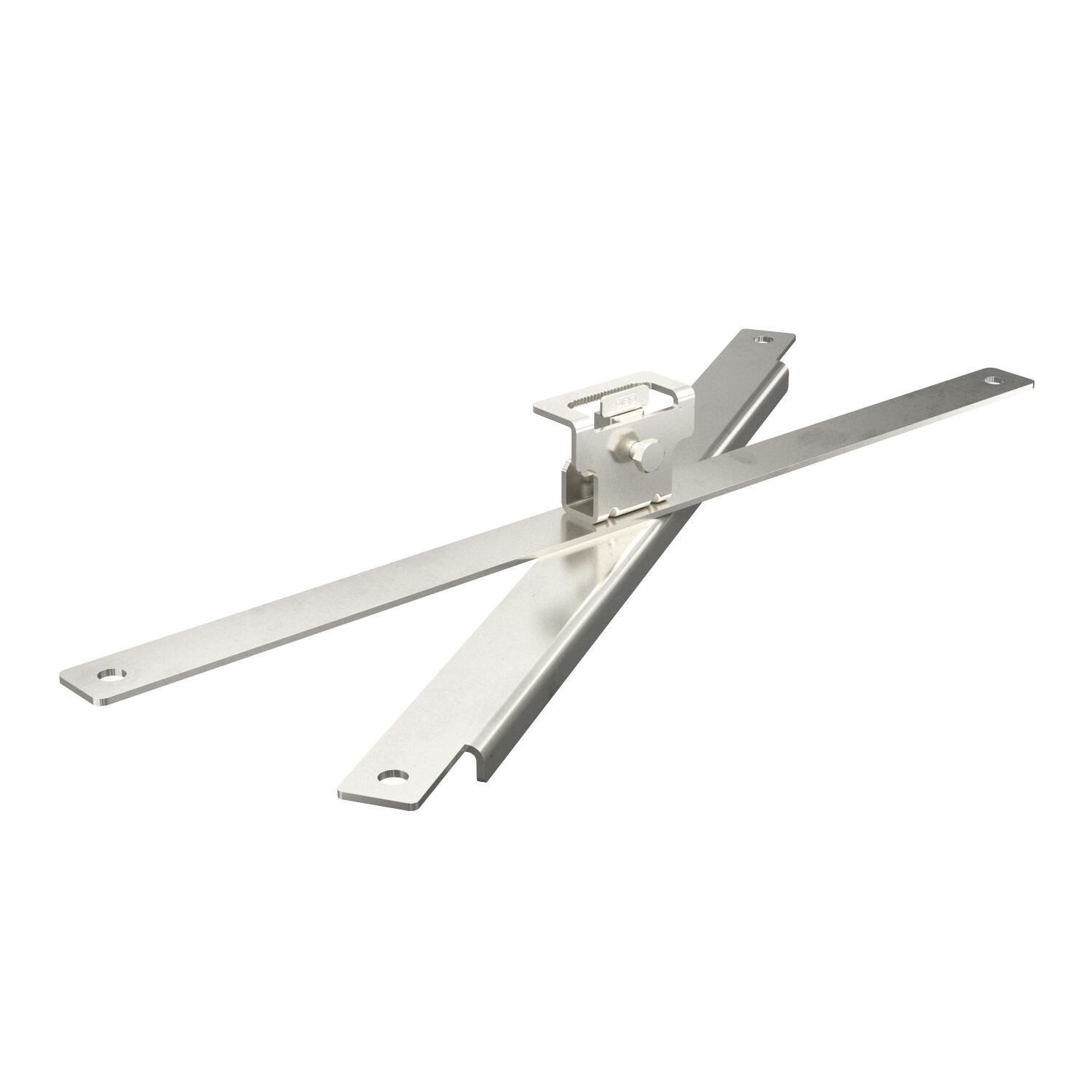

Air-termination rod for the easy, quick and secure fastening of Ø16mm air-termination rods on metal roofs.




• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Made from rustproof stainless steel A2
• Quick and easy mounting

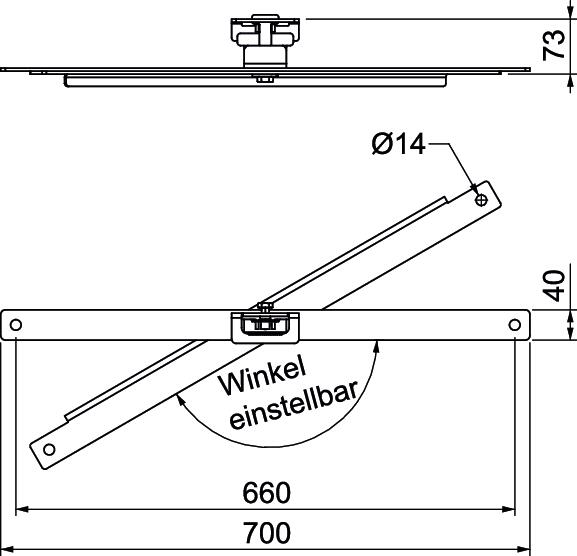

• Angle of air-termination rod adjustable
• Fastening cross adjustable to various fastening distances
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 16,2281 kg CO2e / 1 Piece
Material Stainless steel
All types

All types

Types Length Width Item no. Quantity SSU
F-FIX-MD 5403336
1 piece
Downloads

Download

Download

Download

No invitation to tender text is available for this product.
