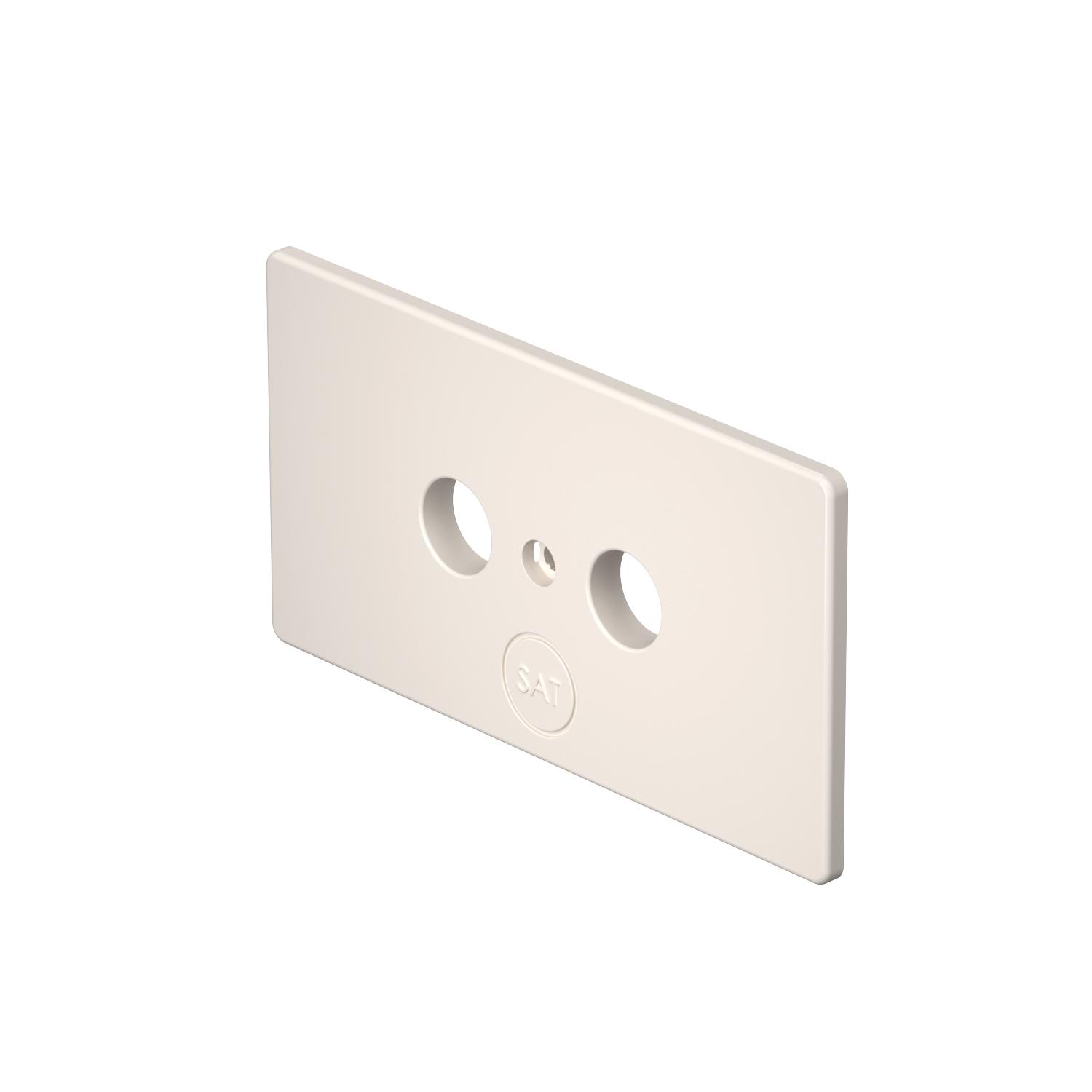

Antenna socket panel SL BL ANT

Item no. / Types

Colour

Product description

Product description

Antenna cover for the installation of antenna sockets in the device support of the skirting trunking. Cover for antenna socket.

For side closing of the device support.

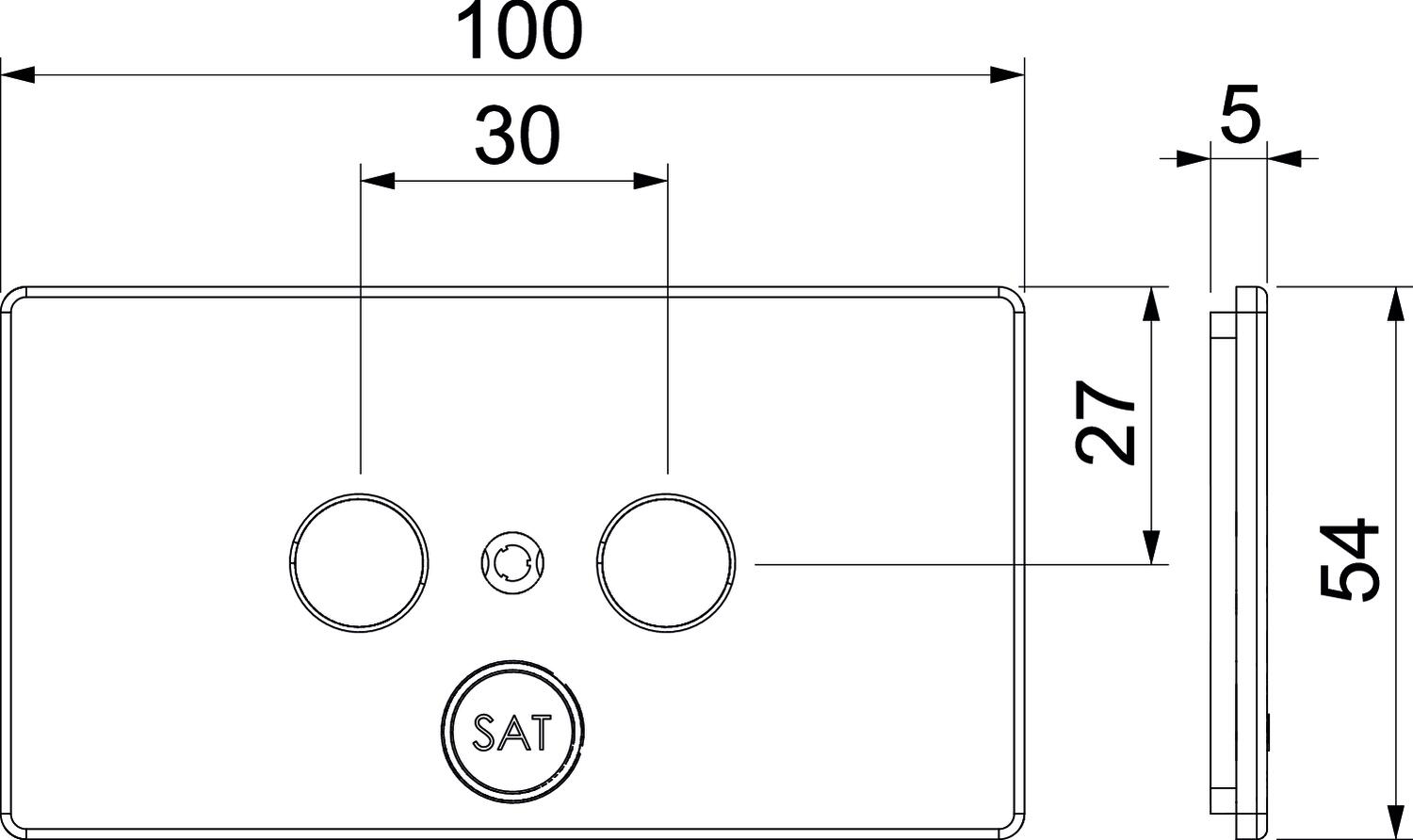

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,1196 kg CO2e / 1 Piece
Colour	Cream; RAL 9001
Halogen-free	no
Height	5 mm
Length	100 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Width	54 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
SL BL ANT cws	Cream; RAL 9001	6132195	piece	1 piece
SL BL ANT rws	Pure white; RAL 9010	6132258	piece	1 piece

Downloads

Data sheet SL BL ANT cws / 6132195 , 0.15MB , pdf

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

EU declaration of conformity SL BL ANT cws / 6132195 , 0.10MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

Mounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdf

No invitation to tender text is available for this product.
