Ballast plate for PV mounting systems, flat roofs
morepic-1 morepic-2

Ballast plate for PV mounting systems, flat roofs

Item no. 5901674 | EAN 4012197470319

Product description
Product description

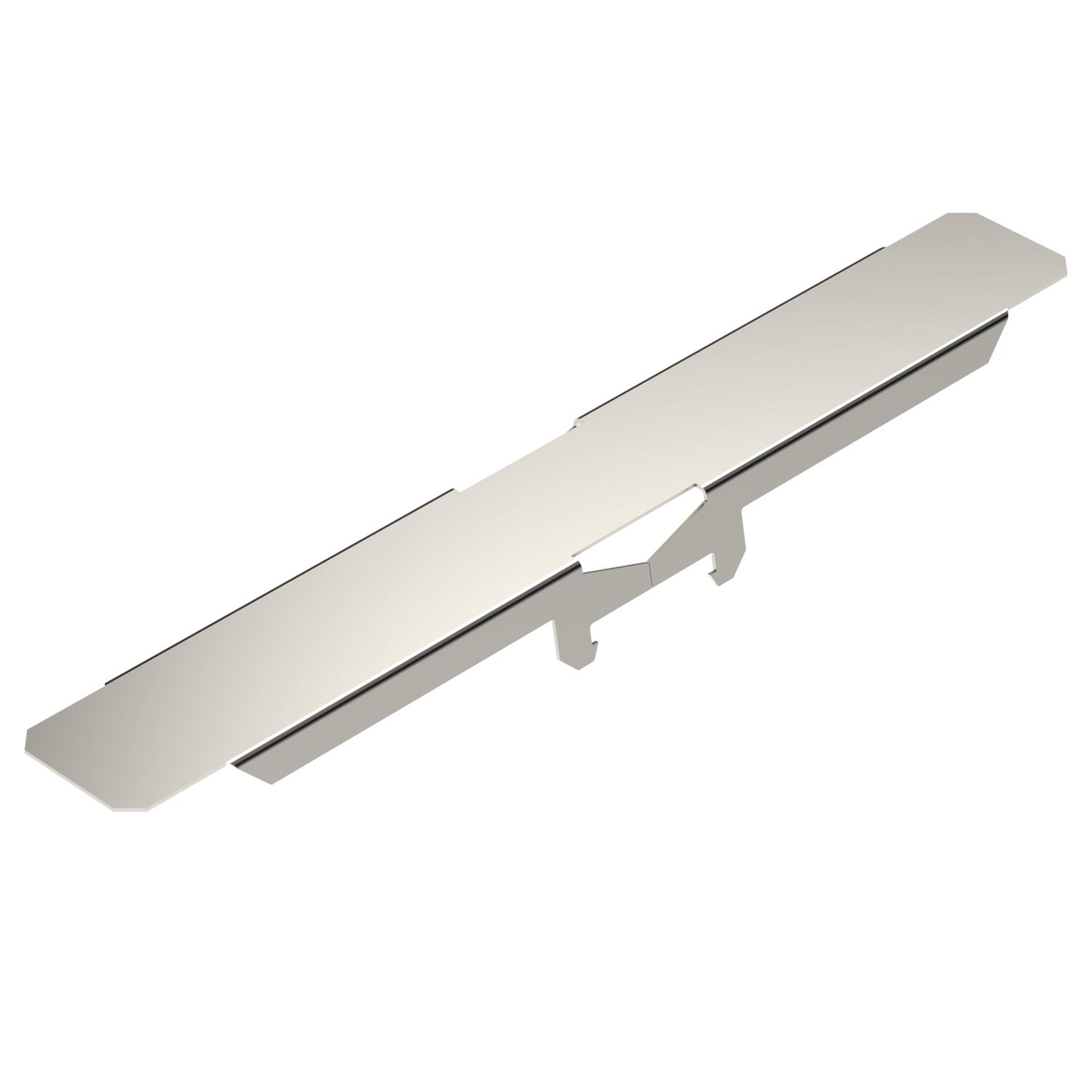

Metal ballast plate to take, for example, paving stones for ballasting PV mounting systems for flat roofs. Toolless installation by clamping onto truss profile rail, type TPF 35 and TP 45.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Accessories yes
Carrying depth for ballasting max. 200 mm
Carrying height for ballasting max. 100 mm
Carrying width for ballasting max. 100 mm
Colour zinc

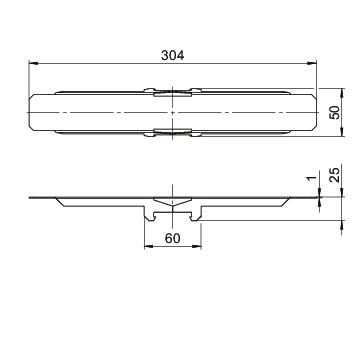

Dimension 304x51x25,5
Height 25,2 mm
Length 304 mm
Material Steel
Spare part no
Suitable for a type of renewable energy generation Photovoltaics
Surface Strip galvanised zinc/aluminium, Double Dip
Type of accessory Accessory/spare parts für renewable energy generation Other
Width 50,5 mm
All types

All types

Types Item no. Quantity SSU
BTP 35 DD 5901674
20 piece
Downloads

Download

No invitation to tender text is available for this product.
