Barrier strip, Z-shaped 100 FS
Item no. 6062390 | EAN 4012196341788
- Product description
-
Product description
Barrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
-
- Technical data
-
Technical data
Dimension 100x2x3000 Fastening perforation (ETIM) yes Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Version for Miscellaneous Dimensions

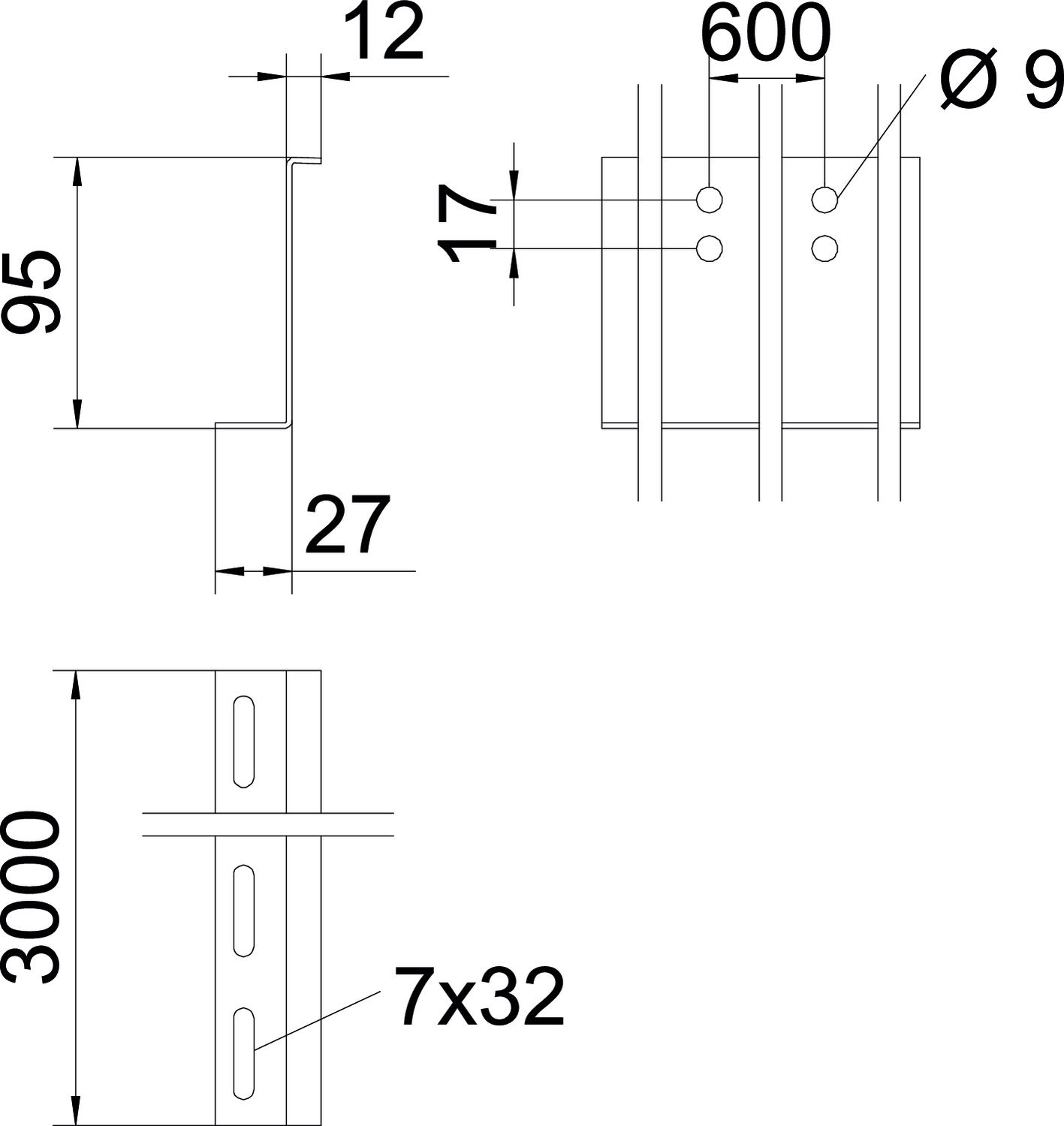

Dimension H 100 mm Dimension L 3000 mm Height 4 in Height 95 mm Length 10 ft Length 3000 mm Width 34 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet TSG100Z BKRS FS / 6062390 , 0.31MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity TSG100Z BKRS FS / 6062390 , 0.15MB , pdfUK Declaration of Conformity TSG100Z BKRS FS / 6062390 , 0.14MB , pdfREACH Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfRoHS Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Audi AG , 0.05MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for VW AG , 0.05MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdf
