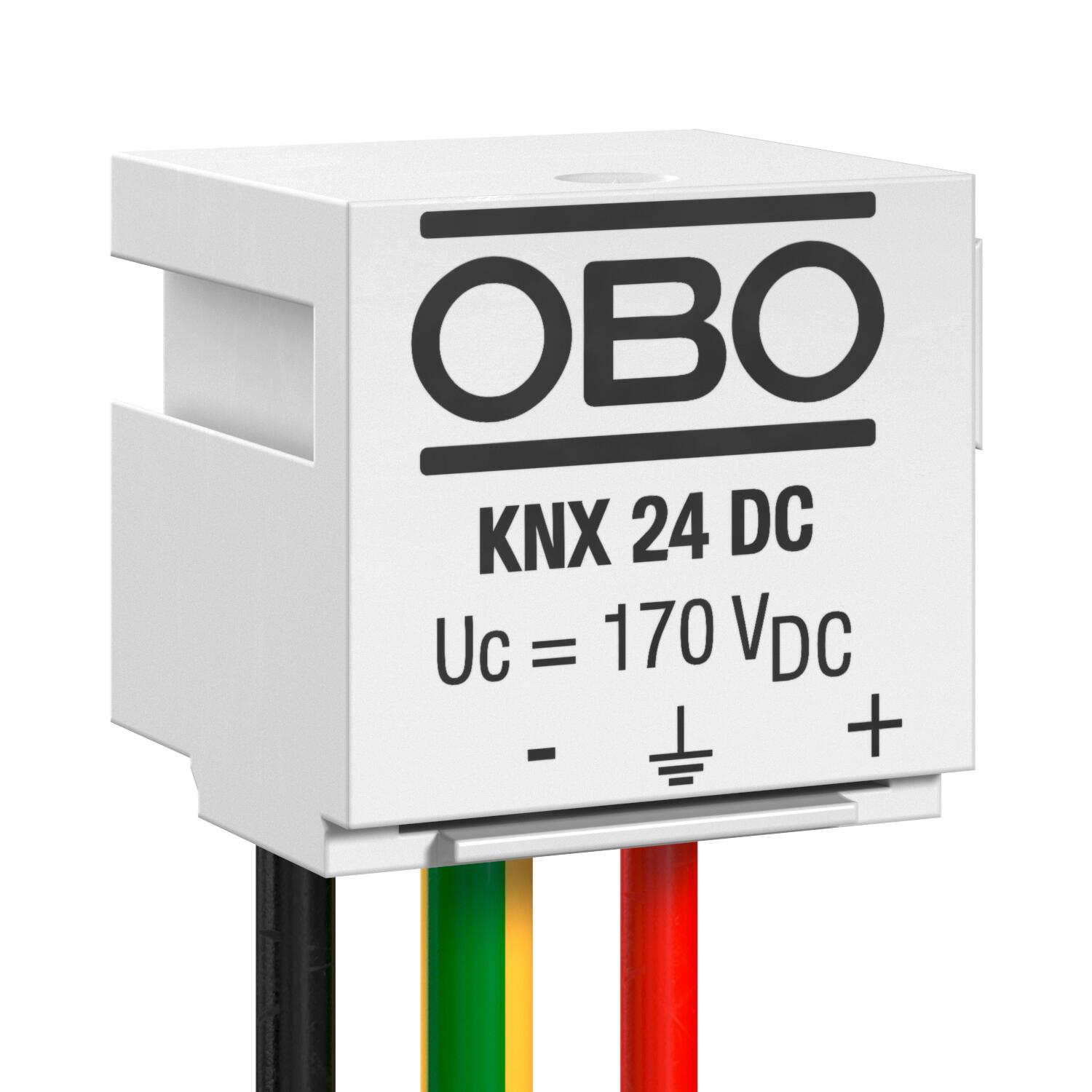

Basis protection for KNX devices

Item no. 5080291 | EAN 4012197504946

5080291 / KNX 24 DC
2
24 V
170 V
Product description
Product description
Lightning barrier for KNX/EIB systems
• Protection in the form of a bus terminal
• Tested to IEC/EN 61643-21
• Cable length: 200 mm
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 3
  • Measuring, controlling and regulating systems
  • Installation electrotechnical expertise
Technical data

Technical data

Cut-off frequency 50 MHz
Dimension 24V
Earthing via: Connection cable
Height 10 mm
Insulation resistance >1 GΩ
Length 11,05 mm
Maximum continuous voltage AC 24 V
Maximum continuous voltage DC 170 V
Nominal discharge current (8/20 µs) 5 kA
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Other
Protection rating IP20
Response time <100 ns
Signalling on device None
SPD to IEC 61643-21 Class I+II+III / D1+C2+C1
Testing standard IEC 61643-21
Total discharge current (10/350) 1 kA
Total discharge current (8/20) 10 kA
Total impulse durability into C2 (8/20) 10 kA
Width 12,6 mm
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Item no. Quantity SSU
KNX 24 DC 2 24 V 170 V 5080291
1 piece
