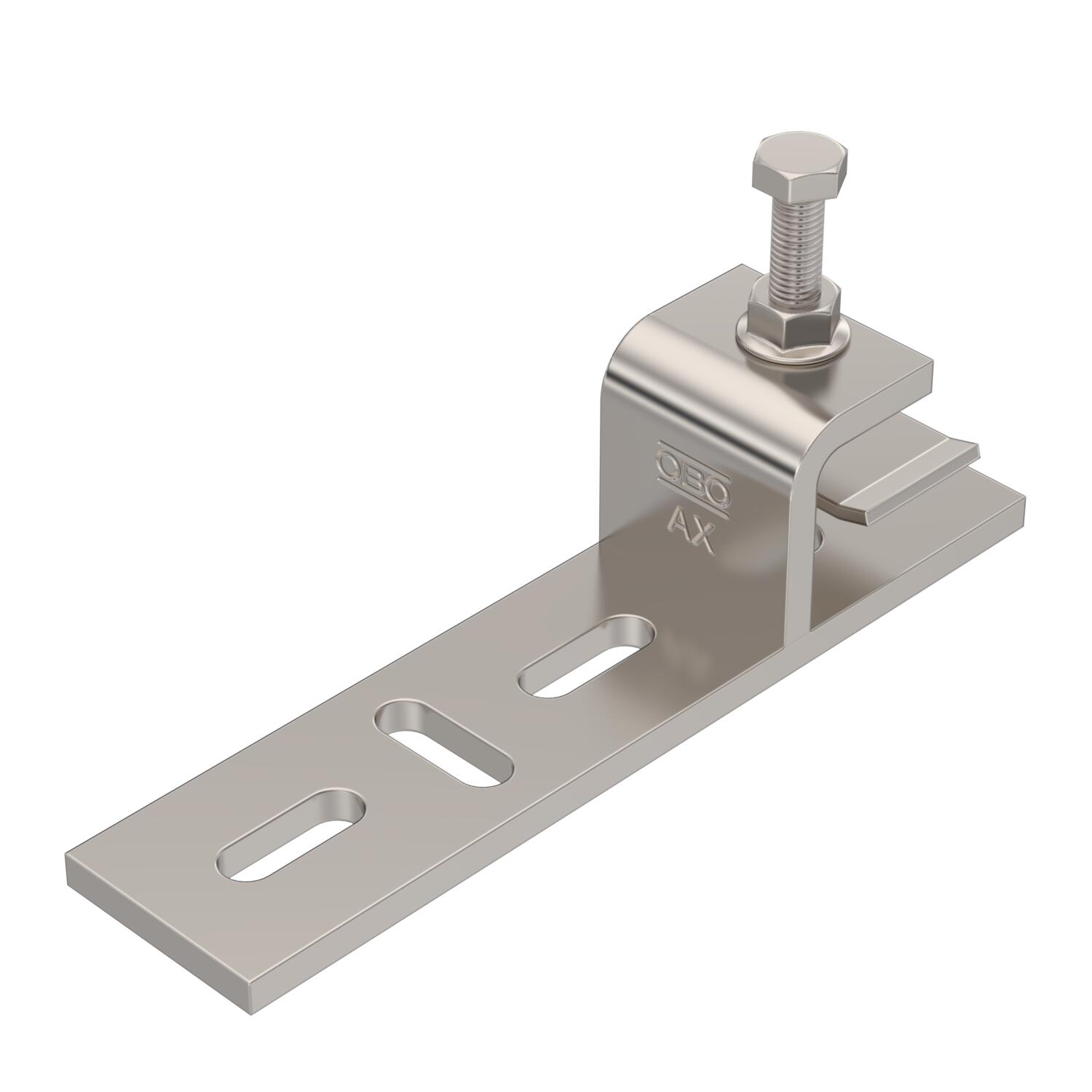

Beam clamp, horizontal A2

Item no. 6003960 | EAN 4012197477585

Product description
Product description
Beam clamp for mounting light components on horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is horizontal.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Colour stainless steel

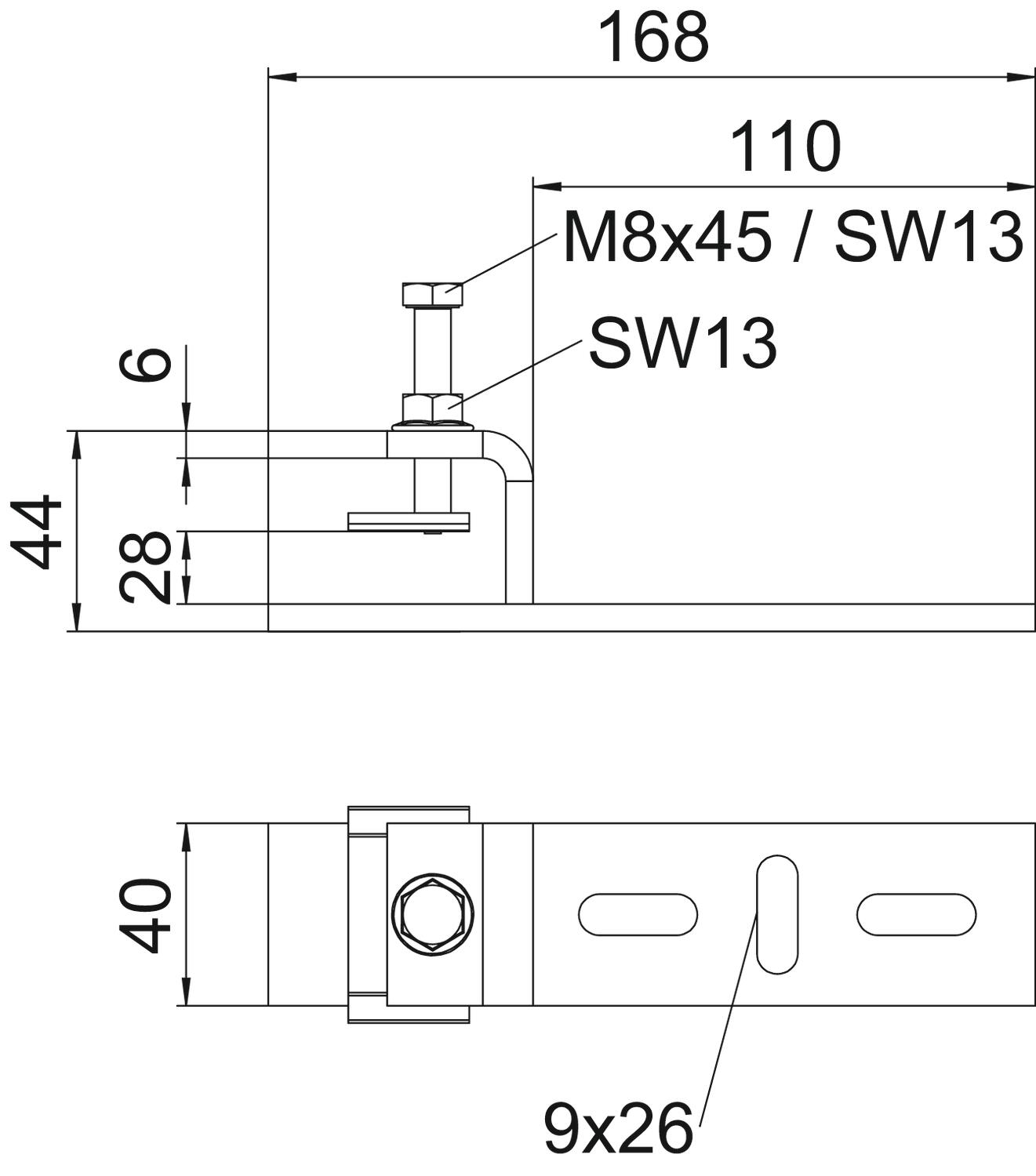

Dimension 168x44x40
Height 32 mm
Length 168 mm
Material Stainless steel 1.4301
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled yes
Surface Bright, treated
Width 110 mm
All types

All types

Types Item no. Quantity SSU
BFK W 100 A2 6003960
1 piece
BFK W 200 A2 6003962
1 piece
BFK W 250 A2 6003964
1 piece
BFK W 300 A2 6003966
1 piece
