Beam clamp horizontal FT
morepic-1 morepic-2

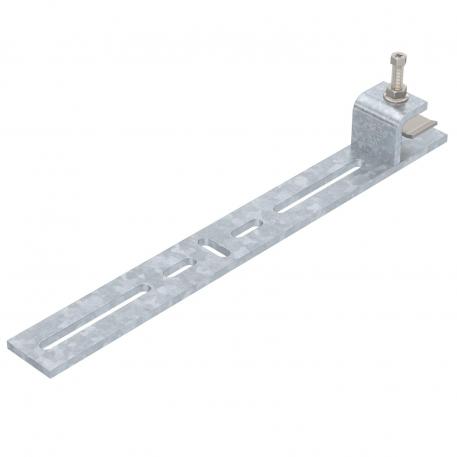

Beam clamp horizontal FT

Item no. 6003922 | EAN 4012197477370

Product description
Product description
Beam clamp for mounting light components on horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is horizontal.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

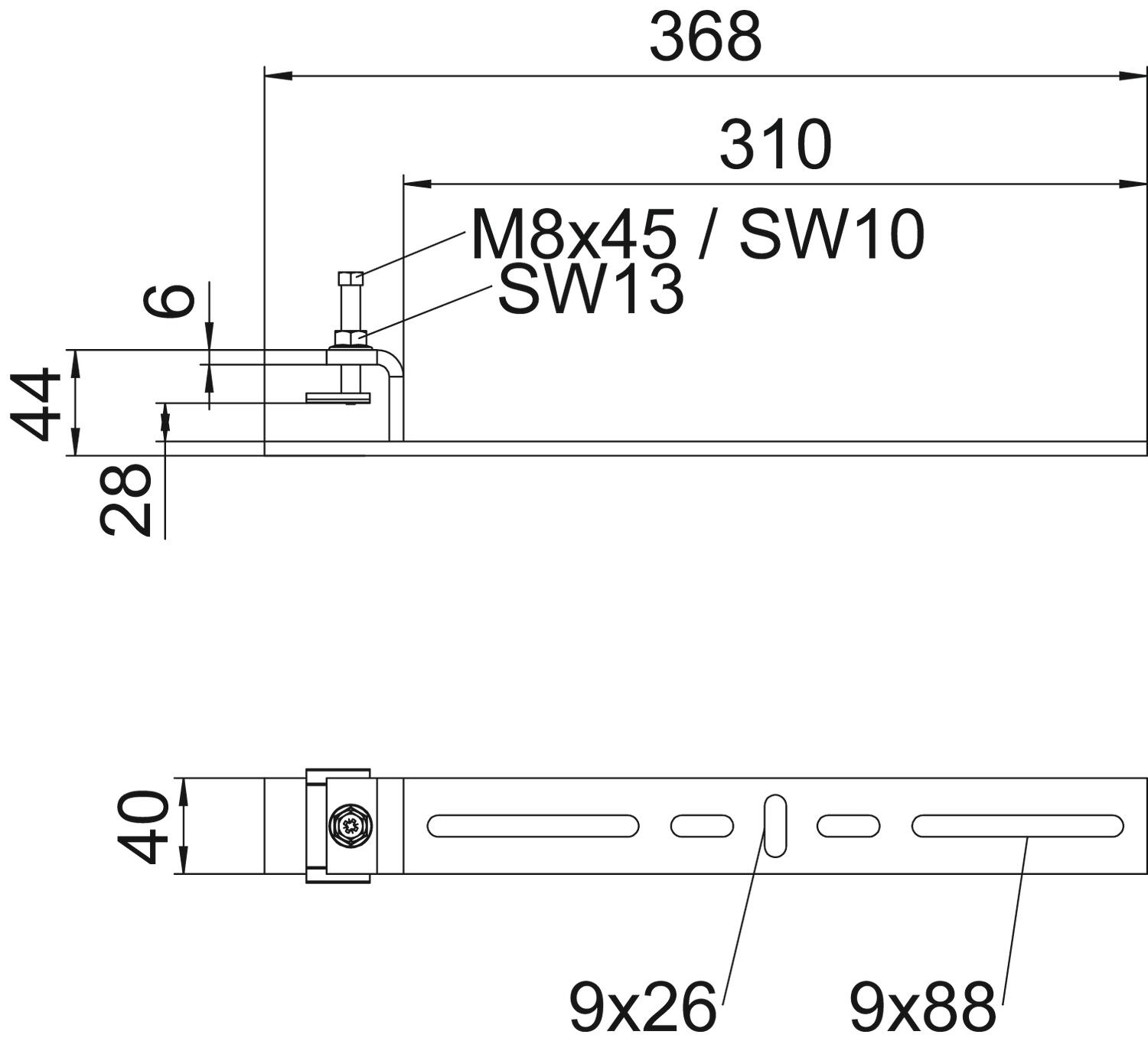

Dimension 368x44x40
Height 32 mm
Length 368 mm
Material Steel
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled no
Surface Hot-dip galvanised
Width 310 mm
All types

All types

Types Item no. Quantity SSU
BFK W 100 FT 6003916
1 piece
BFK W 200 FT 6003918
1 piece
BFK W 250 FT 6003920
1 piece
BFK W 300 FT 6003922
1 piece
Downloads

Download

No invitation to tender text is available for this product.
