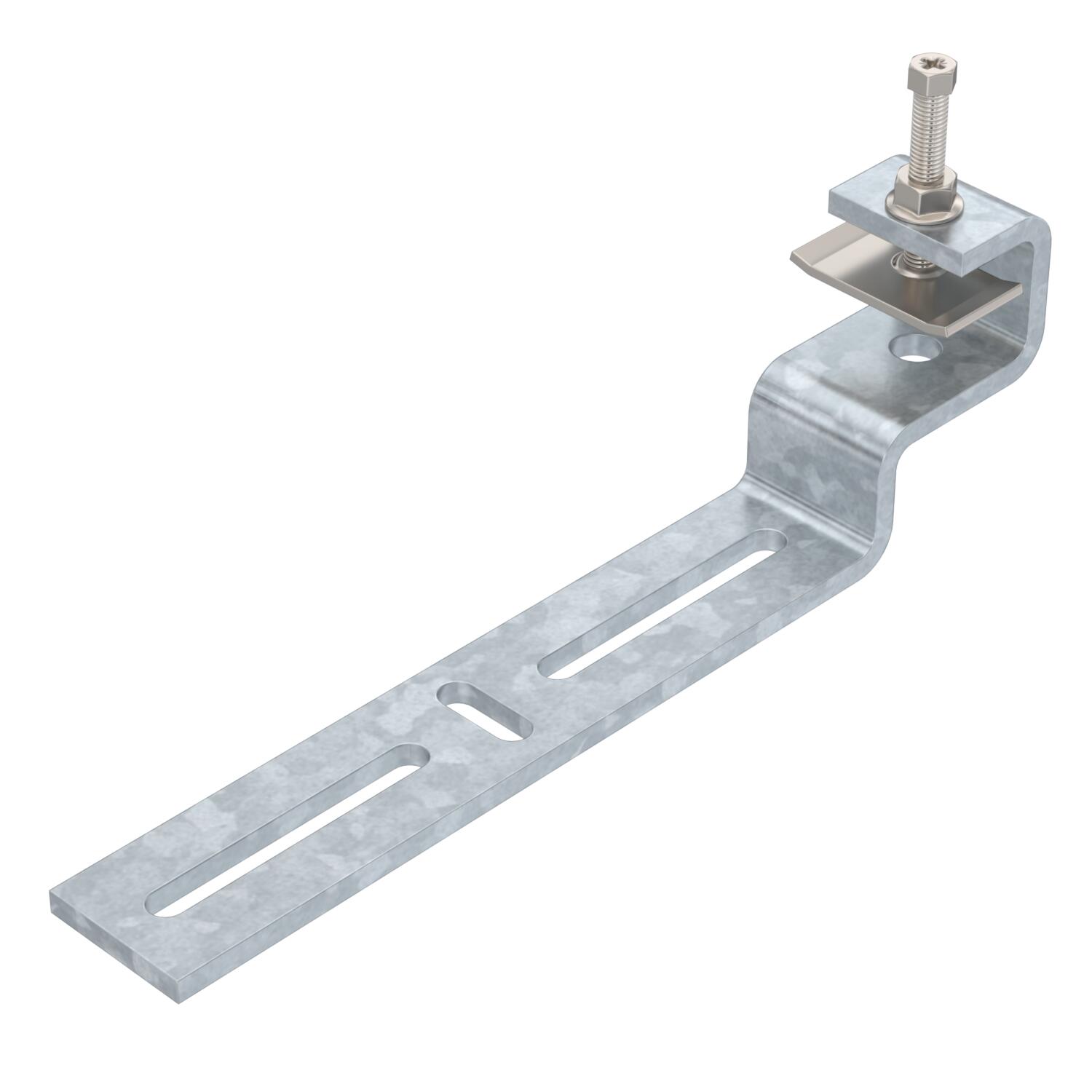

Beam clamp, steel beam outer side FT
morepic-1 morepic-2

Beam clamp, steel beam outer side FT

Item no. 6003932 | EAN 4012197477431

Product description
Product description
Beam clamp for mounting light components on the outer side of vertical or horizontal steel beams. Suitable, for example, for mesh cable trays and cable trays to 200 mm width or clips. The cable tray system attached to the beam clamp can be routed both horizontally and vertically.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

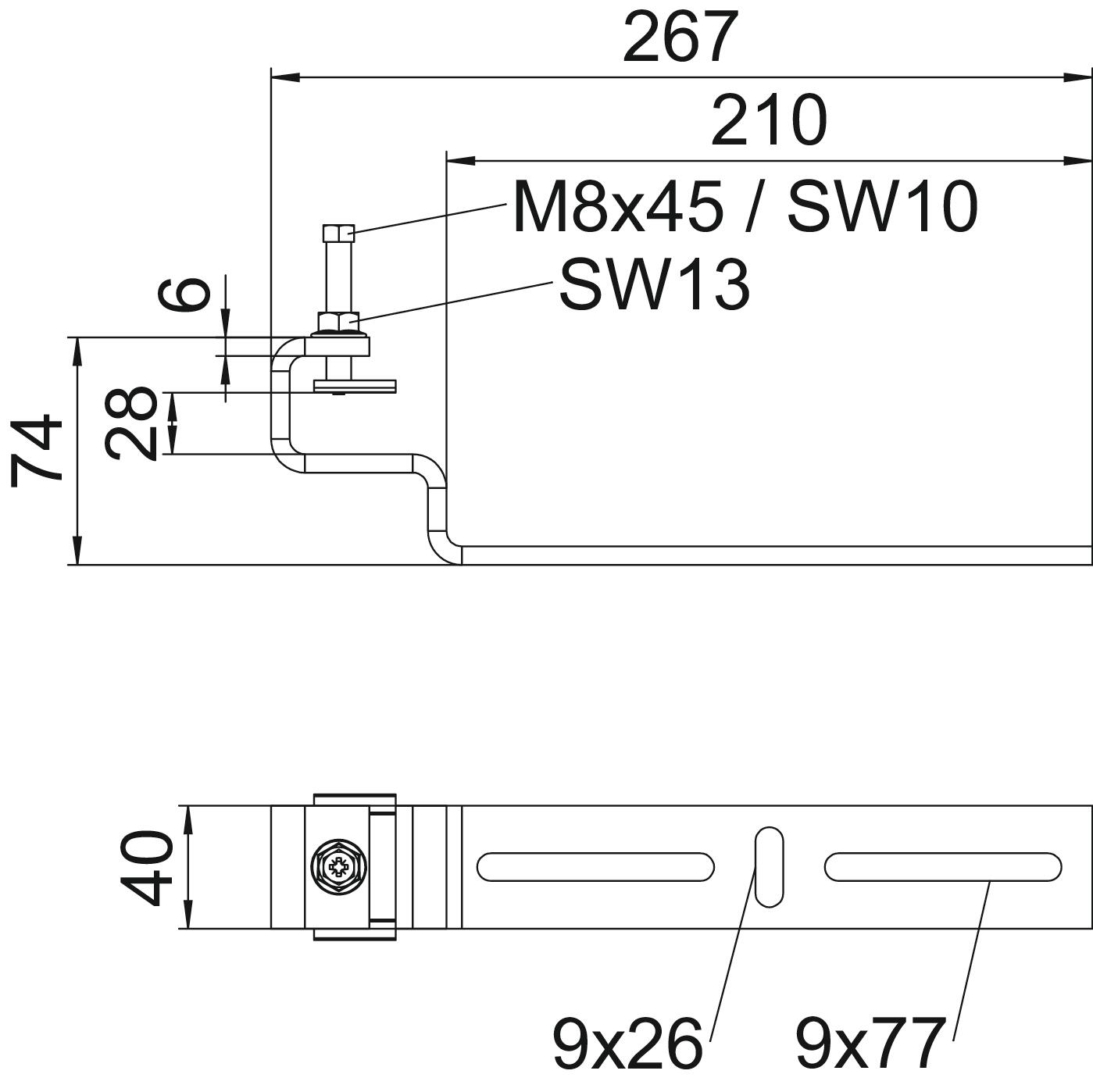

Dimension 253x74x40
Height 62 mm
Length 261 mm
Material Steel
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled no
Surface Hot-dip galvanised
Width 210 mm
All types

All types

Types Item no. Quantity SSU
BFK V 100 FT 6003930
1 piece
BFK V 200 FT 6003932
1 piece
Downloads

Download

No invitation to tender text is available for this product.
