Beam clamp, vertical, A2
morepic-1 morepic-2

Beam clamp, vertical, A2

Item no. 6003950 | EAN 4012197477462

Product description
Product description

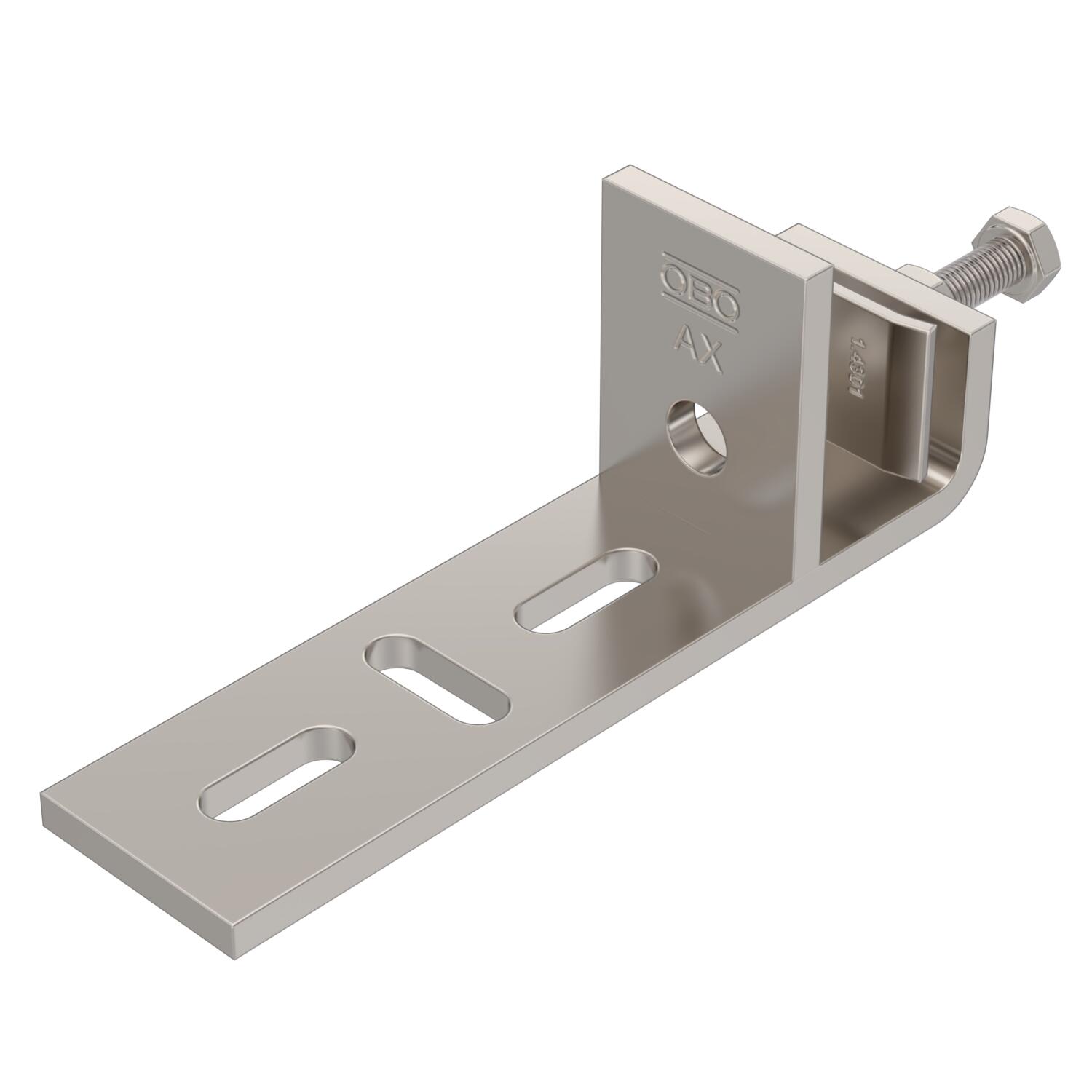

Beam clamp for mounting light components on vertical steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is vertical.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Colour stainless steel
Dimension 154x58x40
Height 58 mm
Length 148 mm
Material Stainless steel 1.4301
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled yes
Surface Bright, treated
Width 110 mm
All types

All types

Types Item no. Quantity SSU
BFK S 100 A2 6003950
1 piece
BFK S 200 A2 6003952
1 piece
BFK S 250 A2 6003954
1 piece
BFK S 300 A2 6003956
1 piece
