Beam clamp vertical FT
morepic-1 morepic-2

Beam clamp vertical FT

Item no. 6003906 | EAN 4012197477226

Product description
Product description

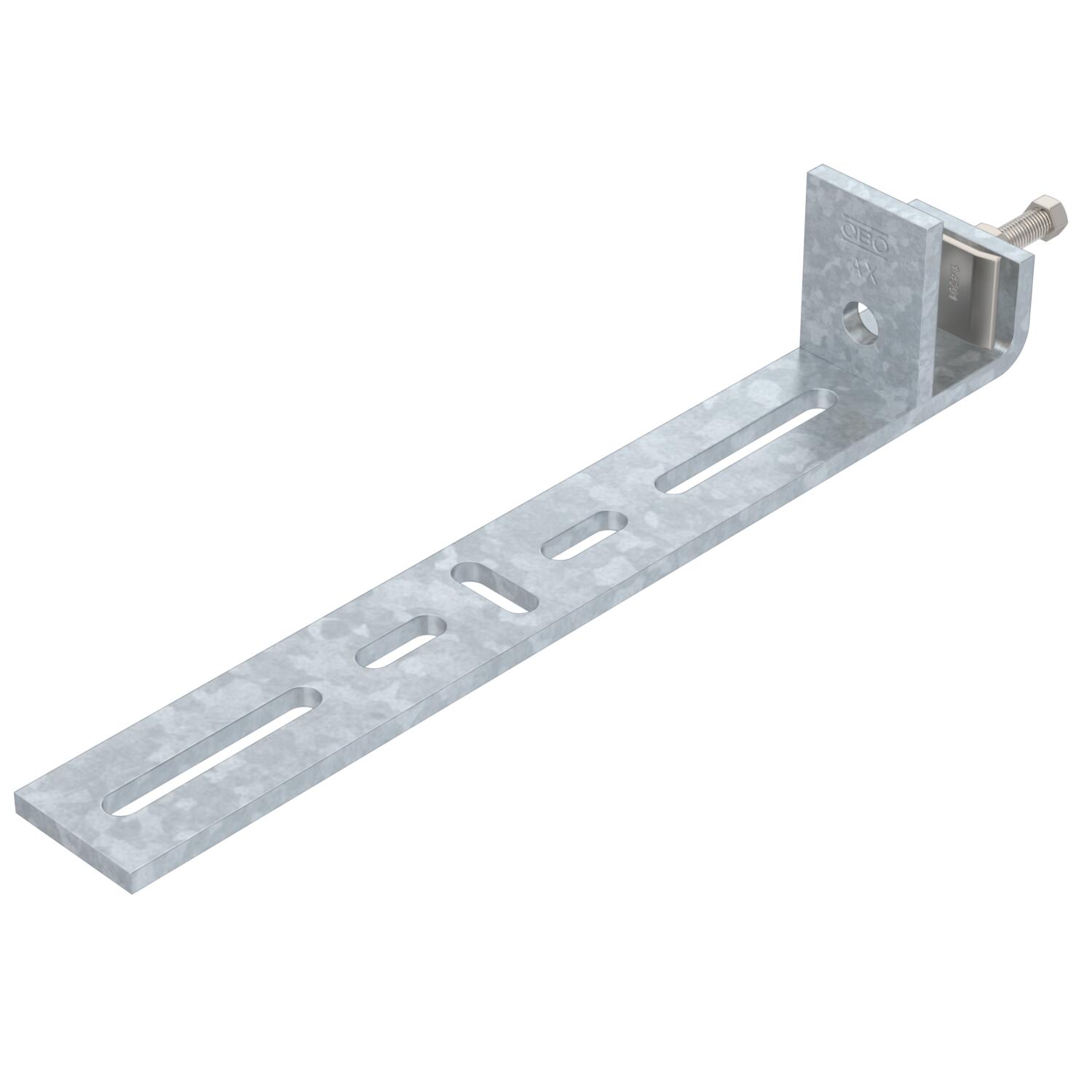

Beam clamp for mounting light components on vertical steel beams. Suitable, for example, for mesh cable trays and cable trays to 300 mm width or clips. The direction of the cable support system attached to the beam clamp is vertical.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

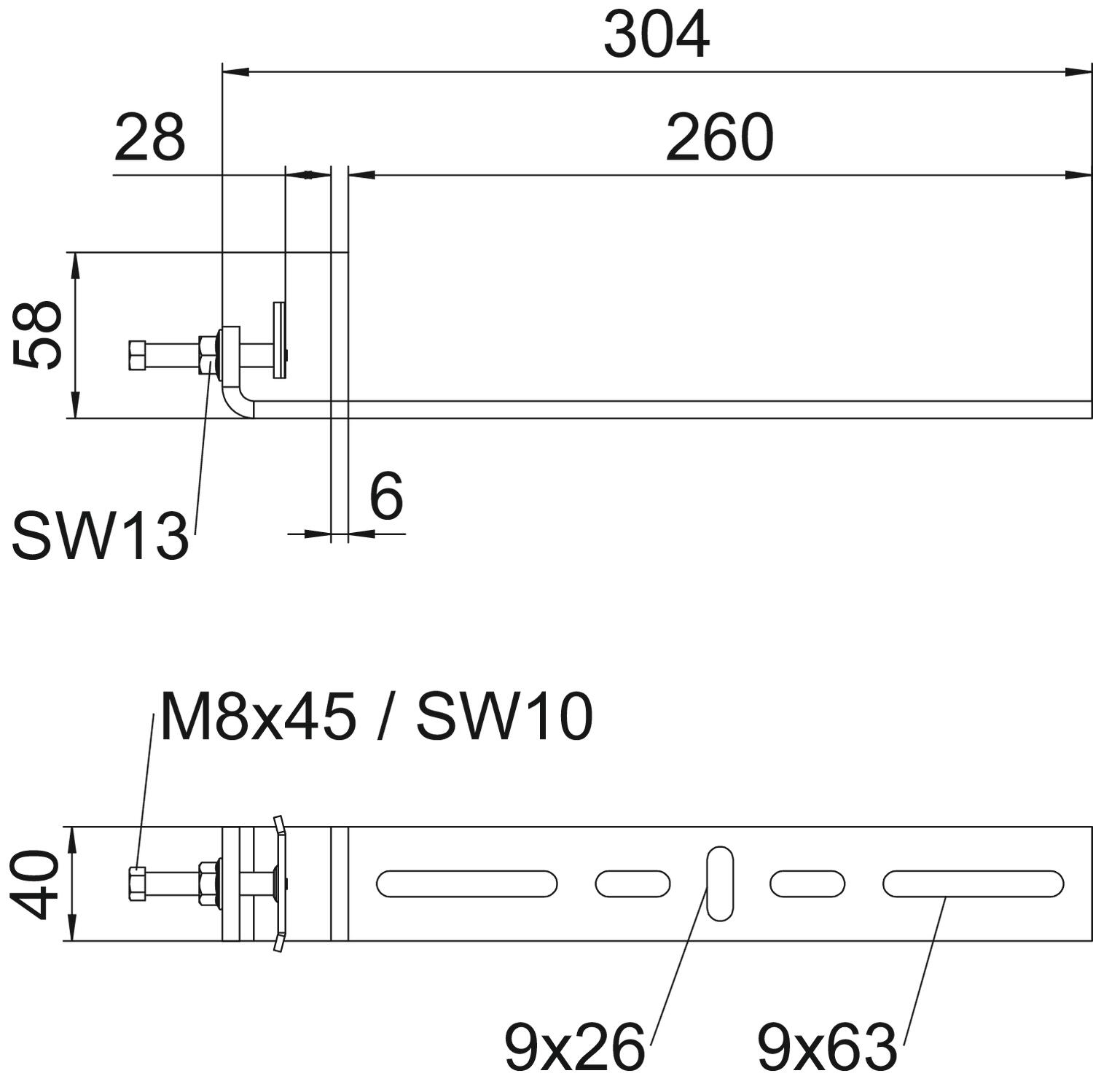

Dimension 304x58x40
Height 58 mm
Length 298 mm
Material Steel
Material thickness 6 mm
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Rustproof steel, pickled no
Surface Hot-dip galvanised
Width 260 mm
All types

All types

Types Item no. Quantity SSU
BFK S 100 FT 6003902
1 piece
BFK S 200 FT 6003904
1 piece
BFK S 250 FT 6003906
1 piece
BFK S 300 FT 6003908
1 piece
Downloads

Download

No invitation to tender text is available for this product.
