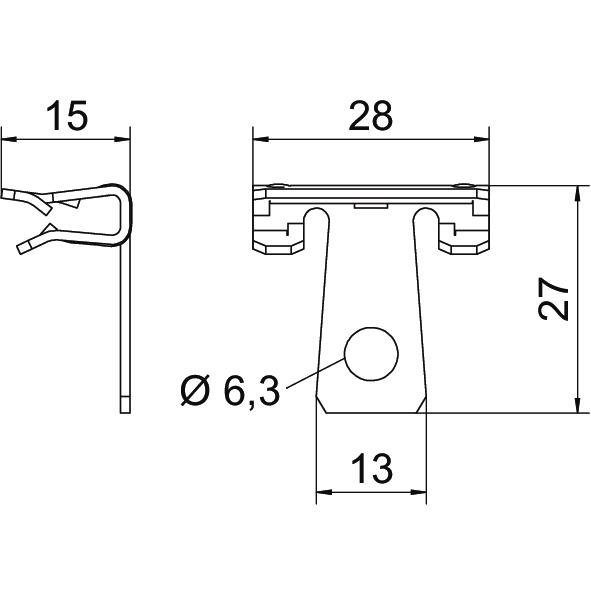

Beam clamp, with fastening hole 27 | 28 | 15 | | | | 27 | 1.5 | 4
morepic-1 morepic-2

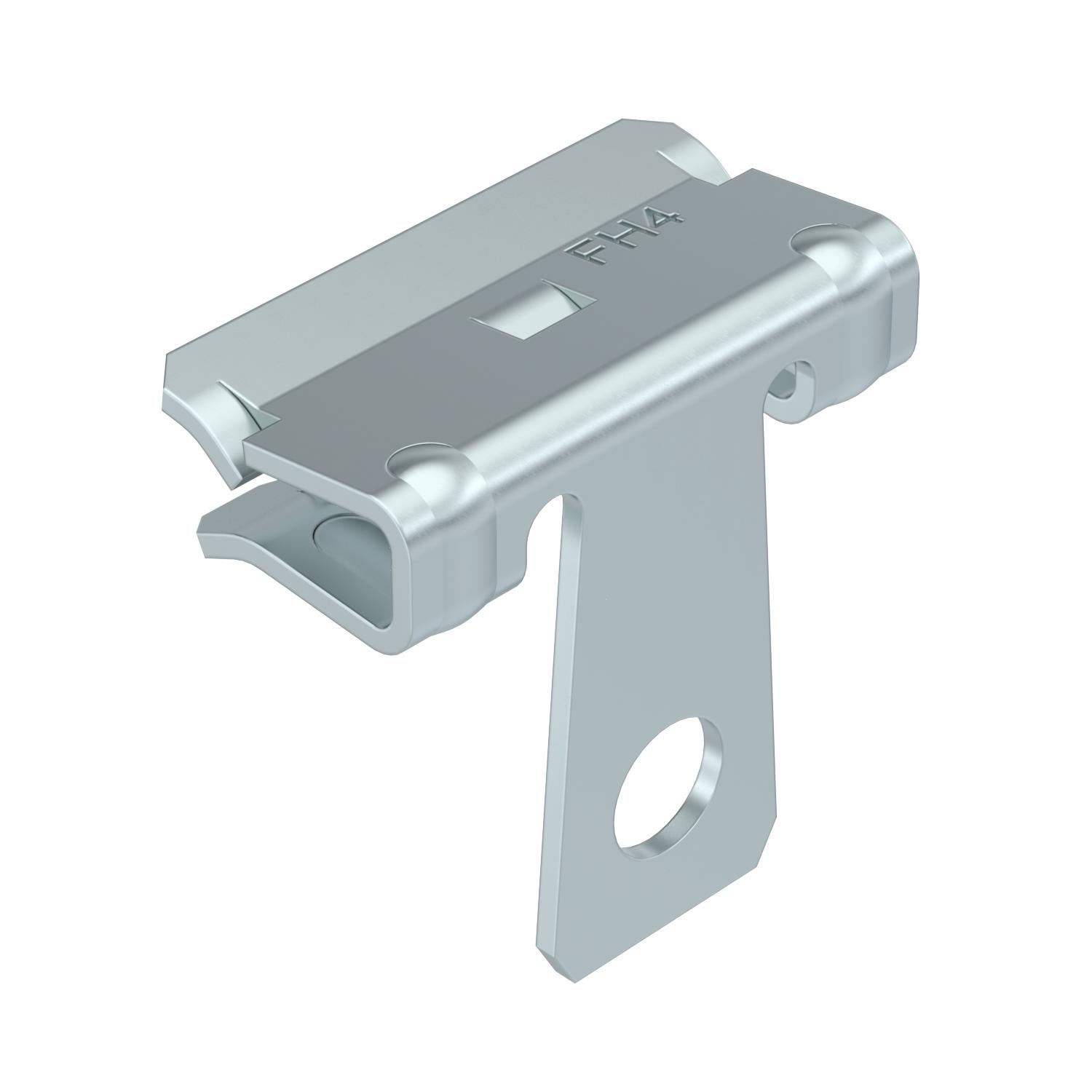

Beam clamp, with fastening hole

Item no. 1488261 | EAN 4012197368722

Product description
Product description
Support clamp with drill hole for individual mounting solutions, e.g. to accept S hooks or chains. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Breaking load 0,45 kN
Colour zinc
Connection type/component Hole
Dimension 1,5-4mm
Dimension L 27 mm
Dimension W 28 mm
Fastening hole 6,5 mm
Fastening type Clamp
Flange thickness F max. 4 mm
Flange thickness F min. 1,5 mm
Height 15 mm
Hinge, adjustable no
Hinged no
Length 27 mm
Material Steel
Surface Zinc slat
Width 28 mm
All types

All types

Types Length Width Height Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SCVH 1,5-4 27 mm 28 mm 15 mm 27 mm 1.5 mm 4 mm 1488261
100 piece
SCVH 4-10 35 mm 40 mm 23 mm 35 mm 4 mm 10 mm 1488263
100 piece
SCVH 10-15 41 mm 40 mm 24 mm 41 mm 10 mm 15 mm 1488265
100 piece
SCVH 15-20 41 mm 40 mm 24 mm 41 mm 15 mm 20 mm 1488267
100 piece
