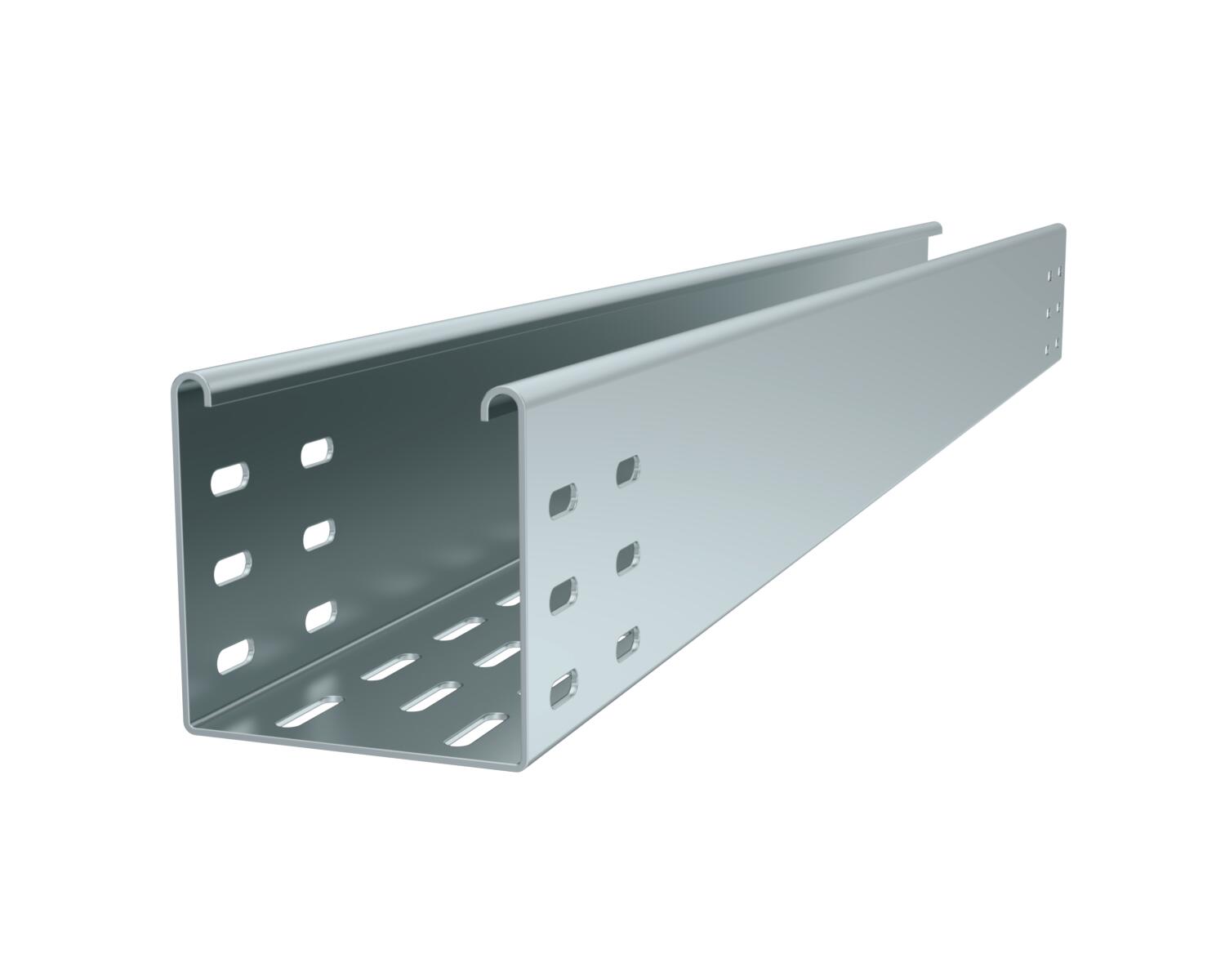

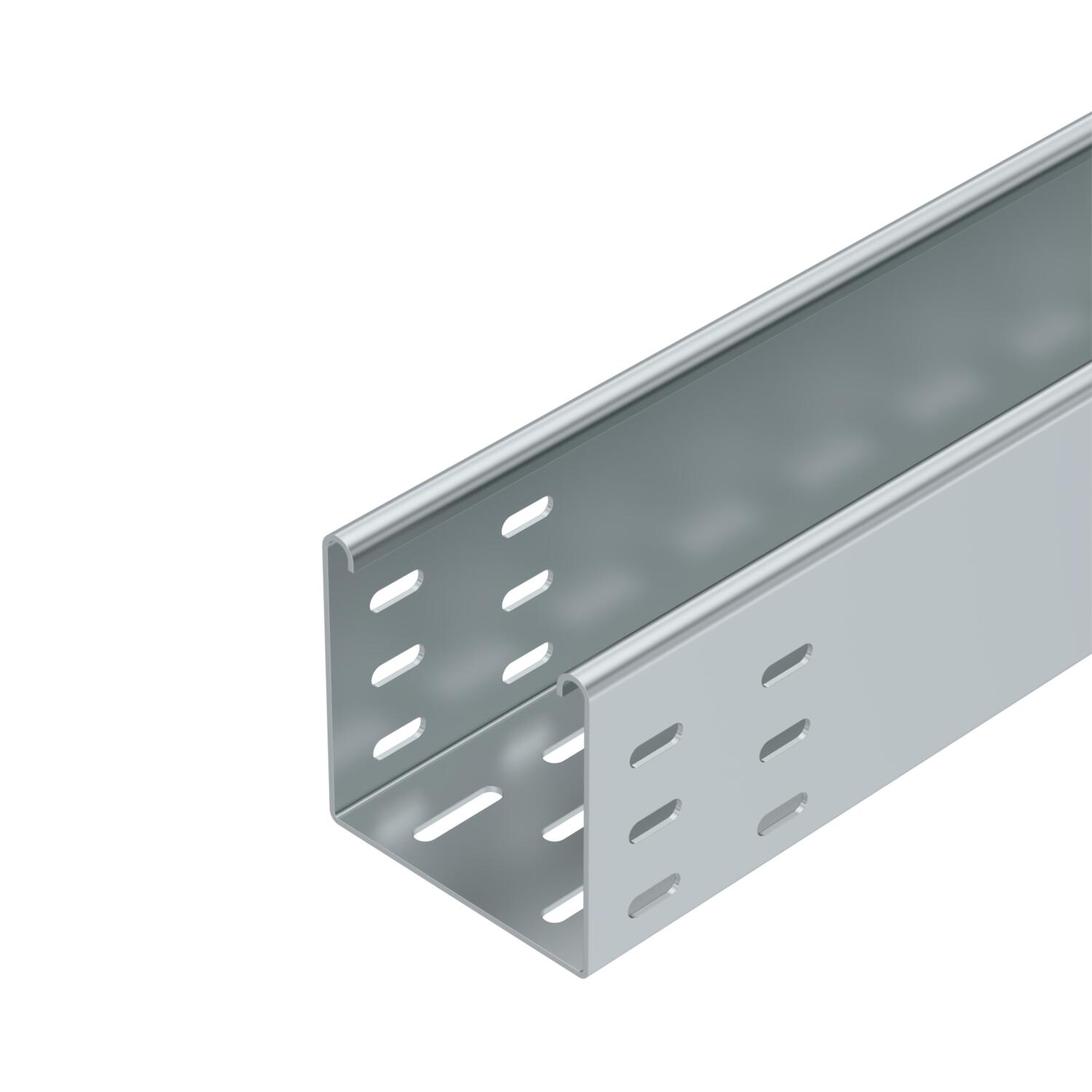

BKRS 100 cable tray, shortened FS
Item no. 6061895 | EAN 4012196714124
- Product description
-
Product descriptionCable tray fitting with shortened length, for creation the of straight sections on walkable cable trays.
-
- Technical data
-
Technical data

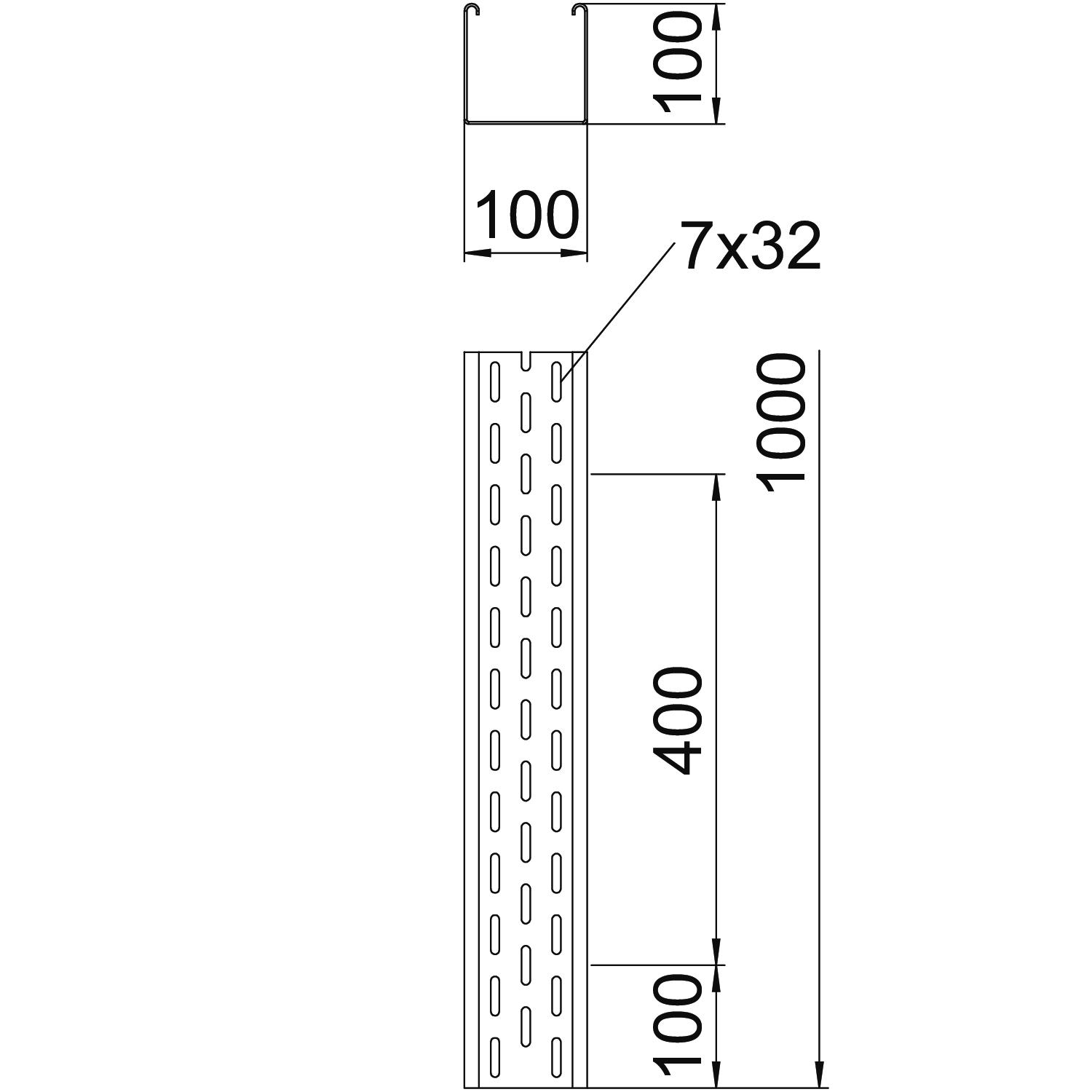

CO2 Footprint (GWP) Cradle-to-Gate 14,3644 kg CO2e / 1 Piece Colour zinc Connector version Without connectors Dimension 100x100x1000 Dimension B 100 mm Dimension H 100 mm Height 100 mm Length 1000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 2 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 8400 mm² Usable cross-section 84 cm² Wide-span version no Width 100 mm Width 100 in With cover no - All types
-
All types
- Downloads
-
Data sheet BKRS 1010 10 FS / 6061895 , 0.17MB , pdfEU declaration of conformity BKRS 1010 10 FS / 6061895 , 0.10MB , pdfREACH Declaration of conformity BKRS 1010 10 FS / 6061895 , 0.12MB , pdfRoHS Declaration of conformity BKRS 1010 10 FS / 6061895 , 0.12MB , pdfEnvironmental Product Declaration (EPD) BKRS 1010 10 FS / 6061895 , 1.48MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
