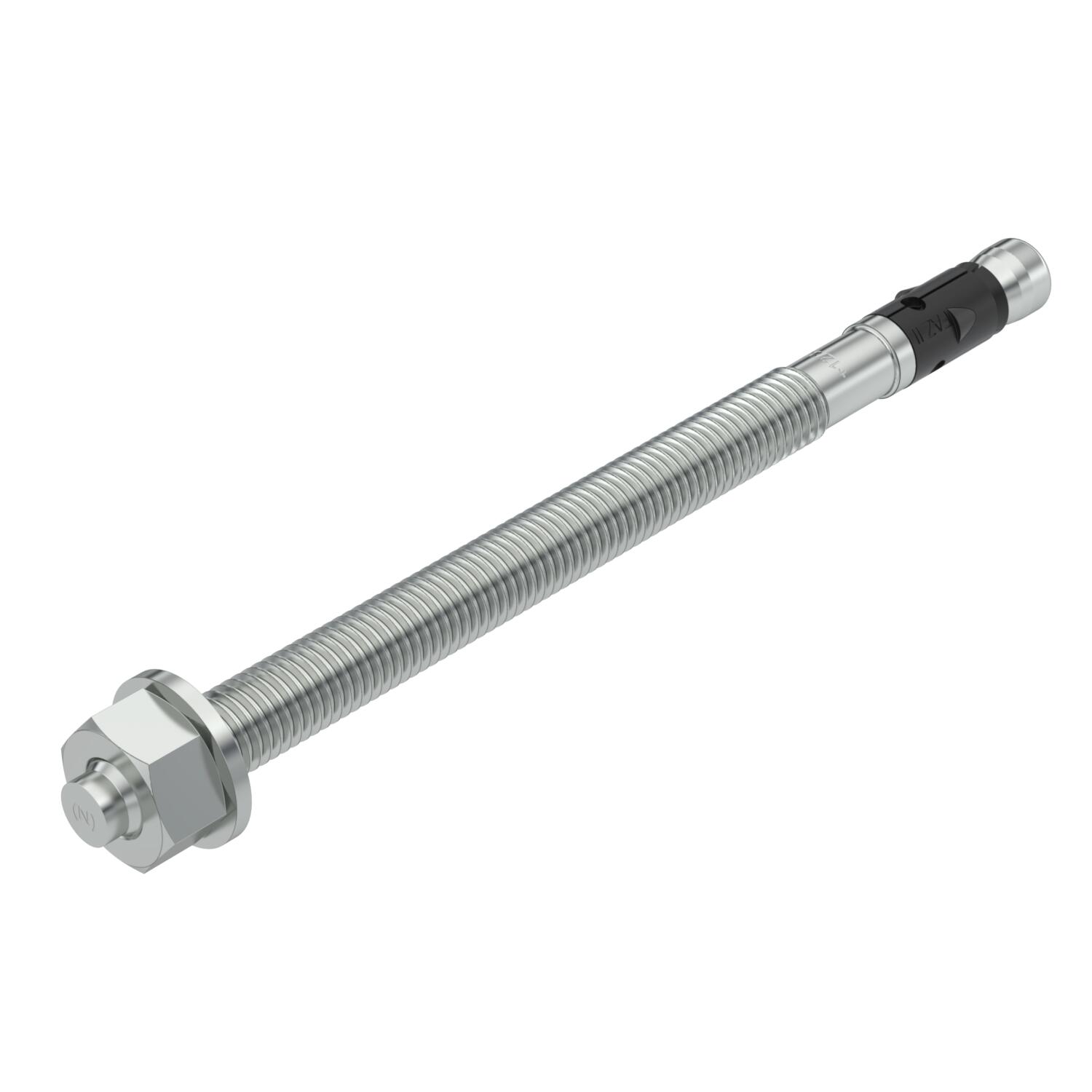

Bolt tie FAZ II P G
Item no. 3498950 | EAN 4012197507251
- Product description
-
Product descriptionBolt tie FAZ II Plus for the anchoring of medium to heavy loads in cracked or uncracked concrete. Suitable for high loads with small edge and axial distances. For knocking in.
European Technical Assessment ETA-99/0520, including characteristic values under fire exposure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
-
- Technical data
-
Technical data
Anchor/nail/bolt version Spreading anchor Approvals available yes Clamping range, max. 45 mm Clamping range, min. 25 mm Clamping strength 25 mm Colour zinc Dimension M16x148 Dimension L 148 mm Drill hole depth 107,5 mm Drill hole diameter, min. 16 mm ETA earthquake rating C1 and C2 Length 148 mm Material Steel Mounting type, anchor, tie Push-through mounting, Pre-mounting, Stand-off mounting Surface Electrogalvanised Thread M16 Thread length 84 mm Thread metric 16 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For pushing in Version, tie Bolt WAF 24 - All types
-
All types
- Downloads
-
Data sheet FAZIIPlus 16/25 / 3498950 , 0.16MB , pdfEU declaration of conformity FAZIIPlus 16/25 / 3498950 , 0.11MB , pdfDeclaration of performance FAZIIPlus 16/25 / 3498950 , 0.98MB , pdfEuropean Technical Assessments fischer Bolzenanker FAZ II Plus , 1.21MB , pdfNo invitation to tender text is available for this product.
