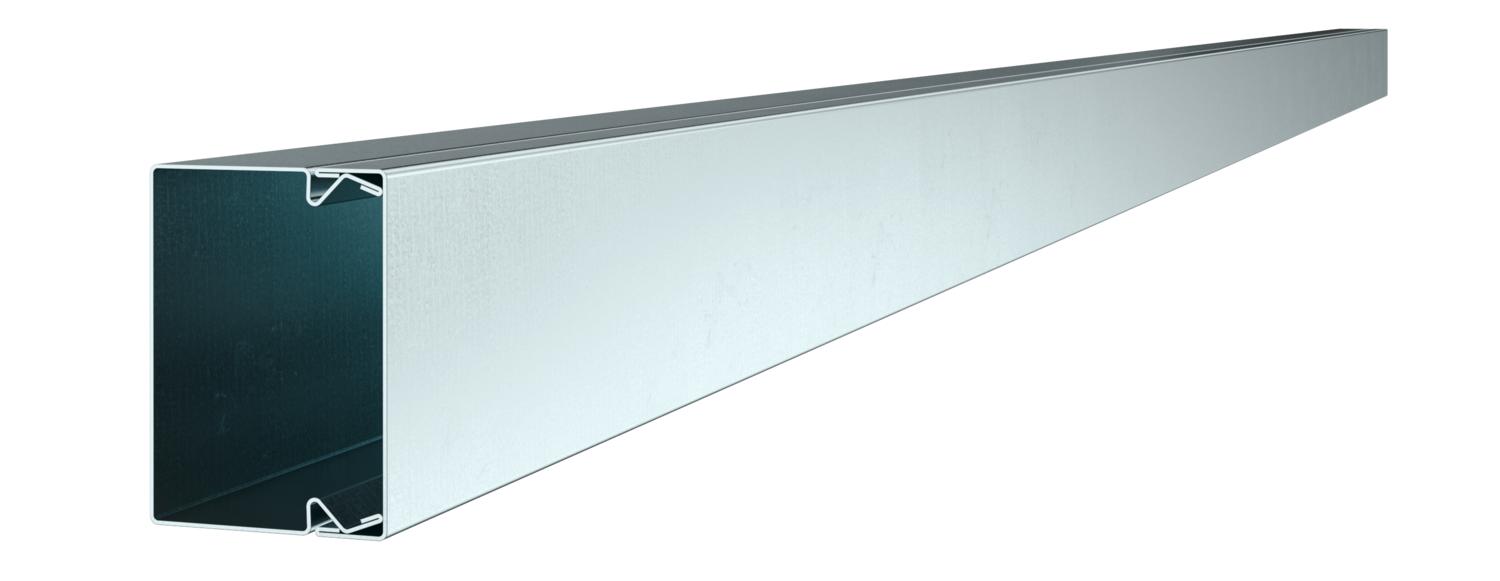

Cable duct, type LKM 40060

Item no. / Types

Length	2000 mm

Width	60 mm

Height	44 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,238 kg CO2e / 1 Meter
Colour	zinc
Delivery on a roll	no
Dimension	40x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	44 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	10
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	10
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	8
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Transparent	no
Usable cross-section	2380 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM40060FS	2000 mm	60 mm	44 mm	Strip galvanized	Steel	6247016	m	2 m
LKM40060RW	2000 mm	60 mm	44 mm	Strip galvanized / plastic coated	Steel	6248519	m	2 m

Accessories

Products	Types	Item no.	Quantity	SSU

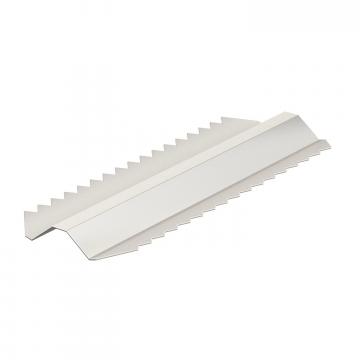

Joint connector LKM SV40	LKM SV40	6247458	piece	10 piece

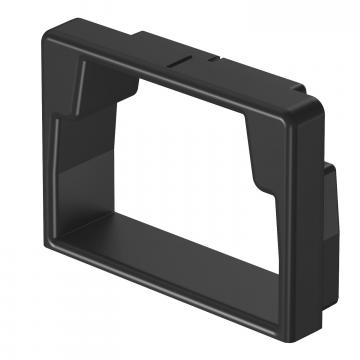

Edge protection ring KSR 40060, for LKM cable duct type 40060	LKM KSR40060	6249750	piece	5 piece

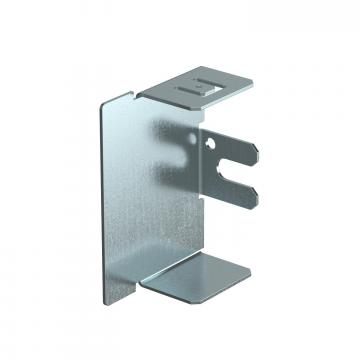

End piece, for cable trunking type LKM 40060	LKM E40060FS	6247903	piece	10 piece
End piece, for cable trunking type LKM 60100	LKM EK40060	6249780	piece	5 piece

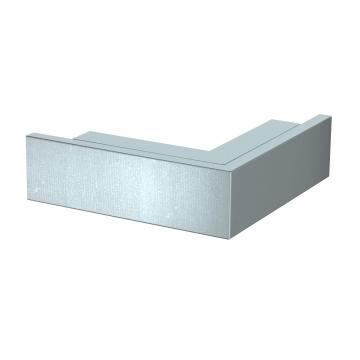

External corner, for cable routing trunking type LKM 40060	LKM A40060FS	6247571	piece	1 piece

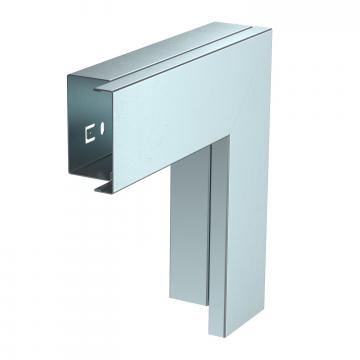

Flat angle, for cable trunking type LKM 40060	LKM F40060FS	6247504	piece	1 piece

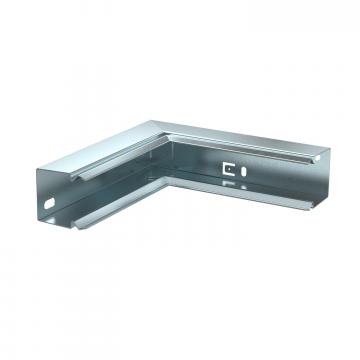

Internal corner, for cable trunking type LKM 40060	LKM I40060FS	6247660	piece	1 piece

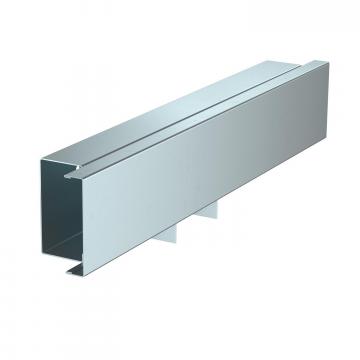

T piece, for cable trunking type LKM 40060	LKM T40060FS	6247733	piece	1 piece
