CO2 Footprint (GWP) Cradle-to-Gate	16,0943 kg CO2e / 1 Meter
Colour	zinc
Connector version	Without connectors
Dimension	200x200x3000
Dimension	200 x 200
Dimension B	200 mm
Height	200 mm
Length	118 ft
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	400 cm²
Usable cross-section	40000 mm²
Wide-span version	no
Width	200 mm
Width	8 in
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MFR 220 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083056	m	3 m
MFR 230 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083060	m	3 m
MFR 240 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083064	m	3 m

Products	Types	Item no.	Quantity	SSU
Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
Straight and angle connector 200 FT	LWVM 200 FT	6083200	piece	2 piece
Cover with turn buckle 200 FT	DMFR 200 FT	6083150	m	3 m

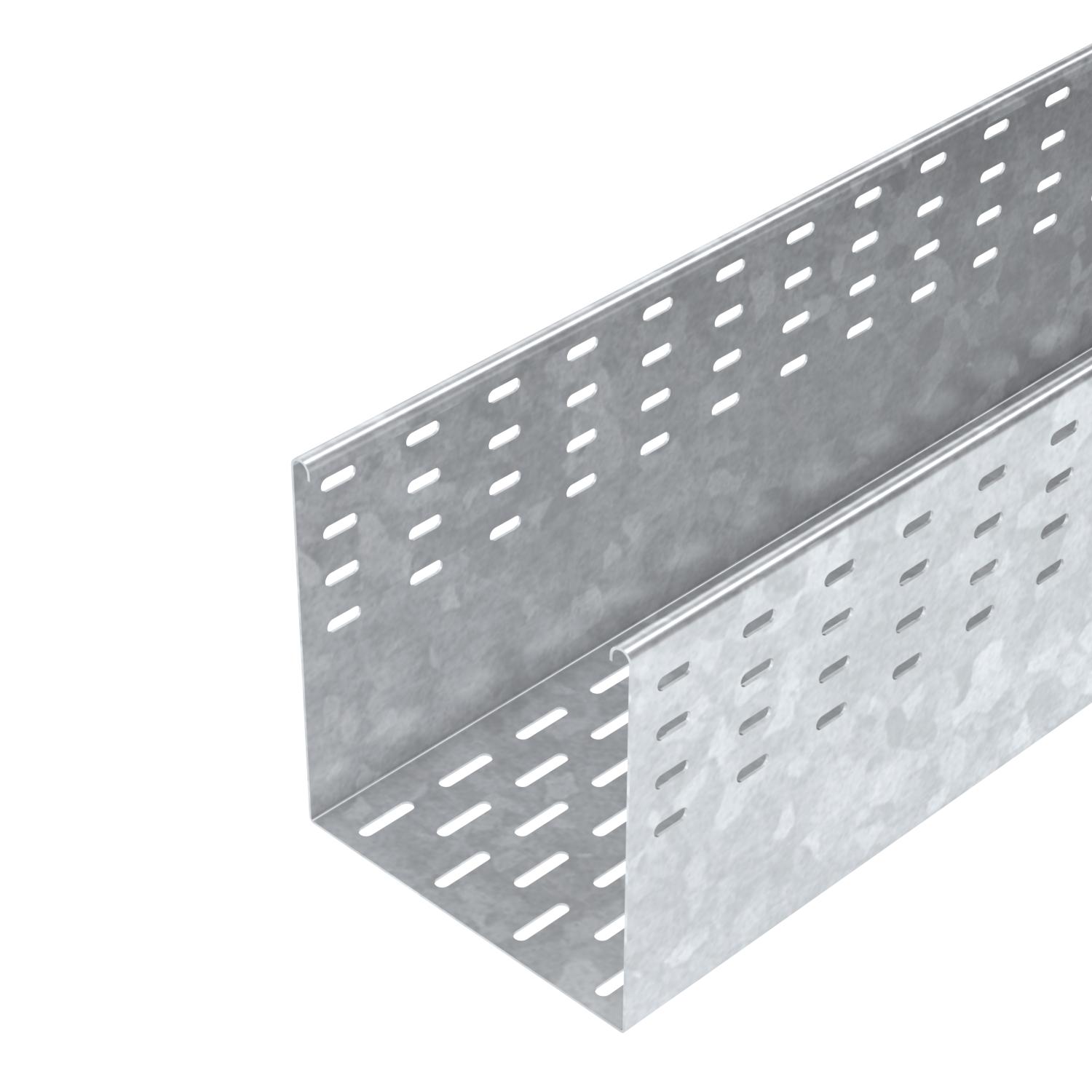

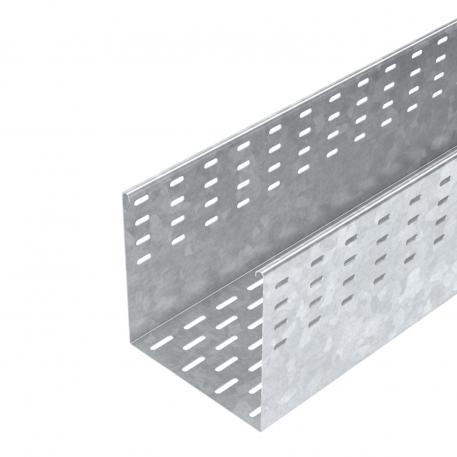

Cable tray MFR 200 FT

All types
