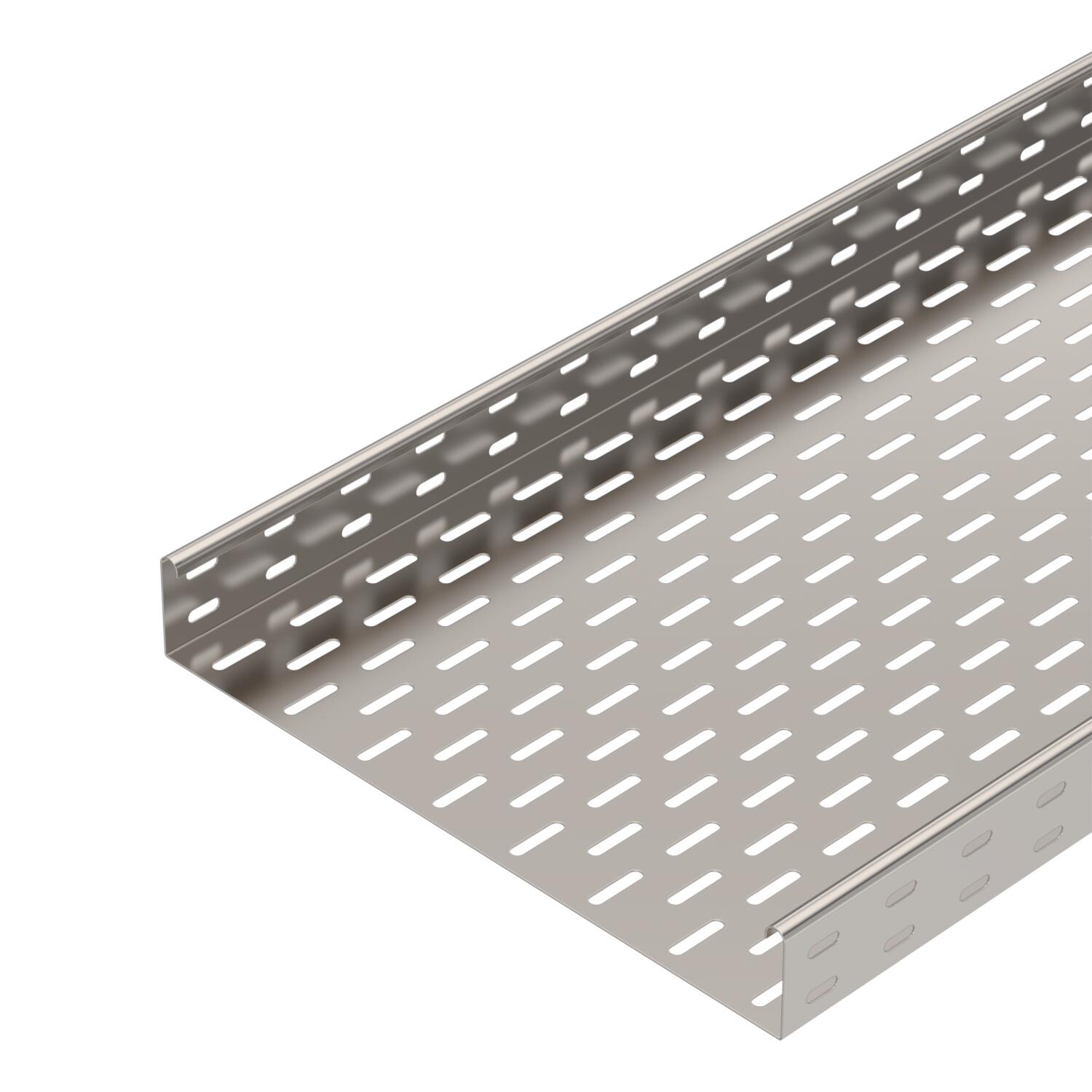

Cable tray MKS 60 A2

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Stainless steel 1.4301

Surface	Bright, treated

Product description

Product description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Connecting parts should be ordered in the appropriate quantity.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	20,5232 kg CO2e / 1 Meter
Colour	stainless steel
Connector version	Without connectors

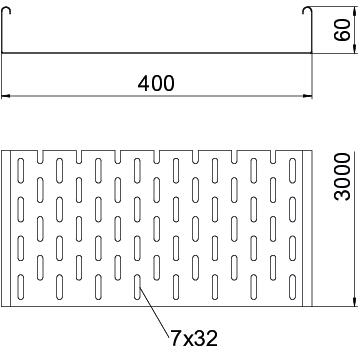

Dimension	60x400x3000
Dimension B	400 mm
Dimension W	400 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel 1.4301
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,04 in

Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	238 cm²
Usable cross-section	23800 mm²
Wide-span version	no
Width	400 mm
Width	16 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 610 A2	3000 mm	100 mm	1 mm	no	Stainless steel 1.4301	Bright, treated	6056016	m	3 m
MKS 620 A2	3000 mm	200 mm	1 mm	no	Stainless steel 1.4301	Bright, treated	6056024	m	3 m
MKS 630 A2	3000 mm	300 mm	1 mm	no	Stainless steel 1.4301	Bright, treated	6056040	m	3 m
MKS 640 A2	3000 mm	400 mm	1 mm	no	Stainless steel 1.4301	Bright, treated	6056059	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A2	RLVK 60 A2	6067654	piece	10 piece
Joint plate A2	SSLB 400 A2	7070369	piece	20 piece
90° bend 60 A2	RB 90 640 A2	6036628	piece	1 piece
Bend, angle-adjustable, 60 A2	RB W 640 A2	6037158	piece	1 piece
Add-on tee 60 A2	RAA 640 A2	6042319	piece	1 piece
T piece 60/400 A2	RT 640 A2	6038166	piece	1 piece
Cross-over 60 A2	RK 640 A2	7027507	piece	1 piece
Cover with turn buckle A2	DRL 400 A2	6052932	m	3 m
Separating retainer 60 A2	TSG 60 A2	6062084	m	3 m
