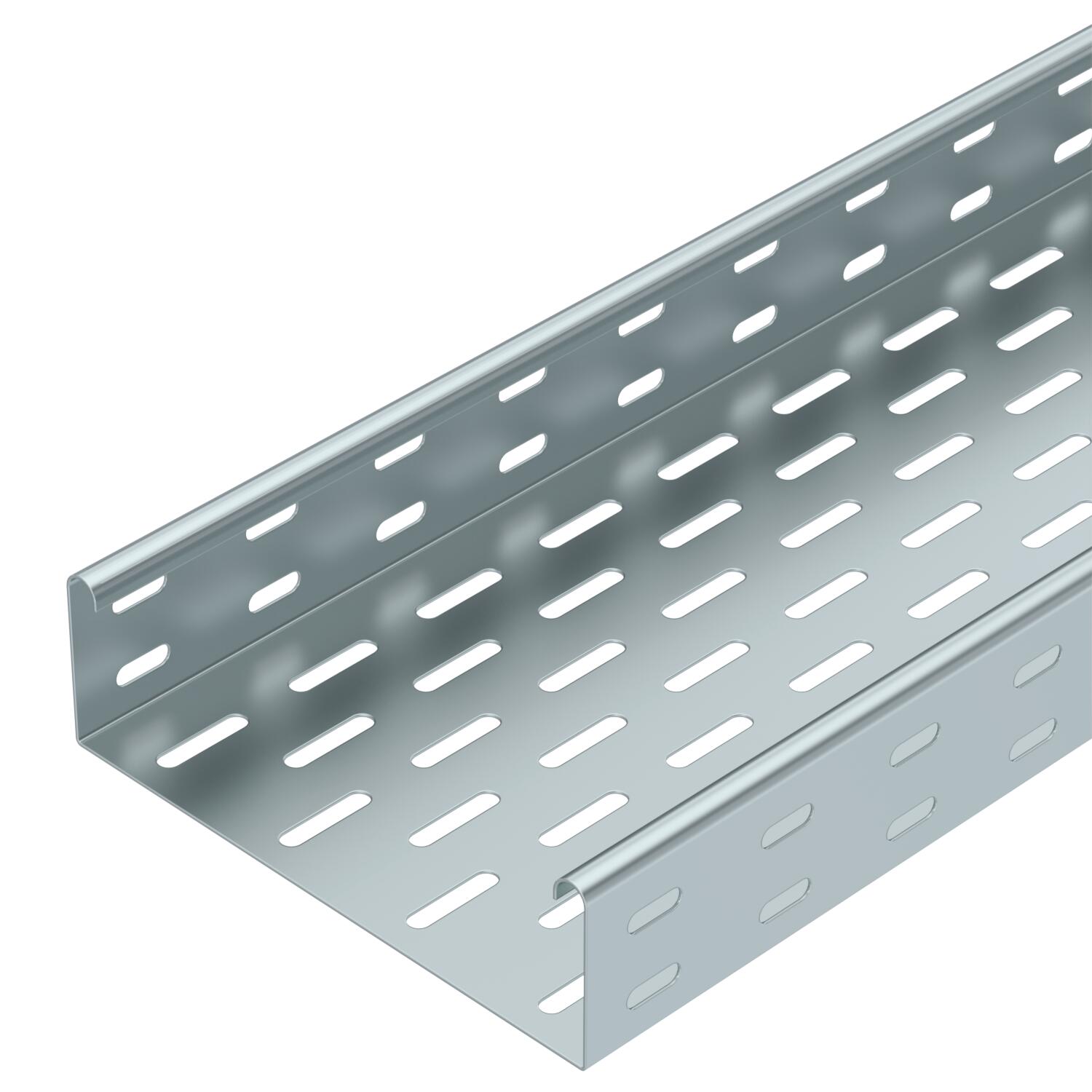

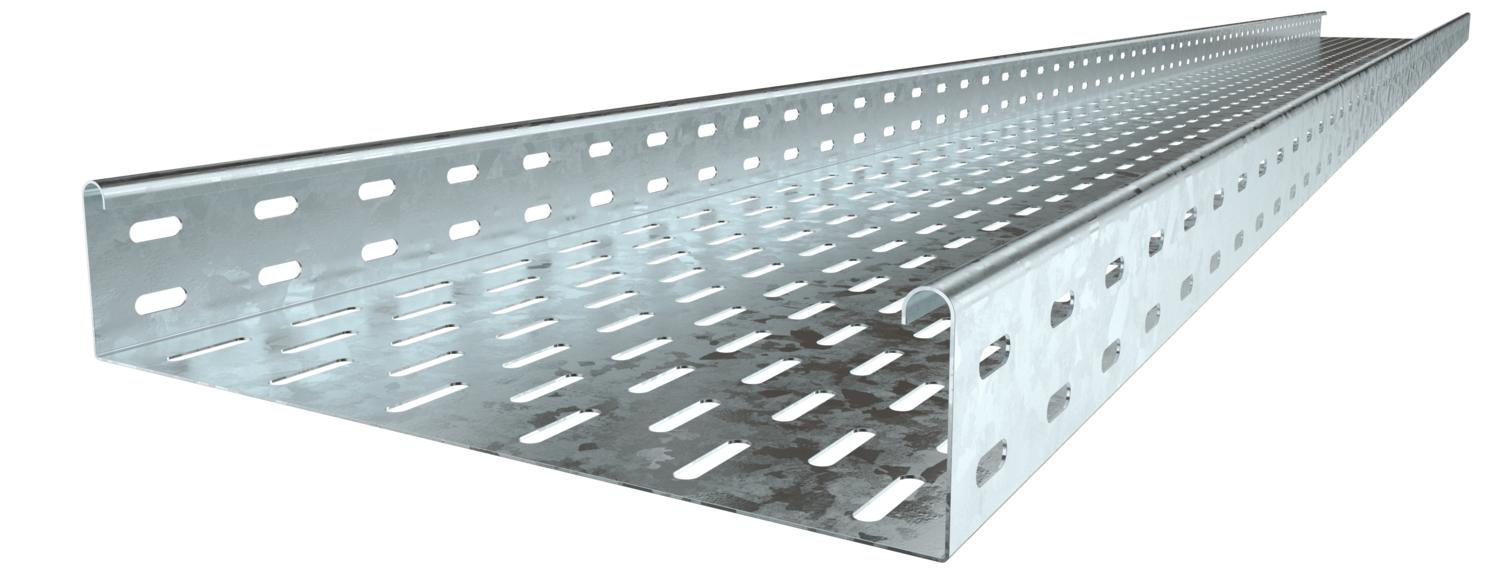

Cable tray MKS 60 FT SOMY

Item no. 7190099 | EAN 4012196017539

3000 mm
1 mm
no
Steel
Hot-dip galvanised 85 µm
Product description

Product description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
Technical data

Technical data

Connector version Supplied connectors

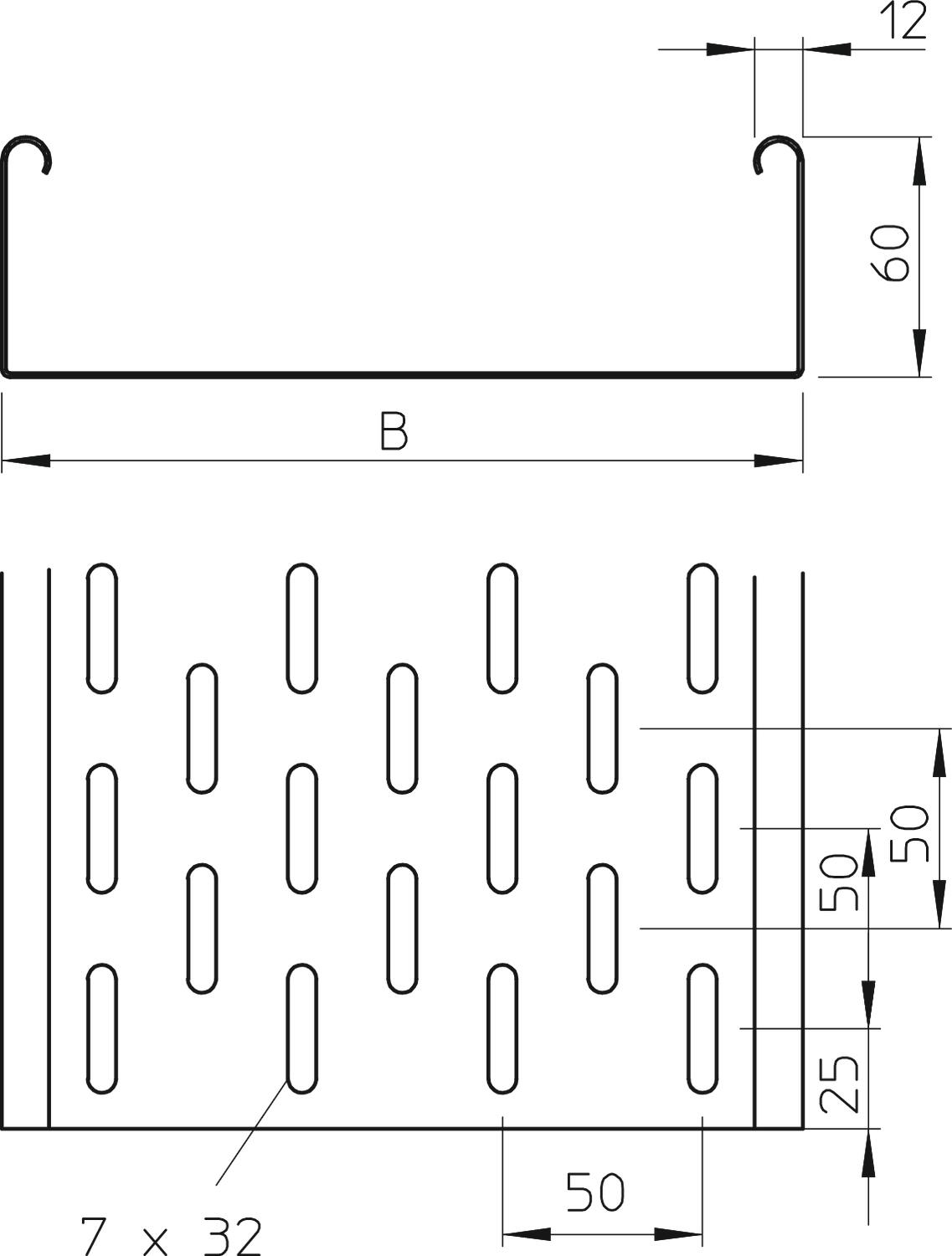

Dimension 60x100x3000
Dimension 60 x 100
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation yes
Surface Hot-dip galvanised 85 µm
Type of connector, cable support system Screwed
Usable cross-section 5800 mm²
Usable cross-section 58 cm²
Wide-span version no
With cover no

Dimensions

Dimension B 100 mm
Height 60 mm
Length 3000 mm
Width 100 mm

Loads

Support spacing 1.5 m 1,5 kN/m
Support spacing 1.75 m 1,25 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,5 kN/m

Technical data

Load diagram, cable tray, type MKS 60

Load diagram, cable tray, type MKS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
MKS 610 FT SO 3000 mm 100 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190099
3 m
MKS 615 FT SO 3000 mm 150 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190101
3 m
MKS 620 FT SO 3000 mm 200 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190103
3 m
MKS 630 FT SO 3000 mm 300 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190107
6 m
MKS 640 FT SO 3000 mm 400 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190109
6 m
MKS 660 FT SO 3000 mm 600 mm 1 mm no Steel Hot-dip galvanised 85 µm 7190111
6 m
